Quick Details
-
Table Travel (Z) (mm):
-
150
-
Cutting Accuracy(mm):
-
±0.05
-
Brand Name:
-
Forplus
-
Voltage:
-
220V50HZ
-
Dimension(L*W*H):
-
height:2250mm
-
Weight (KG):
-
000 KG
-
Applicable Industries:
-
Mining, petroleum extraction, Roads,railways, and tunnels, aerospace, and ships, robotic automation
-
Transmission mode:
-
ball screw,linear guide rail
-
Positioning accuracy:
-
±0.05mm
-
Re-positioning accuracy:
-
±0.05mm
-
Max no-load speed:
-
10M/min
Quick Details
-
Place of Origin:
-
Chongqing, China
-
Table Travel (X) (mm):
-
1500
-
Table Travel (Y) (mm):
-
2000
-
Table Travel (Z) (mm):
-
150
-
Cutting Accuracy(mm):
-
±0.05
-
Brand Name:
-
Forplus
-
Voltage:
-
220V50HZ
-
Dimension(L*W*H):
-
height:2250mm
-
Weight (KG):
-
000 KG
-
Applicable Industries:
-
Mining, petroleum extraction, Roads,railways, and tunnels, aerospace, and ships, robotic automation
-
Transmission mode:
-
ball screw,linear guide rail
-
Positioning accuracy:
-
±0.05mm
-
Re-positioning accuracy:
-
±0.05mm
-
Max no-load speed:
-
10M/min
Products Description
1.Standard double gantry structure,heat treatment for eliminating stress,stable without deformation,longlife time.
2.Strong expansibility.Modular design of machine tool,unified interface.for each installed module，Various modules can be flexibly configured.
including but not limited to machine body,fully enveloped module,automatic lifting module,turning table,3-axis and 5-axis cutting head assembly,various auxiliary spindles,automatic abrasive supply module, quantitative abrasive removal module,and swirl abrasive removal module etc.
Including but not limited to height detection,grating scale，angle detection, drilling,level regulating water tank etc.
3.Servo motor drive for the whole machine，Bus access absolute value encoder servo motor for the whole machine,with high quality ball screw transmission structure.
4.Standard Italy ECS professional water jet cutting CNC control system.
5.Double-layer protection for transmission mechanism,isolating water and abrasive.

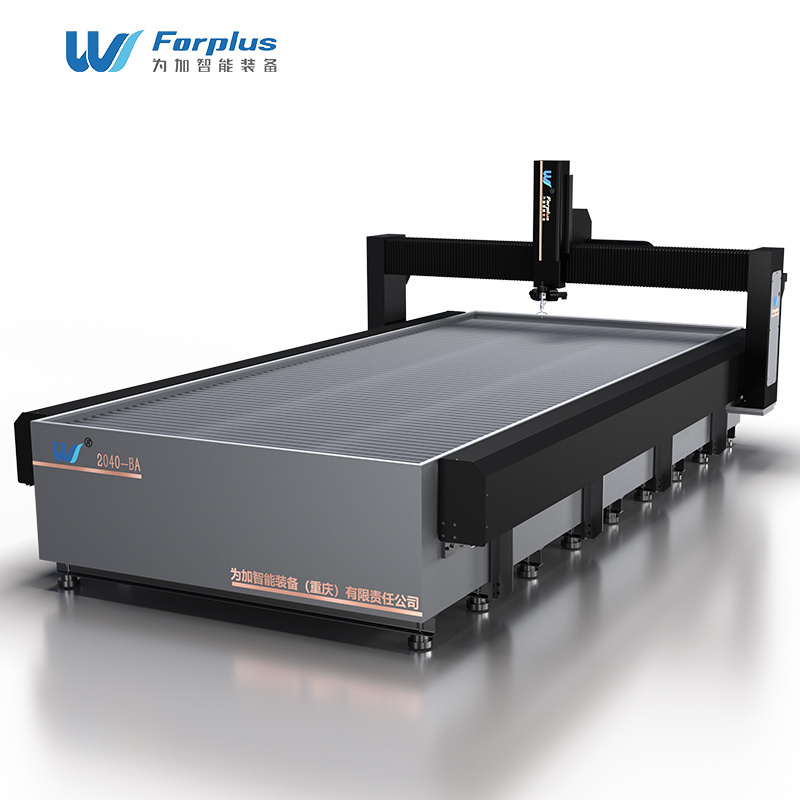

Standard double gantry structure
heat treatment for eliminating stress,stable without deformation,longlife time.
Transmission structure is
double-layer protection
X, Y, Z axis is designed with double sealing, external steel shell and high quality dust folding cloth are adopted, which can provide effective hard protection and full sealing for
the machine, and it is the current effective sealing form of waterjet cutting machine.
CNC control system
Standard Italian ECS Professional waterjet cuting CNC control system.Servo-motor drive for the whole machine,Absolute value encoder closed-loop control.High precision, reliable control, and simple connection.
Products Parameters
|
Forplus standard waterjet cutting platform
|
|
|
|
|
||||
|
Model
|
|
Forplus-L1520-Z150
|
|
|
||||
|
X、Y、Z travel
|
|
1500mm、2000mm、150mm
|
|
|
||||
|
Machine structure
|
|
gantry structure
|
|
|
||||
|
Transmission mode
|
|
ball screw,linear guide rail
|
|
|
||||
|
Positioning accuracy
|
|
±0.05mm
|
|
|
||||
|
Re-positioning accuracy
|
|
±0.05mm
|
|
|
||||
|
Max no-load speed
|
|
10M/min
|
|
|
||||
|
Abrasive feeding system
|
|
continuous abrasive feeding module
|
|
|
||||
|
Abrasive removal system
|
|
spiral-flow type auto abrasive removal system
|
|
|
||||
|
Cutting head assembly
|
|
standard 3-axis,AC centring 5-axis,AC standard 5 axis (optional)
|
|
|
||||
|
Water tank platform
|
|
linear grid,corrugated grid,honeycomb (optional)
|
|
|
||||
|
Height measurement
|
|
laser-measurement
|
|
|
||||
|
Power requirement of electric cabinet
|
|
single phase 220V 50HZ
|
|
|
||||
|
Compressed air pressure
|
|
≥5bar
|
|
|
||||
|
Compressed air caliber
|
|
φ12mm
|
|
|
||||
