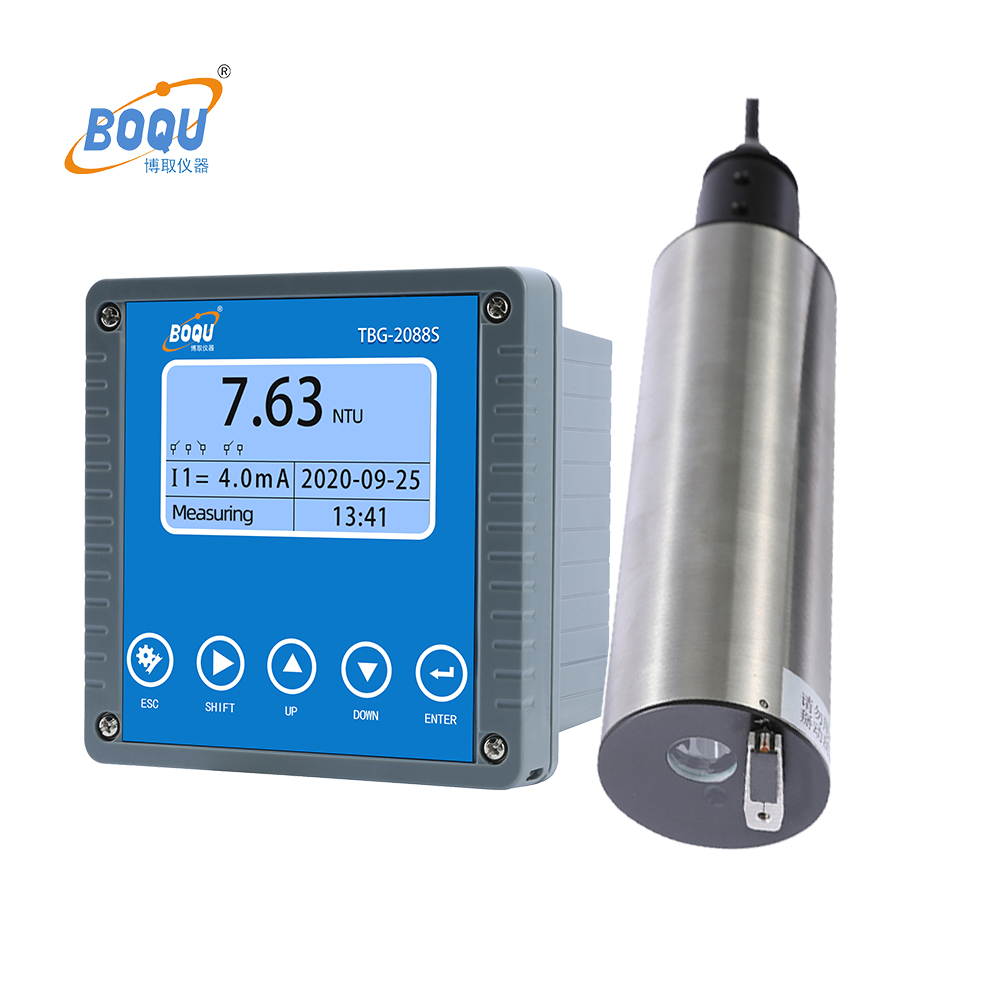

TBG-2088S online turbidity analyzer consists of smart meters and digital sensors, and the smart meters can be directly connected to the host computer. The sensor is equipped with a special mounting bracket, it can be submerged for installation, measure the turbidity value in water instanly, be widely used in multiple application.
Application:
Waterworks, power plants, sewage treatment plants, pharmaceutical factories, hospitals and other industrial occasions...
- Product Details
- {{item.text}}
Quick Details
-
Material:
-
Louise Zhou +86 15180184494
-
Color:
-
Louise Zhou +86 15180184494
-
Power:
-
Louise Zhou +86 15180184494
-
Product name:
-
turbidity meter
-
Measurement range:
-
0~100NTU, 0-4000NTU
-
Accuracy:
-
±2%
-
Output:
-
4-20mA
-
Power supply:
-
90-260V AC 50/60Hz
-
Communication:
-
RS-485
-
Shell Material:
-
ABS
-
Size:
-
144*144*104mm
-
Application:
-
Water Treatment Industry
-
Notice:
-
Contact us to get prices at the latest exchange rates!
Quick Details
-
Warranty:
-
1 years
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
BOQU
-
Material:
-
Louise Zhou +86 15180184494
-
Color:
-
Louise Zhou +86 15180184494
-
Power:
-
Louise Zhou +86 15180184494
-
Product name:
-
turbidity meter
-
Measurement range:
-
0~100NTU, 0-4000NTU
-
Accuracy:
-
±2%
-
Output:
-
4-20mA
-
Power supply:
-
90-260V AC 50/60Hz
-
Communication:
-
RS-485
-
Shell Material:
-
ABS
-
Size:
-
144*144*104mm
-
Application:
-
Water Treatment Industry
-
Notice:
-
Contact us to get prices at the latest exchange rates!
TBG-2088S Online Turbidity Analyzer
Online RS485 Communication Turbidity Sensor
This turbidity sensor from BOQU uses dual-beam infrared scatterometer detection technology, which has stronger resistance to color interference and higher measurement accuracy. Digital sensor, standard digital signal, strong anti-interference ability, transmission distance up to 100 meters.Widely used in Waterworks inlet, settling tank, sewage plant, production process water, wastewater treatment, can also be customized upgraded titanium alloy (seawater version).
Wall-mounted Turbidity Analyzer
TBG-2088S/P, TBG-6088T online turbidity analyzer integrates digital turbidity sensor, intelligent online turbidity analyzer and waterway into a complete machine, view and manage data on the turbidity analyzer, perform calibration and other operations; it has a storage function, supports remote data transmission, and provides great convenience for water quality turbidity data collection and analysis.
Features:
Features:
★
1. The installation is simple, and the water can be used immediately;
★
2. Automatic sewage discharge, less maintenance;
★ 3. High-definition large screen, full-featured display;
★ 3. High-definition large screen, full-featured display;
★
4. With data storage function;
★
5. Integrated design, with flow control;
★ 6. Equipped with 90°scattered light principle;
★ 6. Equipped with 90°scattered light principle;
★
7. Comes with a defoaming pool to avoid the interference of air bubbles and other visible light;
Application :
Application :
Monitoring of water quality turbidity in swimming pool water, drinking water, secondary water supply of pipe network etc.
Application
Wide Application
Industrial waste water/Sewage/Surface water/Aquaculture
/Biopharmaceutical/Fluvial cross section
