Quick Details
-
Model Number:
-
MZCD-029
-
Brand Name:
-
MZC
-
Standard or Nonstandard:
-
Standard
-
Body material:
-
Stainless Steel
-
MOQ:
-
3 PCS
-
Standard:
-
SMS / 3A / DIN / ASME Bpe / ISO
-
Certificate:
-
ISO9001:2008 CE
-
Connection Type:
-
Flanged or Threaded or BW or Tri Clamped
-
HS CODE:
-
8481804090
Quick Details
-
Port Size:
-
3/4"- 6" , 20mm- 150mm
-
Warranty:
-
1 year, 12 Months
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
MZCD-029
-
Brand Name:
-
MZC
-
Standard or Nonstandard:
-
Standard
-
Body material:
-
Stainless Steel
-
MOQ:
-
3 PCS
-
Standard:
-
SMS / 3A / DIN / ASME Bpe / ISO
-
Certificate:
-
ISO9001:2008 CE
-
Connection Type:
-
Flanged or Threaded or BW or Tri Clamped
-
HS CODE:
-
8481804090

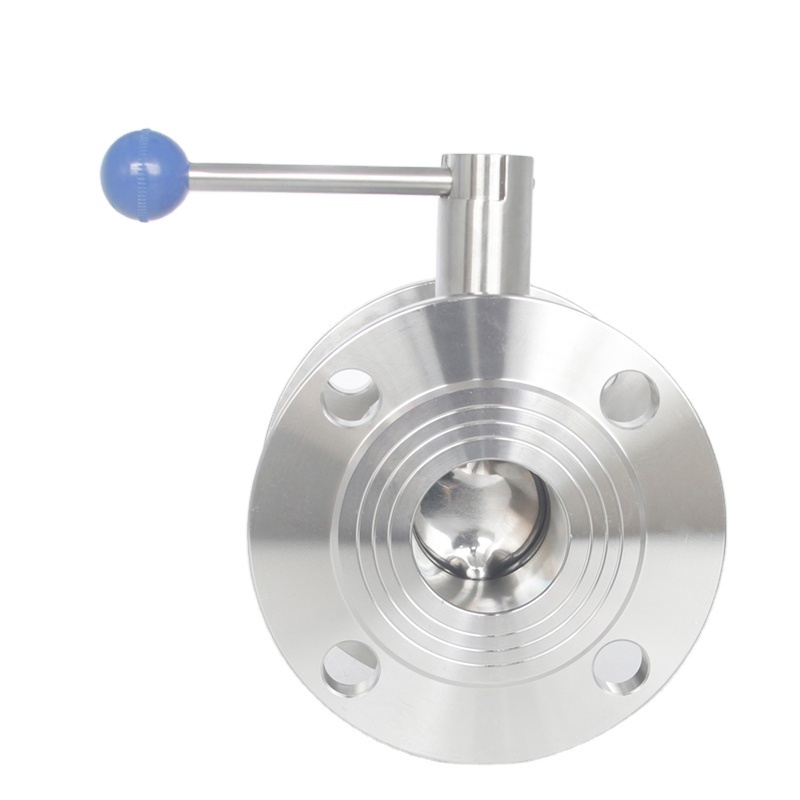

Stainless Steel 304 American standard Flanged Sanitary Butterfly Valve
Our Butterfly valve body could be offered with Weld end, Male end, Flange end, and Clamp end. Our butterfly valves can be installed with different type handles like 4-position pull handle, 12-position gripper handle and 10 more other types or installed with actuator for automatically control for your widely using.
The Butterfly valve body and disk are all made from full CNC machined, high grade level polish.
All of the products have been 100% press tested before shipping.
It is necessary for you to specify at the time when orders be placing if heat numbers and MTR's are required.
EPDM, Silicon and Viton seats are available for installing in our butterfly valves which are suitable for many applications in such as food, dairy, beverage, meat processing, chemical, and many other industries.
Technical Parameters:
| Standard | 3A,SMS,DIN,ISO,RJT,IDF | ||||||
| Product Wetted Steel Parts | AISI304/AISI316L | Provided with material inspection report | |||||
| Other Steel Parts | AISI304 | ||||||
| Size | 3/4"~6",DN20~DN150 | ||||||
| Seal material | EPDM/VMQ/FPM | All seals material comply with FDA21CFR117.2600 | |||||
| Working pressure | ≤10bar(145psi) | ||||||
| Working temperature | PDM:-14~248ºF(-10~120ºC) | ||||||
| VMQ:-58~356ºF(-50~180ºC) | |||||||
| FPM:22~446ºF(-30~230ºC) | |||||||
| Other materials are available upon request | |||||||
| Sterilization temperature | 302ºF(150ºC,max 20min) | ||||||
| Outside surface treatment | Ra16~32uin(o.4~0.8um) | ||||||
| Inside surface treatment | Ra32~64uin(o.8~1.6um) | ||||||
| Connection ends | butt-weld,clamped ends,male ends, flange ends | ||||||
| Pneumatic head | Normally closed(NC)-Air to open,spring to close | ||||||
| Normally open(NO)-Air to close,spring to open | |||||||
| Air to air(AA)-Air to open,air to close | |||||||
Specification
| Product Name: | Sanitary Butterfly Valve |
| Valve Body Material: | 1.4404/1.4301, SS304/SS316L |
| Seal Material: | EPDM (standard) FPM/SILICON/NBR, FDA177.2600 |
| Mex working pressure: | 20Bar |
| Max. Working Temperature: | 120 degree C |
| Available size: | DN20-DN150,3/4"-6" |
| Available connection: | weld/tri clamp/male thread/flange |
| Available standard: | 3A/DIN/SMS/RJT/ISO/IDF |
| Operated: | Manual/Pneumatic actuator/Electric actuator |
| Control: | Sensor, C-TOP, C-top controller(AS-I) |
| Handle application: | Stainless steel pull handle |
| Application scope: | Dairy,food, beverage, pharmacy, cosmetic, chemical, etc |
