Automatic electric pineapple peeling and coring machine pineapple peeler and corer machine

Automatic electric pineapple peeling and coring machine pineapple peeler and corer machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $4850

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Type:: Peeling and coring machine, Fruit and vegetable processing machinery

Voltage:: 380V/50HZ

Power:: 0.75KW

Weight:: 280 KG

Dimension(L*W*H):: 1200*700*1300mm

Name:: Pineapple peeling and core punching machine

Model:: ASL-BLQPJ-200

Application:: Canned Fruit Food Factory

Function:: Pineapple peeling and coring

Brand:: Aslan

Capacity:: 6-12pcs/min(depending on the proficiency of workers)

Pineapple outer diameter:: 100-130mm

Number of blades:: 4pcs

Material:: Stainless Steel

Quick Details

Marketing Type:: New Product 2023

Place of Origin:: Henan, China

Brand Name:: Aslan machinery

Type:: Peeling and coring machine, Fruit and vegetable processing machinery

Voltage:: 380V/50HZ

Power:: 0.75KW

Weight:: 280 KG

Dimension(L*W*H):: 1200*700*1300mm

Name:: Pineapple peeling and core punching machine

Model:: ASL-BLQPJ-200

Application:: Canned Fruit Food Factory

Function:: Pineapple peeling and coring

Brand:: Aslan

Capacity:: 6-12pcs/min(depending on the proficiency of workers)

Pineapple outer diameter:: 100-130mm

Number of blades:: 4pcs

Material:: Stainless Steel

Products Description

Automatic electric pineapple peeling and coring machine pineapple peeler and corer machine

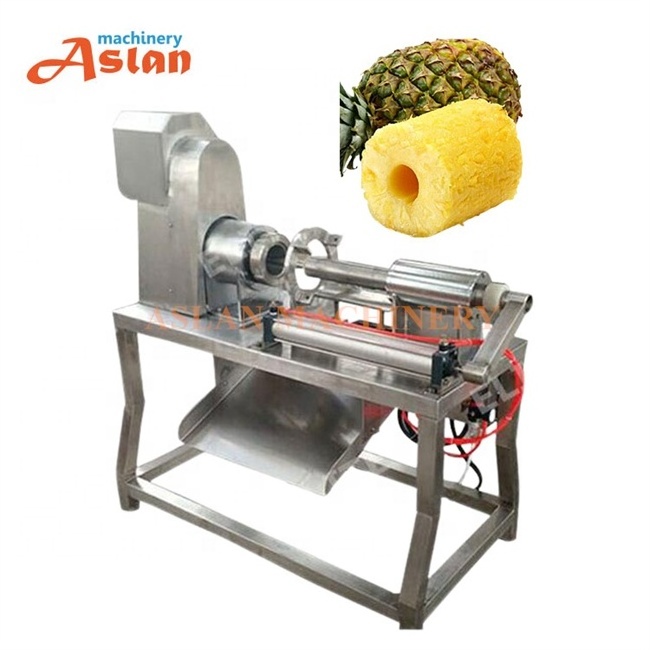

Introduction of pineapple peeling and core punching machine:

This equipment can complete the two processes of peeling and piercing the core to obtain cylindrical pineapple fruit.It is suitable for canned food production lines,military units,schools,enterprises and institutions.

The working principle of commercial pineapple peeling and coring machine:

The pineapple is manually cut off the head and tail ends,and then manually placed on the feeding rack. The center height of the feeding rack can be adjusted.The pineapple is pushed forward by the air cylinder.The skin of the pineapple is cut through the special skinning knife and pushed into the high speed.The rotating peeling knife barrel cuts off the outer skin of the pineapple.At the same time,the piercing knife in the feeding rod pierces the pineapple core to obtain a cylindrical fruit barrel.If you
only need to peel the skin without piercing the core,you can cut the pineapple core inside the feeding rod.Remove the core knife.

Features of desktop pineapple peeling and core punching machine:

1.Manual feeding.
2.Complete the two processes of peeling and piercing at one time.
3.The cutter can be adjusted.
4.Simple operation and easy maintenance.

Product Paramenters

Model	ASL-BLQPJ-200
Power	0.75KW
Voltage	380V/50HZ
Capacity	6-12pcs/min
Pineapple outer diameter	Φ100-130mm
Number of blades	4PCS
Machine size	12007001300mm
Weight	280kg
Material	Stainless steel

Machine Details Photos

Work effect display:

Packing&shipping

Our Service

Usually machine guarantee time is about 1 year.Within guarantee

time.Machine breaking caused by machine itself design defect,we are responsible for it.We can provided free charge breaking part and so on after sale service action.If machine breaking
caused by operate reasons, user take responsibility for it,we will help to maintain machine until machine working well,of course,over guarantee time,we also here for support .
