Av-Gad Central CCTV Power Supply 12V 150W with backup battery CCTV UPS system dc power supply

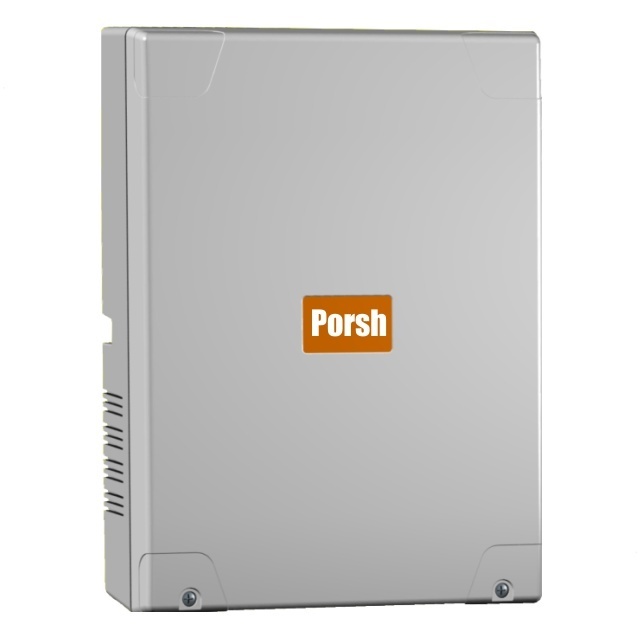

Central CCTV Power Supply with battery backup

The new Porsh power supply series are advanced central power supply and UPS

Central CCTV Power Supply without battery back up
Central CCTV Power Supply with improved heat dissipation and high efficiency
Porsh Central Power Supply & UPS provides 12V DC at 12.5A (150W)
One high-current channel for NVR or DVR plus 15 channels for CCTV cameras
Central Power Supply & UPS for 16 channels
Allows operating voltage and battery backup to DVR, NVR and cameras
Each channel (output) is thermal fuse protected
LED indicator for each channel
One faulty channel does not shut down all the cameras or a complete system

Installer benefits

Keep working during power failure as a result of malfunction or AC power loss
Improved EMI and RFI protection designed for rush environment
Protects the hard disk damage as a result of power jam
Option: Add charger with battery monitor
Space inside the enclosure for rechargeable battery 5 or 7 or 9 A/H
Option: Output to activate dialer during malfunction or low battery

Technical details

Output voltage: 12 to 15 DC volts, adjustable on board. Option Voltage 24 volts
Output current: 12.5A
Channels: 16-channel
Chassis: Armored plastic for easy installation
Input voltage: 110 to 220 volts
Connections: Terminal wires for thick wires
Camera protection: electronic fuse 1.9 amperes thermal fuse
DVR, NVR protection: 2.5 amperes thermal fuse
Charger: Included
Battery type: SLA 12V, 5-9 A/H
Battery connector: None
Operating temperature: -20 to +80ºC (-4 to 176ºF)
Enclosure: ABS box
Dimensions: 23 X 31 X 9 cm (9” X 12 1/4” X 3 1/2)
