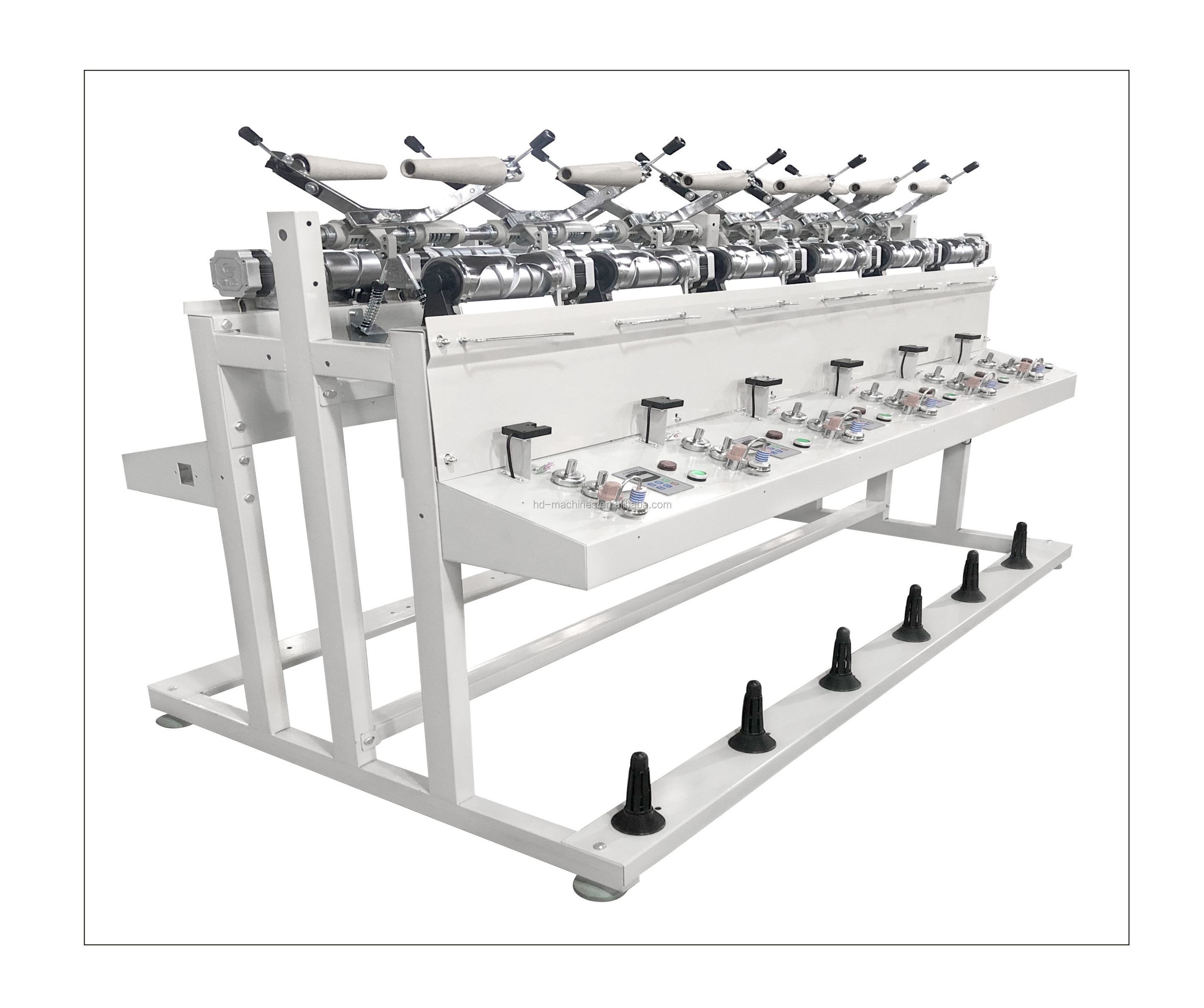

12 spindles auto yarn winding machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $2500

≥10 Sets

US $2400

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: arrow star

Voltage:: 220V

Power:: 60W

Dimension(L*W*H):: 200x200x1450mm

Weight:: 330 KG

Name:: 12 spindles auto yarn winding machine

Bobbin Type:: 5"(170mm) Cone

Function:: winding yarn

Quick Details

Application:: yarn winding

Production Capacity:: 100~1200 meters/minutes

Place of Origin:: China

Brand Name:: arrow star

Voltage:: 220V

Power:: 60W

Dimension(L*W*H):: 200x200x1450mm

Weight:: 330 KG

Name:: 12 spindles auto yarn winding machine

Bobbin Type:: 5"(170mm) Cone

Function:: winding yarn

Product Description

Multi- heads rewinder machine ,yarn winding machine

The Computerized winding machine suitable for the sweater factory before do the knitting , and rewinding the yarn , to make the yarn more smooth and soft , so that after the yarn deliver to the knitting machine , less yarn breakage and damage pannel .Nowadays , it has become the essential machines for the sweater factory whom have computerized knitting machine .
Our winding machine, is fully computerized, with individual energy saving servo motor, with individual led control pannel , so that if one spindle is not working , other spindles will keep working . and our machine also have speed control fuction, with vacuum cleaner and air splicer .

we have different spindle machines , start from 4, 6, 12, 24 , 36, 48, 60,96,120 spindles . You can desire your required qty
according to your factory space and production requirement .

Specification of yarn winding machine

Layout	Single side
Power Supply	220V
Max.package diameter	250mm
Take-up traverse	152mm
Motor Power	0.09KW/spindle
Take-up speed	Max. 1000 meters/min
Driving	Individual
Auto Stop Device	Motion sensor
Electronic Anti-Stack	Inverter control
Dimensions	L 200x W 200 x H 1450 mm ( 6 spindles)
Weight	300kg

Product packaging

High Speed Yarn Winding Machine
PACKAGE			DELIVERY
Package Size	200x200x1450CM	Sea shipping	20-35 days depend on different country
Net/Gross weight	280/300 KG	Air shipping	2-8 days
Packing Material	Wooden Case	Train shipping	15-18 days ( specifically for middle Aisa and European market )
We have prepared machine in stock which is available for deliver in 7-10 days after payment
