Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
SHUHUI
-
Model Number:
-
FCY-10 ~ FCY-200
-
Min Height:
-
257mm
-
Certification:
-
CE
-
Structure:
-
Piston Cylinder
-
Color:
-
Customized Requirement
-
Power:
-
Hydraulic oil
Quick Details
-
Warranty:
-
1 year, 1 Year
-
Type:
-
Hydraulic Jack
-
Max Height:
-
281mm
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
SHUHUI
-
Model Number:
-
FCY-10 ~ FCY-200
-
Min Height:
-
257mm
-
Certification:
-
CE
-
Structure:
-
Piston Cylinder
-
Color:
-
Customized Requirement
-
Power:
-
Hydraulic oil
Lifting Single Acting Solid Ram Extended Jack FCY-20 20Ton Hydraulic Cylinder Jack
Product Features :
Good Quality,Craftsmanship ,More Stable Service life
1.Smooth surface :circle marks are obvious fix the cylinder firmly with out bursting
2.Quick conector:the product has a unified quick interface .equipped with dust cover to prevent impurities from entering .
3.Jack up barrier-free:work jacking,no cylinder jam,full tonnage ,full stroke.

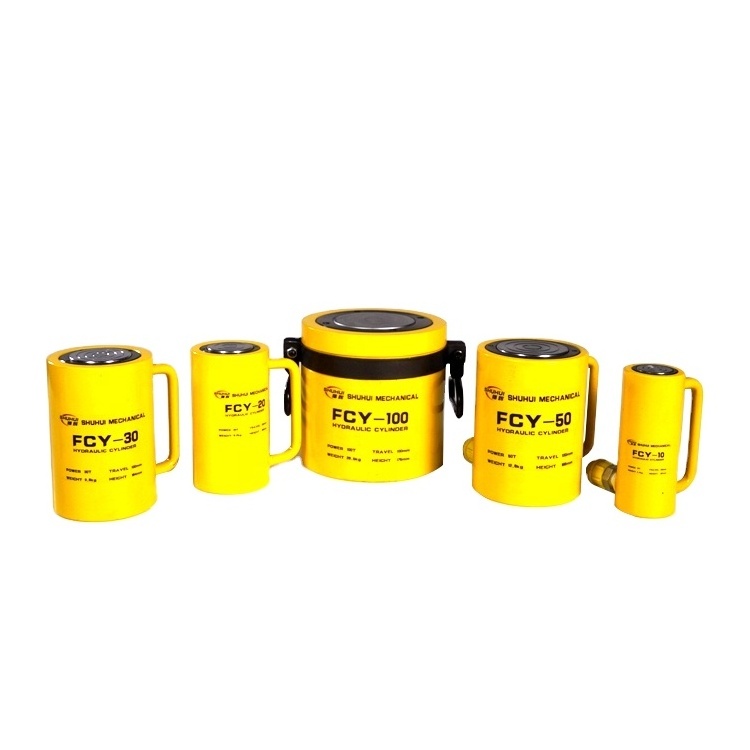

Long Type Hydraulic Oil Cylinder FCY Series
|
Model NO. |
Tons(T) |
Cylinder effective area(cm2) |
Cylinder inside DIA(MM) |
Cylinder Outside dia (mm) |
Travel(mm) |
Weight(kg) |
Collapsed height(mm) |
remark (optional manual pump) |
|
FCY-10 |
10 |
15.89 |
45 |
63 |
100 |
3.4 |
157 |
Cp-180 |
|
FCY-20 |
20 |
33.16 |
65 |
88 |
100 |
6.2 |
160 |
Cp-700 |
|
FCY-30 |
30 |
50.24 |
80 |
108 |
100 |
9.6 |
164 |
Cp-700-2 |
|
FCY-50 |
50 |
78.5 |
100 |
128 |
100 |
12.6 |
166 |
Cp-700-3 |
|
FCY-100 |
100 |
143.06 |
135 |
178 |
100 |
26.5 |
176 |
Cp-800 |
|
FCY-200 |
200 |
302.5 |
196.3 |
247 |
100 |
65 |
181 |
ZCP-700A(electric pump) |
Adavantages:
- Light weight and compact design suitable for working in narrow space.
- Baked enamel finished for increased corrosion resistance.
- The dustproof ring reduces pollution and prolongs the service life of hydraulic cylinder.
- Easy to carry,and the cylinder plane is provided with two holes for fixed use.
