Quick Details
-
Warranty(Year):
-
2-Year
-
Product Weight（kg）:
-
24.5
-
Input Voltage(V):
-
240V
-
Lamp Luminous Flux(lm):
-
1400
-
CRI (Ra>):
-
85
-
Working Temperature(℃):
-
20 - 45
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CPL
-
Emitting Color:
-
RGBW
-
Watts:
-
1200W
-
IP Level:
-
Indoor use
-
Life time:
-
50000 hours
-
Color:
-
RGBW
-
Beam Angle:
-
5.5-50° degrees
-
DMX Chs:
-
36CHS
-
Dimmer:
-
0-100%
-
Weight:
-
42.84kg
-
Warranty:
-
2 years
Quick Details
-
Color Temperature(CCT):
-
6000K (Daylight Alert)
-
Type:
-
Moving Lights
-
Application:
-
Residential
-
Warranty(Year):
-
2-Year
-
Product Weight（kg）:
-
24.5
-
Input Voltage(V):
-
240V
-
Lamp Luminous Flux(lm):
-
1400
-
CRI (Ra>):
-
85
-
Working Temperature(℃):
-
20 - 45
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CPL
-
Emitting Color:
-
RGBW
-
Watts:
-
1200W
-
IP Level:
-
Indoor use
-
Life time:
-
50000 hours
-
Color:
-
RGBW
-
Beam Angle:
-
5.5-50° degrees
-
DMX Chs:
-
36CHS
-
Dimmer:
-
0-100%
-
Weight:
-
42.84kg
-
Warranty:
-
2 years

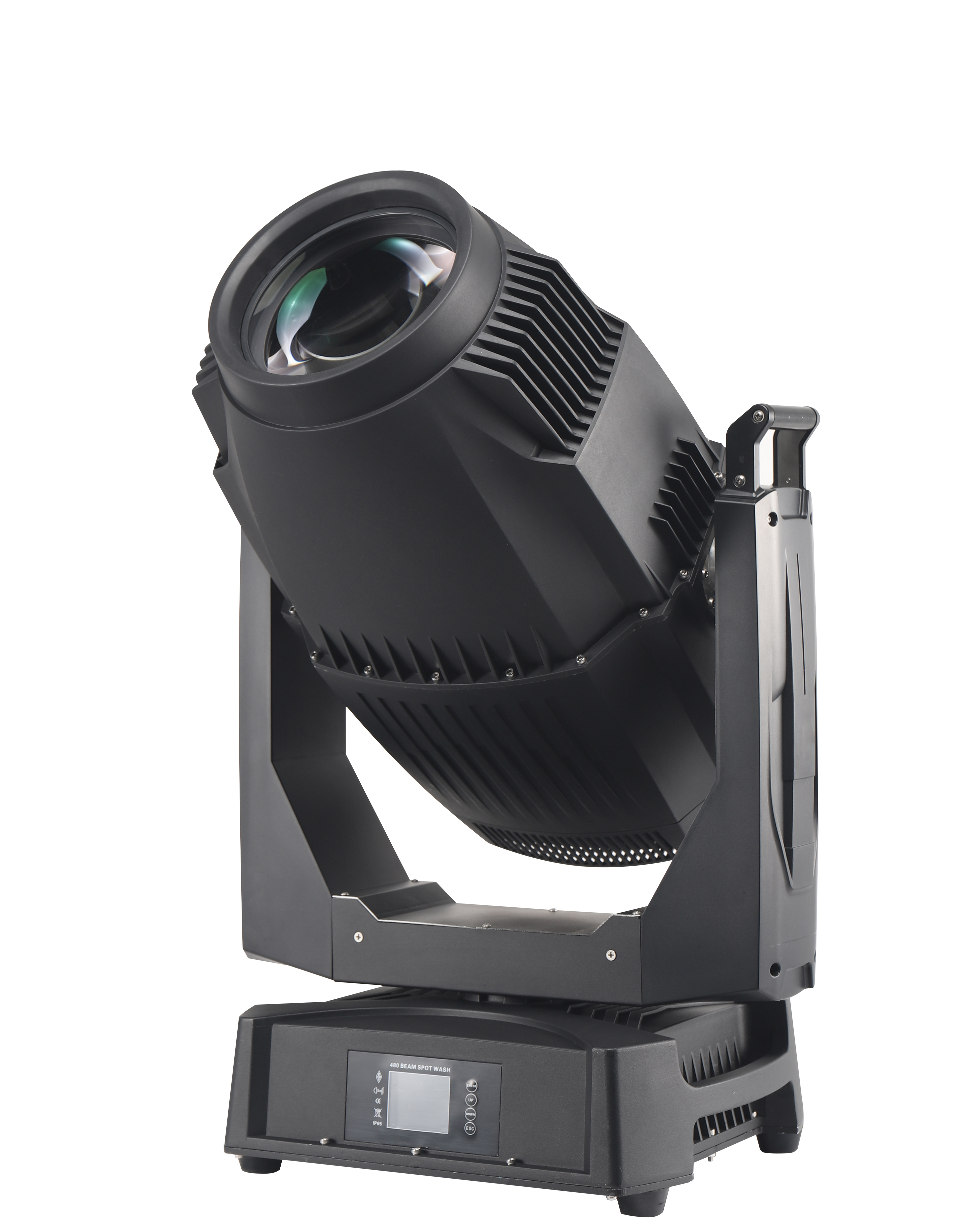

IP65 1200W LED PROFILE SPOT MOVING HEAD Outdoor led moving head spot light CMY CTO S kylight
Specifications
Features&Specifications:
Light Sources: Powerful 1200W LED engine
LED life expectancy: 20000 hours
Advanced optical design to ensure precise gobos and colors
Diameter of frontal lens: 170 mm
Beam Angle: 5.5-50°
Control and Program
4-buttons touch panel
Display: LCD display
Protocols: DMX512, RDM
DMX Channel: 36
Firmware Upgrade: Upgrade via DMX link
Pan/Tilt Resolution: 16 bit
Pan movement: 540°
Tilt movement: 270°
Automatic Pan/Tilt position correction
6 Interchangeable high-precision glass gobos, plus open
Adjustable-speed rotating gobo in both directions
Image diameter: 23 mm
Outside diameter: 28 mm
Thickness: 1.1 mm
Max. thickness: 4mm
"SLOT & LOCK" system for easy gobo replacement
6 high-precision gobos, plus 2 open
One gobo wheel with dynamic effects, rotatable
Shutter Blades: 4 Blades, each with separate movement and full blackout
Movement: Smooth with variable speed, ultrafast for creating mid-air effects
Positioning: The blades can be precisely positioned
Rotation: +- 90° of the complete framing system
Color Wheel 1: 6 colors plus open
CMY Linear 100%
CTO adjustment
Power supply with electronic auto-ranging
Input voltage range: 100-220V~ 50/60Hz Power consumption: 1200 W
Power In/Out:Power Connector in/out
Data In/Out: 3pin or 5-pin XLR, True One connector Dimensions: 473x326x857mm Net Weight:42.84kg Flightcase :605x465x935mm. G.W:75KG(1 in 1 case, with Foldable clamps
Product Show
Attention:
For your own safety, please read this manual before installingthe device.
This manual covers the important information on installation and applications.
Please install and operate the fixture with following instructions.
RELATED PRODUCT
PRODUCT INFORMATION
PRODUCT ADAVANTAGE
1. LED lamp bead arrangement, in strict accordance with the optical distribution. (when mixed color spot clean)
2.Advanced machine to weld lamp bead
3.Silent SUNON fan with good heat dissipation
4.French 8 degree Gaggione lens
5.Latest edition of IC chip 6205, promote speed
6.Strong twisting force motor
7.PFC power supply
8.Neutrik PowerCon power cord, quick lock
INSTALLATION:
Vertical hanging or flat on the ground directly, not recommended side hangIing that is easy to damage
the lamp. If needed hook effect, please consider security problems of engineering installation.
PRODUCTION PROCESS
Delivery time: sample (3-5 days) formal order (15-20 days)
Main market: Europe and the United States, South America
WARRANTY
Maintenance and Cleaning
The following points have to be considered during the inspection:
1) All screws for installing the devices or parts of the device have to be tightly connected and must not be corroded.
2) There must not be any deformations on the housing, color lenses, fixations and installation spots (ceiling,suspension, trussing).
3)Mechanically moved parts must not show any traces of wearing and must not rotate with unbalances.
4)The electric power supply cables must not show any damage, material fatigue or sediments.
Further instructions depending on the installation spot and usage have to be adhered by a skilled inst- aller and any safety problems have to be removed.
In order to make the lights in good condition and extend the life time, we suggest a regular cleaning to thelights.
1) Clean the inside and outside lens each week to avoid the weakneness of the lights due to accumul- ation of dust.
2) Clean the fan each week.
3) A detailed electric check by approved electrical engineer each three month, make sure that the circ- uit contacts are in good condition, prevent the poor contact of circuit from overheating.
We recommend a frequent cleaning of the device. Please use a moist, lint- free cloth. Never use alco- hol or solvents
There are no serviceable parts inside the device. Please refer to the instructions under “Installation instructions”.
Should you need any spare parts, please order genuine parts from your local dealer.
