Quick Details
-
Certification:
-
CE/ISO
-
Experience:
-
Alibaba 13 year gold supplier, 15 years experience
-
OEM/ ODM:
-
Available
-
Detection range:
-
2-40 meters
-
Battery:
-
1.5 years, General 3.6V AA
-
Stand alone software:
-
Free, for single store
-
Net work software:
-
Not free, for chain stores
-
System support:
-
WinXP/ 2000/ 7/ 8 system
-
Directional data:
-
In-out-stay data
-
LCD screen:
-
In-out data on RX, available
Quick Details
-
Brand Name:
-
Highlight traffic sensor counter
-
Place of Origin:
-
Shanghai, China
-
Model Number:
-
HPC005 traffic sensor counter
-
Certification:
-
CE/ISO
-
Experience:
-
Alibaba 13 year gold supplier, 15 years experience
-
OEM/ ODM:
-
Available
-
Detection range:
-
2-40 meters
-
Battery:
-
1.5 years, General 3.6V AA
-
Stand alone software:
-
Free, for single store
-
Net work software:
-
Not free, for chain stores
-
System support:
-
WinXP/ 2000/ 7/ 8 system
-
Directional data:
-
In-out-stay data
-
LCD screen:
-
In-out data on RX, available
Our People Counting systems are accurate, reliable, easy to install, low maintenance, and very affordable. Many retailers, libraries, museums, and other businesses are taking advantage of the many benefits these systems provide. Virtually any type of business can benefit from the data our People Counting systems provide.
people counter people counter people counter people counter people counter

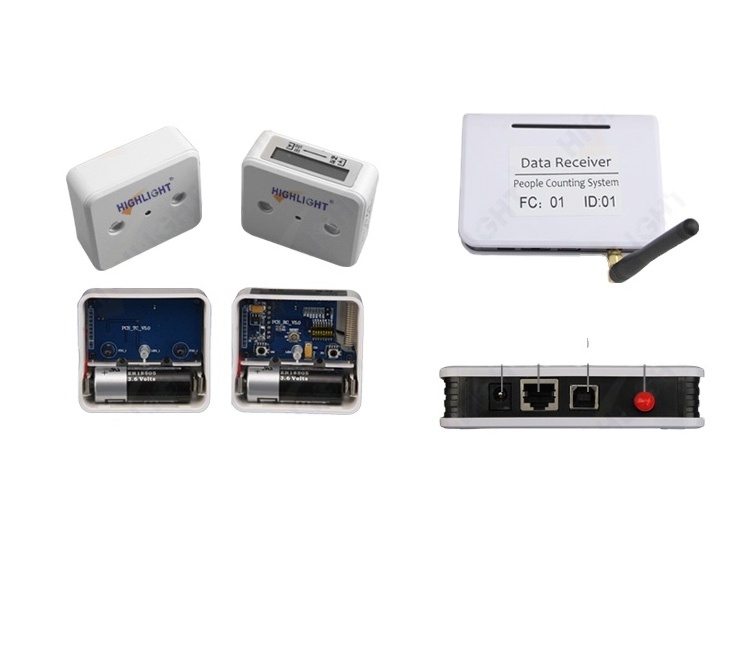

Both Infrared and camera people counter are available in Highlight now.
| Describtion |
People counter |
| Directional | In-out-stay data |
| Battery | Replaceable battery, 1.5 year, 3.6V AA battery |
| MOQ | 1 Piece |
| Softwares (two) | Stand alone software -- Free (For single store) |
| Network software -- Not free (For chainstores) | |
| System | WinXP/Win2000/Win7/8 system support. |
| Direction range | 3-40 meters |
| Warranty | 1.5 years |
| Models | 4 people counters in Highlight |
Advantage:
1. LCD Screen on RX
Data is also shown on LCD screen directly, in and out data.
Out data: In data:
2. Wider range
It can be used for a gate with 2 -40 meters.
3. Battery capacity
AA battery which we offered can work up to 1.5 year. Customers can buy the batteries locally, or buy from us. General 1.5V-3.6V AA batteries are workable.
4. Strong anti-light ability.
Greatly decrease the counting error affected by light, so higher accuracy rate.
5. Strong glass (door) penetrating ability
It can work well behind an open glass door.
6. More confidential data transfer
TX-RX transfer data to Data Receiver is strongly encrypted, so more safer.
7. Appearance
HPC005 is more fashionable.
Screws used for installation are hidden in the back of counter and looks more beautiful.
8. Panel
Panel can be printed with any logo or design.
9. Obstacle indication
If the infrared ray is blocked, there will be a indication on the LED screen and the red light on the RX will keep flashing.
10. OEM/ ODM is available.
Your logo can be sticked on the devices.
The counter works by IR (infrared rays) beam, it will count if any opaque or non-transparent objects cut the beam. In order to improve the counting accuracy, the installation height of the counter is important. The below two positions height recomended:
Position 1: 140cm (Best Position)
This position height means from shoulder to head to a person, the counter will not be affected by arms swing. But Children will not be counted.
Position 2: 60cm
This position hegiht means the pocket of trousers or thighs. The counter will not be affected by both legs and arms. And Children will also be counted.
For a store with several entrances, one DC can connect with at most 8 TX/RX. The software can distinguish every entrances. Details as below:
There are two softwares for HPC005.
1. Stand slone software.
This is free and used in single store. The report chart as below:
2. Network software
With a network software, you can check all the data collected from different chain stores and compare them.
Below is the analysis chart from one of our customer’s Chain stores, the customer can visit all store’s data at anywhere. (the English version software will be all in English)
With a network software, you can also check the data by your phone.
Please be noted that it is not a APP, you need to input the website and login with account and password.
HPC005 people counter has been used in different kinds of stores:
There are 4 people counters in Highlight to meet customers' different requirement. Details as below:
New arrival! Overhead camera people counter on the ceiling, please click the below picture for more details:
Besides people counter solution, Highlight also support retail security (EAS) to different kinds of store:
Quality is our life. We follow the CE/ISO strickly to guarantee the quality.
