Quick Details
-
Standby current:
-
18mA
-
Working current:
-
440mA
-
Certification:
-
CE
Quick Details
-
Place of Origin:
-
Taiwan
-
Brand Name:
-
Pegasus, Pongee
-
Website:
-
www.pongee.com
-
Standby current:
-
18mA
-
Working current:
-
440mA
-
Certification:
-
CE

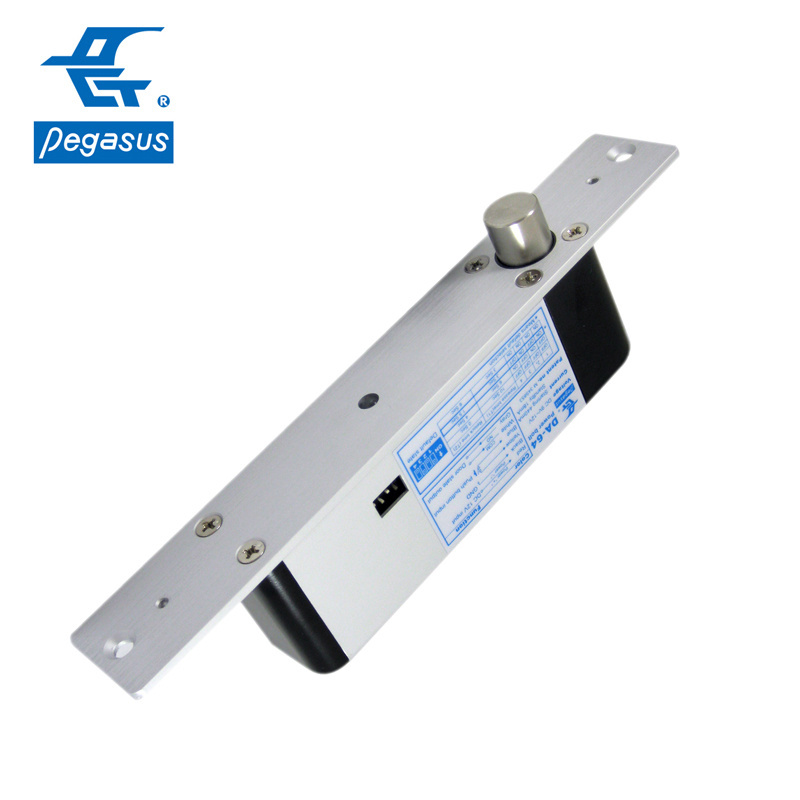

Features
•
Fail-secured type
released as power on.
•With magnetic switch door position sensor
•With DIP switch for setting time delay for opening & relock door
•Electric drop bolt design suitable for double swing door with 180° opening angle
•With power & state LED indicator
•Low stand by current (18mA) suitable for battery backup in fail secured application.
•Low working current, no over heating problem.
•With exit function thru low current contacts.
•Should be used with Deadbolt releaser DAR-24.
Specifications
•Approx. weight:675g ±1%
•Nominal voltage:DC12V
•Voltage tolerance:±10%
•Standby current:
18mA
•Working current:
440mA
•Temp. range:-20°C ~ 70°C
•Power consumption:0.2W(standby) / 5.3W(work)
Application
For aluminum, steel, wooden or brass door.
Dimension: Unit(mm)
Deadbolt releaser DAR-24
Deadbolt releaser is the device installed on the door panel to pair with the general deadbolt lock which is installed on the door jamb for auxiliary releasing the bolt during either in damaged or power failing condition. Especially for the fail safe type power bolt which is unable to release the bolt during power failure.
We reserve the right to change the specification without prior notice or obligation!
