It is composed of four shock absorbing structures of "reinforced plastic casing, buffer belt, buffer net and cap hoop", which can minimize the impact of external impact on the head
- Product Details
- {{item.text}}
Quick Details
-
Product name:
-
PENCO helmet fireman rescue helmet for firefighting fireman
-
Material:
-
fiber and glass reinforced composite shell
-
Color:
-
Red, yellow or can be customized per your request
-
Size:
-
EU/Asian
-
Standard:
-
EN397, EN443
-
Structure:
-
Outer shell,Goole,Amice,Adjustable headband
-
Characteristic:
-
UV resistant and high gloss paint
-
Feature:
-
equipped with flashlight holder
-
Type:
-
ODM, OEM
-
Applications:
-
rescue helmet with reflective stripe for firefighting and construction
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
penco
-
Model Number:
-
PC-T0301
-
Product name:
-
PENCO helmet fireman rescue helmet for firefighting fireman
-
Material:
-
fiber and glass reinforced composite shell
-
Color:
-
Red, yellow or can be customized per your request
-
Size:
-
EU/Asian
-
Standard:
-
EN397, EN443
-
Structure:
-
Outer shell,Goole,Amice,Adjustable headband
-
Characteristic:
-
UV resistant and high gloss paint
-
Feature:
-
equipped with flashlight holder
-
Type:
-
ODM, OEM
-
Applications:
-
rescue helmet with reflective stripe for firefighting and construction
Product Description
Product Application

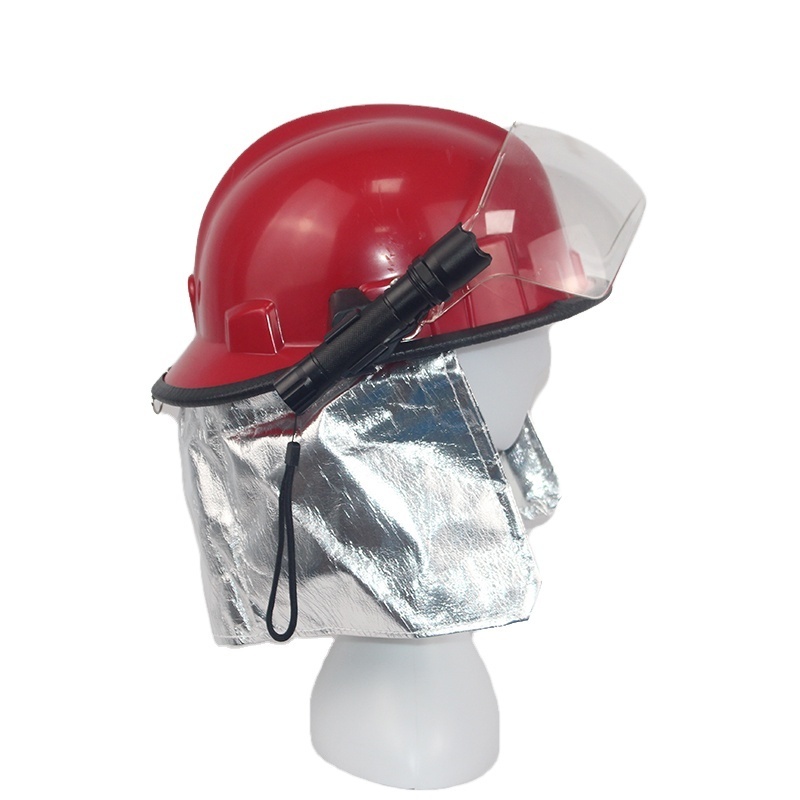

This style helmet applies to the protection of head and face from burn, cut, shock, hit, or scratch during fire fighting emergency or disaster rescue, traffic accident, vehicle extraction rescue etc. and has the features of shock, corrosion, thermal radiation, reflection and insulation. The outer shell is made of high temperature imported polyetherimide plastics, which can resist impact and puncture. It has a high-density foam buffer layer, a uniform buffer network and a four-pole shock absorber structure, which can limit the external impact on the head. Helmet as a whole has a strong resistance to high temperature performance, heat-resistant helmet shell 260 ℃. It has high strength, high penetration resistance, shock resistance, flame retardant and heat resistance. The mask lens has good light transmittance, high definition, impact resistance, heat resistance, mist resistance, scratch resistance, radiation and aging resistance.
The helmet is a streamlined half-helmet design with a comfortable fit and the hoop can be adjusted freely within the range of 53-63cm, which is suitable for all sizes.
It has the properties of shock resistance, puncture resistance, insulation and air permeability.
Anti-ultraviolet and anti-corrosion properties. Equipped with explosion-proof lighting fixture, it can be used with goggles and wireless communication system.
|
DATA SHEET
|
|
|
|
|||
|
Material
|
Nylon or ABS
|
Standards
|
EN 443 EN397
|
|||
|
Model
|
PC-T0301
|
Max temperature
|
260 °C
|
|||
|
Top cap shell shock
|
≤400GN
|
Headband Material
|
Aluminum foil
|
|||
|
Head cap shell shock proof
|
≤400GN
|
Screen Material
|
Polycarbonate
|
|||
|
Max shock Acceleration
|
≤3780N
|
Total weight
|
1500g
|
|||
|
Color
|
Yellow or Red
|
Features
|
anti-strike anti-pierce fire proof resistance to shock
|
|||
|
Products
|
|
|
|
|||
Main Features:
1. Shell mass: <1 kg, total mass <1300g.
2. Heat resistance: the cap case can not reach the head mold.
3. The deformation droop of the rear edge of the cap shell is 3.2mm. (the standard is no more than 40mm).
4. The deformation droop of cap tongue is 2.4mm (the standard is no more than 30mm).
5. The deformation droop on both sides of the cap and shell is 4.6mm (the standard is no more than 30mm).
6. The cap hoop, cap bracket, buffer layer and chin band shall be free from obvious deformation and damage and conform to the standard requirements.
7. Thermal deformation resistance: qualified.
8. Dropping performance: qualified.
9. Chin strap tensile strength: qualified.
10. The extension length is 7.8mm (the standard is no more than 20mm).
11. Lateral rigidity: the deformation of cap and shell is 38.2mm(no more than 40mm as required by the standard).
12. The deformation after unloading shall be 6.2mm (the standard shall be no more than 15mm).
13. Electrical insulation performance: 1.5ma leakage current from cap and case (standard no more than 3mA)
Detailed Images
It is equipped with flame retardant aluminum foil shawl, which can be loaded and unloaded
PC material made protective mask has good light transmittance and strong impact resistance, which can effectively protect the face
Adjustable range of head circumference: the maximum adjustable range is more than 65cm
