Quick Details
-
CaO Content (%):
-
0.1
-
CrO Content (%):
-
0.3
-
SiC Content (%):
-
>90%
-
Place of Origin:
-
Jiangsu, China
-
Model Number:
-
YXJT-111PT
-
Brand Name:
-
KamTai
-
Application:
-
Furnace
-
Certificate:
-
ISO
-
Size:
-
Custom Made
-
Density:
-
2.75g/cm3
-
Apparent porosity:
-
<28%
-
Breaking strength:
-
>15Mpa
-
Working temperature:
-
1300℃
-
Color:
-
Black
-
Advantage:
-
High temperature resistance
-
Raw material:
-
silicon carbide powder
Quick Details
-
SiO2 Content (%):
-
<10
-
Al2O3 Content (%):
-
0.2
-
MgO Content (%):
-
0
-
CaO Content (%):
-
0.1
-
CrO Content (%):
-
0.3
-
SiC Content (%):
-
>90%
-
Place of Origin:
-
Jiangsu, China
-
Model Number:
-
YXJT-111PT
-
Brand Name:
-
KamTai
-
Application:
-
Furnace
-
Certificate:
-
ISO
-
Size:
-
Custom Made
-
Density:
-
2.75g/cm3
-
Apparent porosity:
-
<28%
-
Breaking strength:
-
>15Mpa
-
Working temperature:
-
1300℃
-
Color:
-
Black
-
Advantage:
-
High temperature resistance
-
Raw material:
-
silicon carbide powder
1.Description

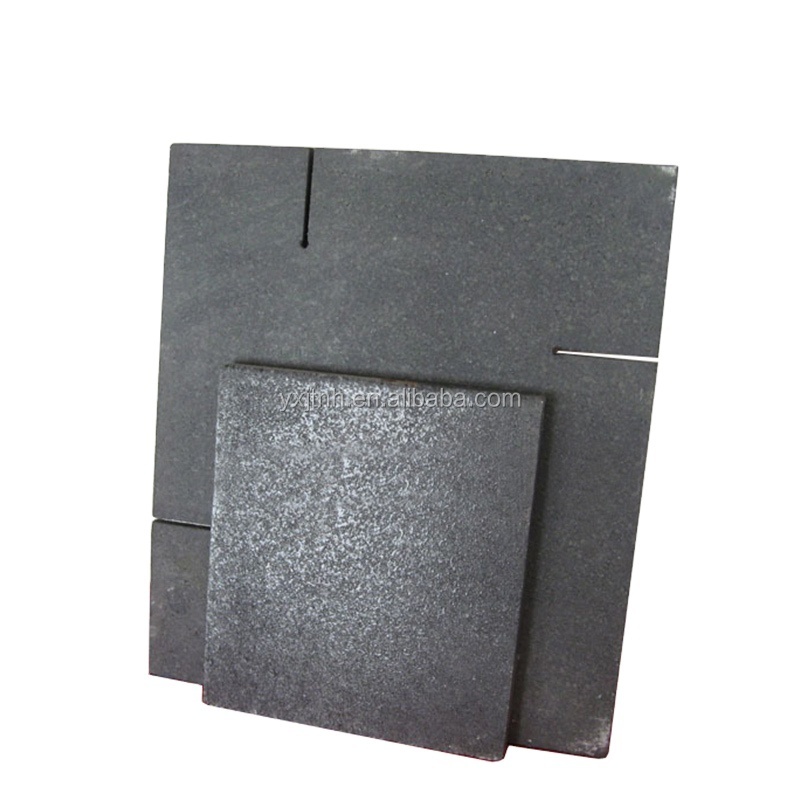

This kiln shelf( we also call it sandwich plate ) is made of high purity mullite and corundum,collocation of silicon carbide composite three-layer heart shed board,which has high load softening point and high stability,low pollution.Applied to the manganese zinc ferrite and other forms of electronic ceramics firing process.
2.Features
1.High temperature tolerance
2.Corrosion resistance
3.Oxidation resistance.
4.Wear resistance
3.Technical data
|
Al2O3 |
>70%Outside |
|
SiO2 |
<28% |
|
Sic |
>85%Inside |
|
Apparent porosity |
<28% |
|
Density |
2.65g/cm3 |
|
Breaking strength |
>15Mpa |
|
Working temperature |
1300 ℃ |
4. Application (sintering magnetic material )
We can offer whole set of this application ,including sandwich plate , corundum-mullite setter plate and corundum kiln post.
