Quick Details
-
Warranty:
-
1 year
-
Brand Name:
-
BISON
-
Model Number:
-
BSDP40I
-
Place of Origin:
-
Zhejiang, China
-
Horsepower:
-
192F
-
Structure:
-
Other
-
Cable Length:
-
/
-
Outlet Size:
-
3''(80MM)
-
Power:
-
/
-
motor:
-
/
-
HP:
-
11
-
Speed (rpm):
-
3600
-
Engine type:
-
Single-cylinder,vertical,4-stroke air-cooled diesel engine
-
Displacement (cc):
-
498
-
Bore*stroke (mm):
-
92*75
-
Starting system:
-
Recoil or Electric
-
Fuel tank capacity (L):
-
5.5
-
Luxury big fuel tank(L):
-
12.5
-
Dimension(L*W*H)(mm):
-
655*480*625
-
Gross weight(kg):
-
93
Quick Details
-
Application:
-
Other, Industry, Family homes
-
Pressure:
-
High Pressure
-
Voltage:
-
/
-
Warranty:
-
1 year
-
Brand Name:
-
BISON
-
Model Number:
-
BSDP40I
-
Place of Origin:
-
Zhejiang, China
-
Horsepower:
-
192F
-
Structure:
-
Other
-
Cable Length:
-
/
-
Outlet Size:
-
3''(80MM)
-
Power:
-
/
-
motor:
-
/
-
HP:
-
11
-
Speed (rpm):
-
3600
-
Engine type:
-
Single-cylinder,vertical,4-stroke air-cooled diesel engine
-
Displacement (cc):
-
498
-
Bore*stroke (mm):
-
92*75
-
Starting system:
-
Recoil or Electric
-
Fuel tank capacity (L):
-
5.5
-
Luxury big fuel tank(L):
-
12.5
-
Dimension(L*W*H)(mm):
-
655*480*625
-
Gross weight(kg):
-
93

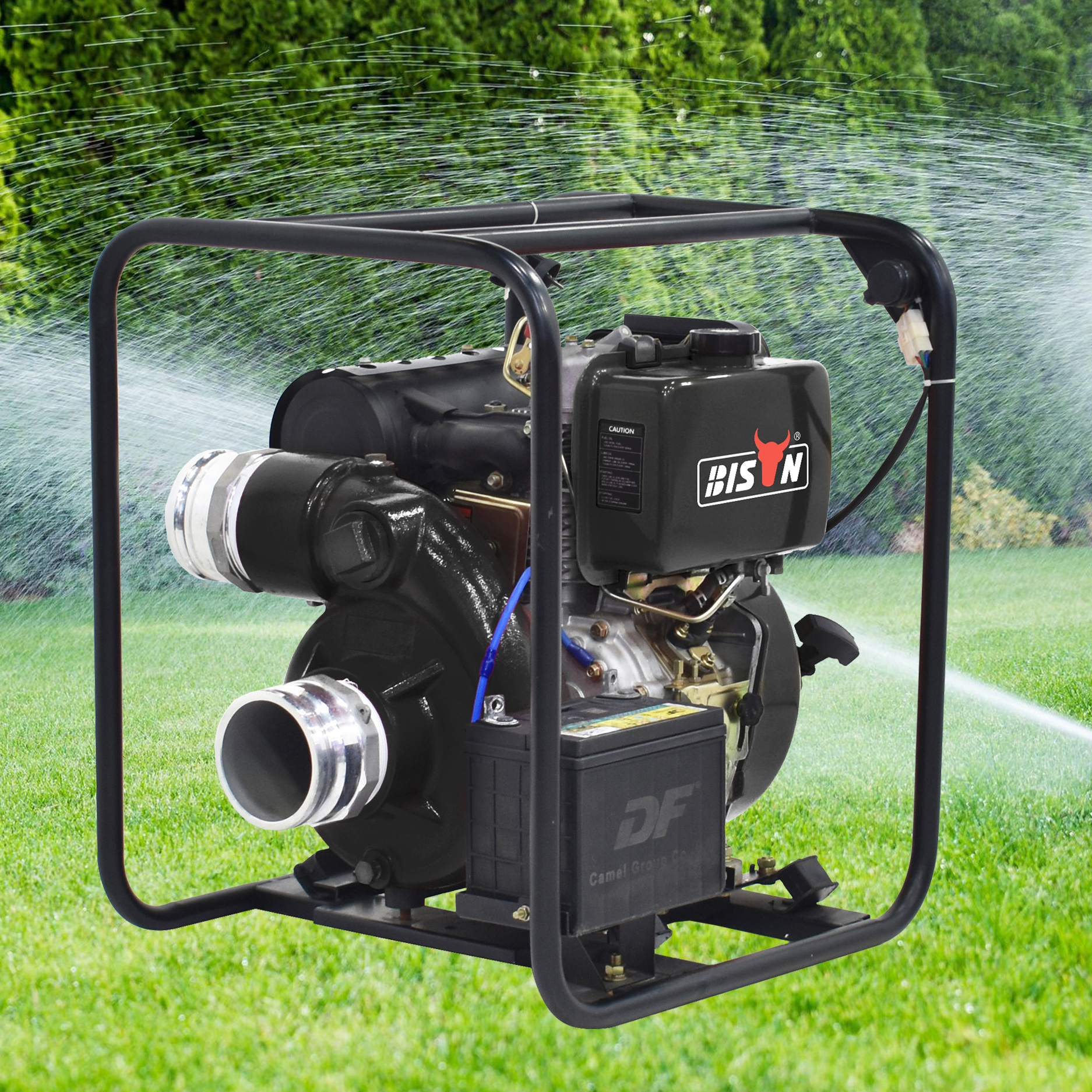

PRODUCT INFORMATION
|
Model
|
|
BSDP15I
|
BSDP20I
|
BSDP30I
|
BSDP40I
|
|||
|
Water pump
|
Suction,discharge port diameter(mm)
|
50(2")
40(1.5") |
50(2")
|
80(3"
|
100(4")
|
|||
|
|
Rated head(m)
|
75
|
90
|
75
|
60
|
|||
|
|
Self-priming time (s/4m)
|
30
|
30
|
30
|
30
|
|||
|
|
Max suction head (m)
|
8
|
|
|
|
|||
|
|
Rated capacity (m3/hr)
|
28
|
35
|
47
|
90
|
|||
|
Engine
|
Engine model
|
BS178F
|
BS186FA
|
BS186FA
|
BS192F
|
|||
|
|
HP
|
5.4
|
8.7
|
8.7
|
11
|
|||
|
|
Speed (rpm)
|
3600
|
|
|
|
|||
|
|
Engine type
|
Single-cylinder,vertical,4-stroke air-cooled diesel engine
|
|
|
|
|||
|
|
Displacement (cc)
|
296
|
418
|
418
|
498
|
|||
|
|
Bore×stroke (mm)
|
78×62
|
86×72
|
86×72
|
92×75
|
|||
|
|
Starting system
|
Recoil or Electric
|
|
|
|
|||
|
|
Fuel tank capacity (L)
|
3.5
|
5.5
|
5.5
|
5.5
|
|||
|
Standard
Features |
Connecter of infall,
Connecter of outfall |
Y
|
|
|
|
|||
|
|
Filter
|
Y
|
|
|
|
|||
|
|
Seal ring
|
Y
|
|
|
|
|||
|
|
Hoop
|
Y
|
|
|
|
|||
|
Optional
Features |
Luxury big fuel tank(L)
|
12.5
|
|
|
|
|||
|
|
Electric Start
|
optional
|
|
|
|
|||
|
Dimensions
|
Dimension(L×W×H)(mm)
|
580x460x560
|
655x480x625
|
655x480x625
|
655x480x625
|
|||
|
|
Gross weight(kg)
|
48
|
65
|
75
|
93
|
|||
OPTIONAL DEVICE
COMPARISON
FACTORY OVERVIEW
OUR SERVICE
REVIEWS
OUR CERTIFICATES
EXHIBITION
1.Q:Are you a factory or trading company?
A: We are a factory.
2.Q:Where is your factory located?
A: Our factory is in Jiaojiang, Taizhou city, Zhejiang Province, China.40mins from Luqiao
Airport by car, 2hours from Ningbo Airport by car, 4hours from Shanghai Airport by car.
3.Q:What is the material of your products?
A: Iron,Steel,plastic,etc.
4.Q:How about quality control in your factory?
A: Taizhou Bison people are always paying great attentions to quality controlling from the
beginning to the end.
5.Q:How about guarantee?
A: It's within 1year after goods is discharged in the destination.
