Quick Details
-
Operating Pressure:
-
0.8-1.2Mpa
-
Power Supply:
-
380V/50HZ/3PH
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
Tongda
-
Model Number:
-
LT 930A
-
Warranty:
-
12 Months
-
Rim Clamp Range:
-
10" - 30"
-
Bead Break Force:
-
2500Kg
-
Two speed Motor:
-
380V/50HZ/3PH
-
Function:
-
self-centering
-
Noise:
-
less than 70dB
-
Fact:
-
movable inflation tank
-
Color:
-
Black/Blue/Red/Grey
-
Product Name:
-
Tire Changer
-
Special:
-
Suitable for 11" -24" stiff flat tyre
-
Description:
-
tyre change machine without turntable
Quick Details
-
Motor Power:
-
0.75/1.1kw
-
Max. Rim Diameter:
-
1100mm
-
Max. Rim Width:
-
14"(360mm)
-
Operating Pressure:
-
0.8-1.2Mpa
-
Power Supply:
-
380V/50HZ/3PH
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
Tongda
-
Model Number:
-
LT 930A
-
Warranty:
-
12 Months
-
Rim Clamp Range:
-
10" - 30"
-
Bead Break Force:
-
2500Kg
-
Two speed Motor:
-
380V/50HZ/3PH
-
Function:
-
self-centering
-
Noise:
-
less than 70dB
-
Fact:
-
movable inflation tank
-
Color:
-
Black/Blue/Red/Grey
-
Product Name:
-
Tire Changer
-
Special:
-
Suitable for 11" -24" stiff flat tyre
-
Description:
-
tyre change machine without turntable

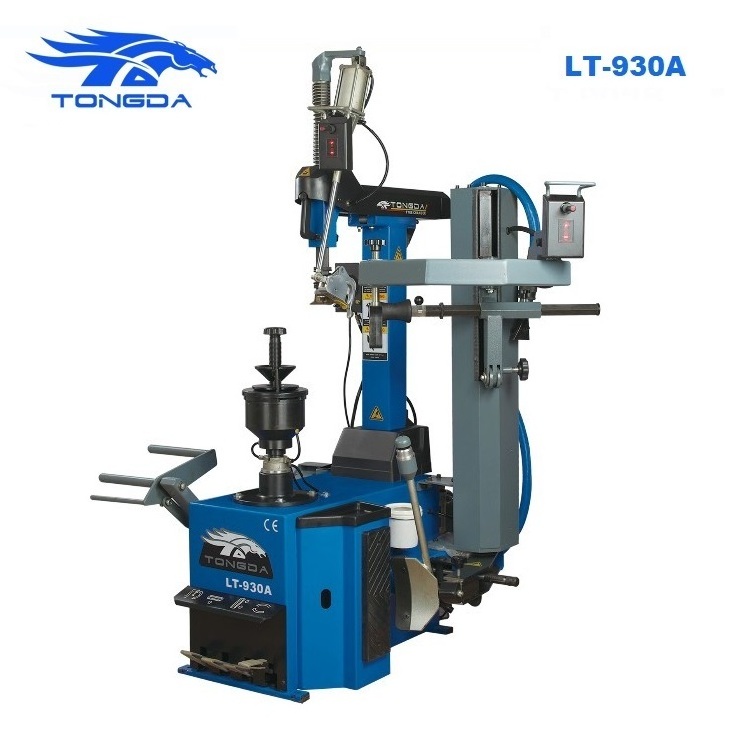

Tongda tire changer LT 930A Leverless 230V full automatic vehicle tire changer for sale
Technical Data
Tyre changer Specification:
|
power supply 380V/50HZ/3PH
|
without turntable |
|
two speed motor: 380V/50HZ/3PH |
rim clamp range 10"-30"
|
|
leverless demount tool
|
Max wheel DIA. 1100mm
|
|
2 position bead breaker
|
Max wheel width 360mm |
| Movable inflation tank |
Function:
Machine cabinet, push-pull arm, tower arm;
Level-less M/D device, new style fixed cast steel cylinder seat for M/D device;
Cylinder can be adjusted the position angel as M/D device requests;
It doesn’t have turntable, and it has unique pneumatic locking device, and the central cone tire fixing method can help the operator to fasten the tire easily.
New type right helper arm has overturning tire pressing block, which can be fitted for many different types of pressing block, and the bend arm can adjust the position of the pressing block.
The main slide square bar is stronger ,more smooth, and more conveniently than former hexagonal bar;
Aluminum pedal valve is not easy to wear out, which can be used for longer service time.;
It has mini tire lift on left side, which will help the operator to carry the tire conveniently;
Moveable bead seater is on the back side of the machine, the operator can inflate the tire as free as he needs;
Two-grade extractable bead breaker, which has the valve on the top of bead breaker handle.
it can be used for various type of tires, the operation is more convenient.
Packaging Details: Delivery Detail: Guarantee:
CARTON OR PLYWOOD CASE Shipped in 30 days after payment
offer 12 months warranty service
