Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Golden Wing
-
Dimension(L*W*H):
-
1640*1280*2700mm
-
Weight:
-
7000 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-

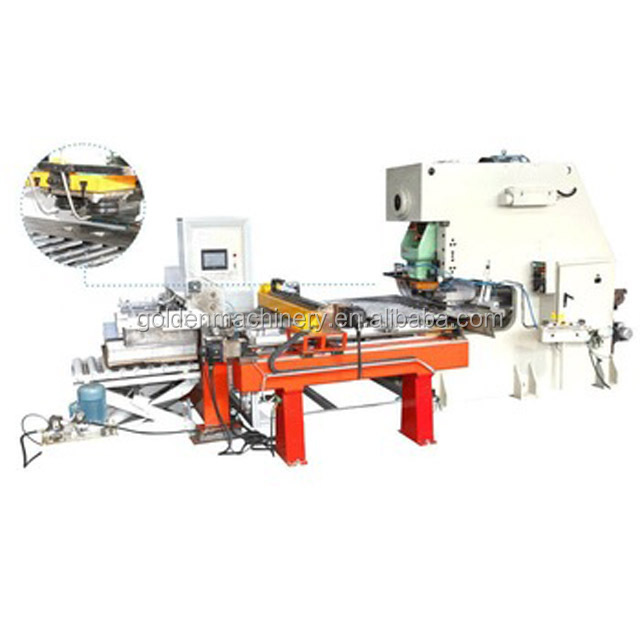

Deep-throat Press For Pull ring bottle cap for beer can Making Machine
-
Machine type:
-
Automatic Packing
-
Function:
-
High Efficiency
-
Certification:
-
CE
Quick Details
-
Application:
-
Beverage, Chemical, Food, Machinery & Hardware
-
Packaging Material:
-
Metal, Wood
-
Voltage:
-
380V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Golden Wing
-
Dimension(L*W*H):
-
1640*1280*2700mm
-
Weight:
-
7000 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
Deep-throat Press For Pull ring bottle cap for beer can Making Machine
-
Machine type:
-
Automatic Packing
-
Function:
-
High Efficiency
-
Certification:
-
CE
| Name |
Deep-throat Press For Pull ring bottle cap for beer Making Machine |
|
Model |
JF21-80T |
| Usage | It's used for tin can lid making |
|
Nominal force |
800KN |
|
Stroke under nominal force |
5mm |
|
Slide block stroke |
140mm |
|
Number of stroke |
60/min |
|
Max die set height |
320mm |
|
Die set height adjustment |
80mm |
|
Distance from slide block centre to the frame |
300mm |
|
Worktable dimensions |
580*1000mm |
|
Dimensions of worktable hole |
Φ200*40*Φ180mm |
|
Thickness of bolster |
120mm |
|
Hole dimensions in bed |
Φ390*520 |
|
Dimension of slide block bottom surface |
420*560mm |
|
Size of the handle hole |
Φ50*80mm |
| Distance between columns of body |
640mm |
| Motor Power | 7.5KW |
| Dimension1640 | 1640*1280*2700mm |
We are a professional manufacturer & exporter specialized in various tin cans making machinery.
As a rich experienced manufacturer & exporter in this field, we always make the most suitable solutions for customers in tin cans / ends making.
‘High quality, competitive price & superior after-sale service’ is our principle.
We are always ready to develop long-term and good relationship with overseas customers.
We provide the following series of products:
Automatic Lid / Ring / Bottom Production Lines
Automatic EOE (easy open ends) Production Lines
Automatic Aerosol Cone / Dome Production Lines
Automatic Twist-off Lug Cap Production Lines
CNC Feeding System
Automatic Palletizer
Automatic Depalletizer
Wrapping Machine
Conveyor Device
Automatic Aerosol Tin Can Production Lines
Automatic Food Tin Can Production Lines
Automatic Beverage Tin Can Production Lines
Automatic Chemical Tin Can Production Lines
Semi-automatic 1-5L Round / Square / Rectangular Tin Can Production Lines
Semi-automatic 10-20L Paint Bucket Production Lines
Semi-automatic 15-18L Square Tin Can Production Lines
Semi-automatic 40-60L Bucket Production Lines
Press Dies
And so on......
‘To be the best supplier’ is the attitude of our company.
We will keep on providing modern and advanced machines to bring greater value-added benefit for our customers.
If you want to know more about us, please don’t hesitate to contact us at any time.
Welcome to our company!
