Quick Details
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
2319*1030*1300mm
-
Machine Weight:
-
1000 kg
-
Bucket capacity:
-
0.13 m³
-
Marketing Type:
-
New Product 2023
-
Product name:
-
Mini Skid Steer Loader
-
Model:
-
HTS450
-
Engine:
-
Briggs &Stratton
-
Rated Power (KW):
-
18.2KW(23HP)
-
Loading Weight:
-
450kgs
-
Bucket Capacity:
-
0.13 m³
-
Travel Speed:
-
0-4.5Km/h
-
Operating Weight:
-
960 Kg
-
Rotating speed (rpm):
-
3600
-
MOQ:
-
1SET
Quick Details
-
Engine Brand:
-
Briggs Stratton/Rato R740
-
Power:
-
18.2KW
-
Brand Name:
-
Hightop
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
2319*1030*1300mm
-
Machine Weight:
-
1000 kg
-
Bucket capacity:
-
0.13 m³
-
Marketing Type:
-
New Product 2023
-
Product name:
-
Mini Skid Steer Loader
-
Model:
-
HTS450
-
Engine:
-
Briggs &Stratton
-
Rated Power (KW):
-
18.2KW(23HP)
-
Loading Weight:
-
450kgs
-
Bucket Capacity:
-
0.13 m³
-
Travel Speed:
-
0-4.5Km/h
-
Operating Weight:
-
960 Kg
-
Rotating speed (rpm):
-
3600
-
MOQ:
-
1SET

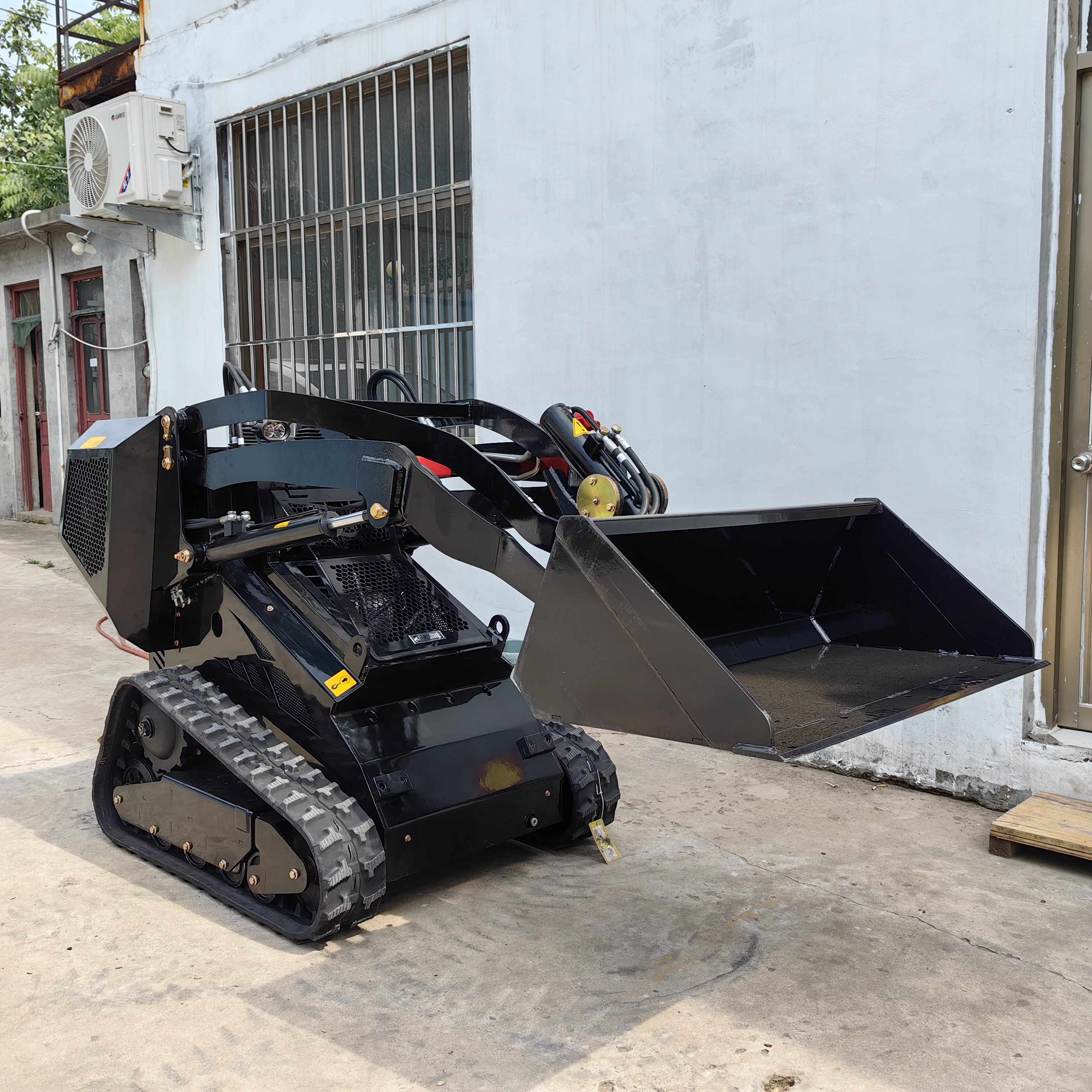

Hightop Loader Attachment Wheel Track Skid Steer Loader With Mulcher Trencher Rock Saw Sweeper Snow Blower Auger Hammer
Crawler mini skid steer loader mini dumper for sale
HTS450 mini dumper is 360° skid steer type, Compact body, easy to handle, with high lifting device and self loading device, reduce
labor. Operating load is 500kg, , widely used in gardens, manufacturing, recycling, roads, buildings, construction, farms and so on.
HTS450 mini dumper is 360° skid steer type, Compact body, easy to handle, with high lifting device and self loading device, reduce
labor. Operating load is 500kg, , widely used in gardens, manufacturing, recycling, roads, buildings, construction, farms and so on.
Product Description
|
Mini Skid Steer Loader HT450
|
|
|
||
|
Item
|
Metric
|
U.S.
|
||
|
Max working height (H3)
|
2474 mm
|
97.4 inch
|
||
|
Max pin height (H2)
|
1977 mm
|
77.83 inch
|
||
|
Max Dumping height (H1)
|
1275 mm
|
50.2 inch
|
||
|
Max Dumping distance(E)
|
175 mm
|
6.89 inch
|
||
|
Max Dumping Angle (a3)
|
70°
|
70°
|
||
|
Rollback of bucket on ground (a2)
|
25°
|
25°
|
||
|
Departure angle (a1)
|
23°
|
23°
|
||
|
Total height (H)
|
1300 mm
|
51.18 inch
|
||
|
Ground clearance (F)
|
120 mm
|
4.72inch
|
||
|
Wheel base (L1)
|
890 mm
|
35.04 inch
|
||
|
Overall length without bucket (L3)
|
1767 mm
|
69.57 inch
|
||
|
Total width (B2)
|
1030 mm
|
40.55 inch
|
||
|
Bucket width (B1)
|
1070 mm
|
42.13 inch
|
||
|
Total length with bucket (L)
|
2319 mm
|
91.3 inch
|
||
|
Turn radius forward turning (R)
|
1440 mm
|
56.69 inch
|
||
|
overall length without the bucket after folding the pedal. (L2)
|
1633 mm
|
64.29 inch
|
||
|
Engine
|
|
|
||
|
Rated Power (KW)
|
18.2KW(23HP)
|
|
||
|
Rotating speed (rpm)
|
3600
|
|
||
|
Noise (Db)
|
≤95
|
|
||
|
Hydraulic System
|
|
|
||
|
Pressure (Mpa)
|
17
|
|
||
|
Working Time (s)
|
|
|
||
|
Raise
|
4
|
|
||
|
Dump
|
1.3
|
|
||
|
Lower
|
3.2
|
|
||
|
Loading Weight
|
390 Kg
|
859.8 Lb
|
||
|
Bucket Capacity
|
0.13 m³
|
4.59 ft³
|
||
|
Max Lifting Force
|
450 Kg
|
992 Lb
|
||
|
Travel Speed
|
0-4.5Km/h
|
2.8 mlie/h
|
||
|
Operating Weight
|
960 Kg
|
2116 Lb
|
||
Packing & Delivery
A full container or by wooden box
