850/900/1800 / 1900MHz bands, can work in GSM networks around the world. * The time of closing or opening of relay is programmable.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
RTU5024 GSM Gate Opener
-
GSM Frequency:
-
Quad-band 850/900/1800/1900MHz
-
Relay:
-
NC/NO dry contact,3A/240VAC
-
DC Power supply:
-
9~24VDC/2A
-
Power Consumption:
-
12V input Max.50Ma/Average 25mA
-
SIM Card:
-
Support 3V SIM Card
-
Antenna:
-
50 Ω SMA Antenna interface
-
Temperature range:
-
-20~+60 °C
-
Humidity range:
-
Relative humidity 90%
-
Exterior dimension:
-
W102mm*D76mm*H27mm
Quick Details
-
Function:
-
Single Service
-
Brand Name:
-
Generic
-
Model Number:
-
RTU5024
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
RTU5024 GSM Gate Opener
-
GSM Frequency:
-
Quad-band 850/900/1800/1900MHz
-
Relay:
-
NC/NO dry contact,3A/240VAC
-
DC Power supply:
-
9~24VDC/2A
-
Power Consumption:
-
12V input Max.50Ma/Average 25mA
-
SIM Card:
-
Support 3V SIM Card
-
Antenna:
-
50 Ω SMA Antenna interface
-
Temperature range:
-
-20~+60 °C
-
Humidity range:
-
Relative humidity 90%
-
Exterior dimension:
-
W102mm*D76mm*H27mm
Product Description

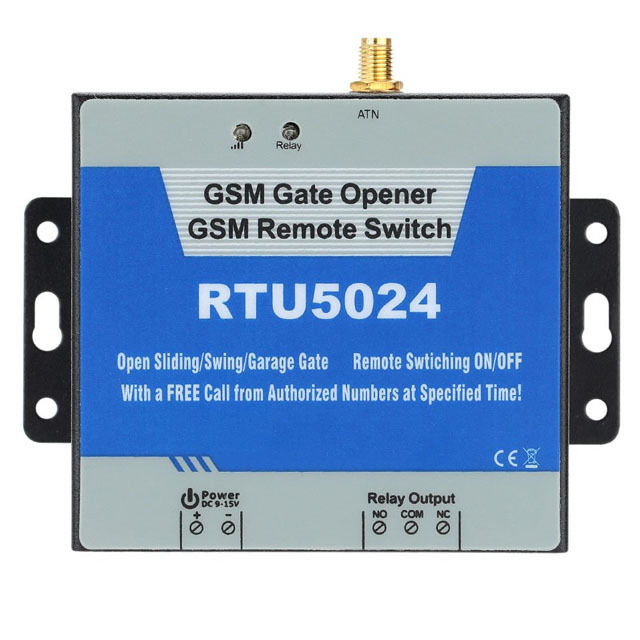

RTU5024 GSM Gate Opener Relay Switch Remote Access Control
Features:
1. Quad-band, can work in the worldwide GSM Networks;
2..No call charges. the GSM Gate Opener/Relay Switch rejects the call from authorized number then carries out the turn ON/OFF action on the first 'ring';
3. Multiple applications. (gates, bollards, barriers, garage doors, shutters and access doors or machines);
4. Secure - Using caller ID for identification, unknown callers are ignored;
5. Can be operated from anywhere, no distance limit;
6. Add or remove users by SMS Text command;
7. No need to provide a remote control or keys for different users;
8. Up to 200 authorized phone numbers can be configured at the specified time;
9. One output with relay rating 3A/240VAC for connecting the switch of the door or machines;
10. The relay action will return a SMS confirmation to the owner or authorized call in number, this function is editable by user;
11. The relay close or open time is programmable;
12. Based on GSM network, applied to many applications.
13. Smart phone APP for configuration.
CTN Details:
RTU5024 GSM Gate Opener Relay Switch Remote Access Control
45x35x 32 cm
50pcs/ctn
12kgs
|
Specifications:
|
|
|
|
3G Network:
|
WCDMA CDMA2000 Optional
|
|
|
GSM Frequency:
|
850/900/1800/1900Mhz
|
|
|
Relay:
|
NC/NO dry contact,3A/240VAC
|
|
|
DC Power supply:
|
9~24VDC/2A
|
|
|
Power Consumption:
|
12V input Max.50Ma/Average 25mA
|
|
|
SIM Card:
|
Support 3V SIM Card
|
|
|
Antenna:
|
50 Ω SMA Antenna interface
|
|
|
Temperature range:
|
-20~+60 °C
|
|
|
Humidity range:
|
Relative humidity 90%
|
|
Safe - Using caller ID for identification, unknown callers are ignored. * Add or remove users from the SMS text command.
No call charges. The Relay GSM switch answers the call from an authorized number then executes the turn ON / OFF to the first 'ring'.
