Quick Details
-
Control System Brand:
-
Cypcut
-
Cutting Area:
-
4320*2250*1950mm
-
Cutting Thickness:
-
0.2~40mm
-
Control Software:
-
Cypcut
-
Place of Origin:
-
China
-
Brand Name:
-
blue elephant
-
Weight (KG):
-
15000 KG
-
Product name:
-
Fiber Laser Metal Cutting Machine
-
Keyword:
-
Fiber Laser Cuting Machine
-
Function:
-
Cutting Metal Materials
-
After-sales Service Provided:
-
Online Support
-
Cutting materials:
-
Stainless Steel Carbon Steel
-
Model:
-
Processing Metal
-
Working area:
-
4320*2250*1950mm
-
Fiber Laser Source:
-
1kW - 6kW
-
After Warranty Service:
-
Support Online Support
-
Color:
-
Blue-white
Quick Details
-
Laser Type:
-
Fiber Laser
-
Cutting Speed:
-
140meter/min
-
Cooling Mode:
-
WATER COOLING
-
Control System Brand:
-
Cypcut
-
Cutting Area:
-
4320*2250*1950mm
-
Cutting Thickness:
-
0.2~40mm
-
Control Software:
-
Cypcut
-
Place of Origin:
-
China
-
Brand Name:
-
blue elephant
-
Weight (KG):
-
15000 KG
-
Product name:
-
Fiber Laser Metal Cutting Machine
-
Keyword:
-
Fiber Laser Cuting Machine
-
Function:
-
Cutting Metal Materials
-
After-sales Service Provided:
-
Online Support
-
Cutting materials:
-
Stainless Steel Carbon Steel
-
Model:
-
Processing Metal
-
Working area:
-
4320*2250*1950mm
-
Fiber Laser Source:
-
1kW - 6kW
-
After Warranty Service:
-
Support Online Support
-
Color:
-
Blue-white
Products Description

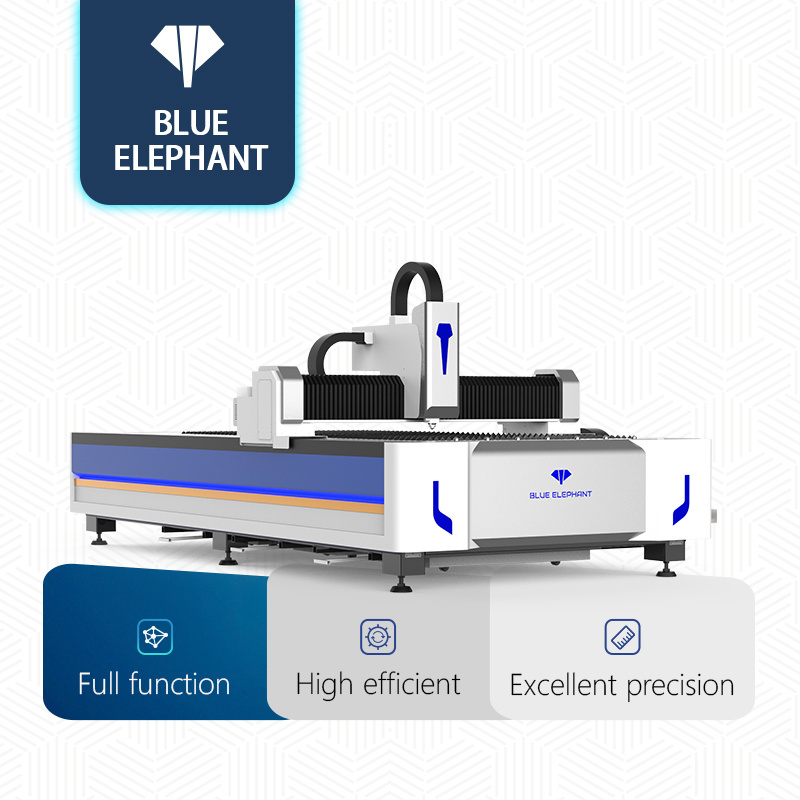

Entry Level Fiber Laser Metal Cutting Machine for Sheet Metal Laser Cutter Blue Elephant Aluminium Cutter At Affordable Price
This sheet metal fiber laser cutter is an ideal entry level laser cutting machine for you to process the metal materials. With easy operation and simple maintenance, this machine can provide users powerful cutting ability and efficiency.
1. Intelligent automatic focusing laser head
Automatic focusing mode of the laser head reduces human interference with a focusing speed of 10m/min and repeated positioning accuracy of 50um.
2. Aviation aluminum beam
Aviation aluminum is corrosion resistant, lightweight and highly rigid, guaranteeing high speed laser cutting. Besides, it also guarantee the excellent cutting precision due to the perfect dynamic performance such as anti-twisting, anti-tilting and anti-deformation.
3. High quality thick wall carbon steel plate welding bed
High strength machine bed is more stable and durable. After 600℃ stress relief annealing treatment, the machine bed has strong structural rigidity. The overall mechanical structure of the machine has small deformation, low vibration, ensure cutting accuracy.
4. Integrated large volume dust removal system
The dust removal system can remove all the smoke generated from the cutting process with large air volume. This helps protect the operator’s health and the working environment.
5. Automatic lubrication system
Automatic lubrication method saves more human labor, reduces maintenance time, and greatly improves work efficiency.
Product Details
Automatic lubrication system
Whole body layout, automatic lubrication of guide rails and racks.
Automatic focusing laser head
Laser head follow-up function Follow the change of the height of the board, don't worry about the unevenness of the board affecting the cutting effect.
Max Laser Source
Raycus/Max/IPG, multiple choice different brands, different laser power are available. The higher power, the thicker cutting thickness.
Servo Motor
By adding and improving vibration suppression function, it can improve the following performance and shorten the setting time.
The aviation aluminum beam
The fiber laser cutting machine beam is processed by T6 heat treatment process to make the beam obtain the highest strength.
Thick-walled carbon steel plate welding bed
Adopting high-quality carbon plate steel welding bed, it is more stable and durable than normal tube welding bed. The
high-strength machine tool adopts 600 ℃ stress relief annealing treatment, which has strong structural rigidity, small deformation, and low vibration to ensure cutting accuracy.
high-strength machine tool adopts 600 ℃ stress relief annealing treatment, which has strong structural rigidity, small deformation, and low vibration to ensure cutting accuracy.
Product Paramenters
|
Model
|
ELECNC-1530F
|
ELECNC-2040F
|
ELECNC-2560F
|
||
|
Machine size
|
4320*2250*1950mm
|
5350*2800*1950mm
|
5350*3350*1950mm
|
||
|
Working area (mm)
|
1515*3030
|
2020*4040mm
|
2525*6050mm
|
||
|
Max. acceleration
|
1.5G
|
1.5G
|
1.5G
|
||
|
Worktable
|
Rolling blade
|
|
|
||
|
Positioning accuracy
|
±0.03mm
|
|
|
||
|
Repositioning accuracy
|
±0.02mm
|
|
|
||
|
Laser power
|
1kW - 6kW
|
|
|
||
|
Machine bed
|
Plate welded bed
|
|
|
||
|
Laser
|
Multiple options
|
|
|
||
|
Focusing method
|
Auto/manual
|
|
|
||
|
Servo motor and driver
|
YASKAWA/FUJI
|
|
|
||
|
Reducer
|
Shimpo
|
|
|
||
