Quick Details
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.05 mm
-
Place of Origin:
-
shandong
-
Brand Name:
-
CAMEL CNC
-
Voltage:
-
AC380V, three phase 50/60Hz
-
Dimension(L*W*H):
-
1300*2500*250mm
-
Weight (KG):
-
2200
-
Lathe Bed:
-
Strong double layer nesting lathe bed
-
Spindle Motor:
-
HQD 9kw air cooled spindle special for tool changer
-
Inverter:
-
11KW Fuling inverter
-
Control System:
-
Taiwan LNC2200 control system
-
Typeset Software:
-
Leadshine 1500w Servo motor and drive
-
Tools cooling:
-
Oil sprayer pump
-
Software:
-
Ucancam, Artcam,JDpanint etc.
-
Running circumstance:
-
Temperature: 0℃~45℃, Relative humidity: 30%~75%
-
Electricity cabinet:
-
Independent Cabinet
Quick Details
-
Working Table Size(mm):
-
1300×2500
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
0 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.05 mm
-
Place of Origin:
-
shandong
-
Brand Name:
-
CAMEL CNC
-
Voltage:
-
AC380V, three phase 50/60Hz
-
Dimension(L*W*H):
-
1300*2500*250mm
-
Weight (KG):
-
2200
-
Lathe Bed:
-
Strong double layer nesting lathe bed
-
Spindle Motor:
-
HQD 9kw air cooled spindle special for tool changer
-
Inverter:
-
11KW Fuling inverter
-
Control System:
-
Taiwan LNC2200 control system
-
Typeset Software:
-
Leadshine 1500w Servo motor and drive
-
Tools cooling:
-
Oil sprayer pump
-
Software:
-
Ucancam, Artcam,JDpanint etc.
-
Running circumstance:
-
Temperature: 0℃~45℃, Relative humidity: 30%~75%
-
Electricity cabinet:
-
Independent Cabinet
PRODUCT DESCRIPTION

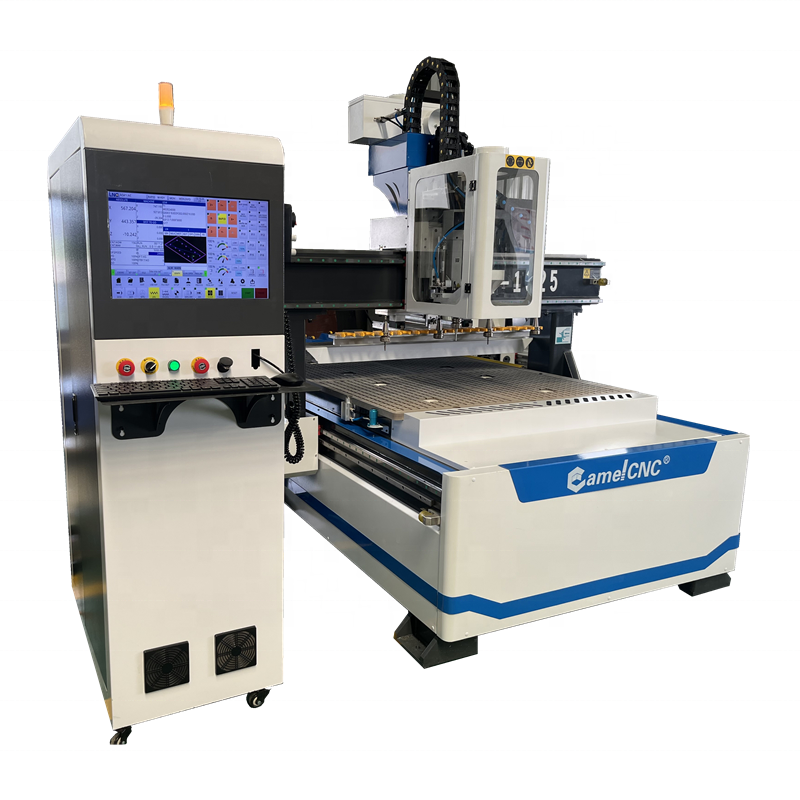

Best-selling in Europe and South America ATC CNC Router CA-1325 Nesting Line Automatic Furniture Woodworking CNC Router Machines
Application
1. Woodworking Industry: MDF, wood, acrylic, PVC, double-color board, brass, aluminum, marble, crystal.
2.Advertising industry: advertising billboard, sign making, acrylic cutting, graphic mold forming and processing of many kinds of advertising terms.
3.Architectural model industry: metal models of copper, aluminum, iron etc, and non-metal models, such as artificial marble, grave, plastic board, PVC, board etc.
4.Other industry: image engraving, embossing, craft and gift industry
2.Advertising industry: advertising billboard, sign making, acrylic cutting, graphic mold forming and processing of many kinds of advertising terms.
3.Architectural model industry: metal models of copper, aluminum, iron etc, and non-metal models, such as artificial marble, grave, plastic board, PVC, board etc.
4.Other industry: image engraving, embossing, craft and gift industry
main parts & Features
1.Super quality HQD 9kw air cooled auto-tool changer spindle.
2.Taiwan Imported linear guide rail keep high working precision.
3.Famous 1500w servo motor and driver ensures machine to run with fast speed and low noise.
4.With movable 12 pieces auto-tool changer and auto tool sensor.
5.Taiwan LNC2200 ATC control system, which can change tools alternatively, tool sensor to compensate the tolerance of tool length.
6.High accuracy, long service time, steady movement and good starting performance, great torque, fulfilling the advantage of working with fast and high efficiency.
2.Taiwan Imported linear guide rail keep high working precision.
3.Famous 1500w servo motor and driver ensures machine to run with fast speed and low noise.
4.With movable 12 pieces auto-tool changer and auto tool sensor.
5.Taiwan LNC2200 ATC control system, which can change tools alternatively, tool sensor to compensate the tolerance of tool length.
6.High accuracy, long service time, steady movement and good starting performance, great torque, fulfilling the advantage of working with fast and high efficiency.
TECHNHICAL DATA
|
No
|
Name
|
Specification
|
|
1
|
X,Y,Z Working Area
|
1300X2500x200mm
|
|
2
|
X,Y,Z,Traveling Positioning Accuracy
|
±0.02/300mm
|
|
3
|
X,Y,Z,Repositioning Positioning Accuracy
|
±0.03mm
|
|
4
|
Lathe Bed
|
Strong double layer nesting lathe bed
|
|
5
|
Gantry
|
Steel structure gantry design
|
|
6
|
Guide Rail
|
Taiwan imported Square Guide Rail with X,Y,Z axis
|
|
7
|
XY Z Transmission
|
Gear rack with X and Y axis Imported Ball Screw with Z axis
|
|
8
|
Spindle Motor
|
HQD 9kw air cooled spindle special for tool changer
|
|
9
|
Max. Speed
|
0-65000mm/min
|
|
10
|
Max. Working Speed
|
0-25000mm/min
|
|
11
|
Spindle Speed
|
0-24000RPM
|
|
12
|
Working Voltage
|
AC380V, three phase 50/60Hz
|
|
13
|
Command
|
G Code, *uoo, *mmg, *plt etc
|
|
14
|
Inverter
|
11KW Fuling inverter
|
|
15
|
Control System
|
Taiwan LNC2200 control system
|
|
16
|
Typeset Software
|
JDpaint(can support any G-code software)
|
|
17
|
Motor&Drive
|
Leadshine 1500w Servo motor and drive
|
|
18
|
Tools cooling
|
Oil sprayer pump
|
|
19
|
Tool Magazine
|
12pcs ISO30 tool holder
|
|
20
|
Electricity cabinet
|
Independent Cabinet
|
|
21
|
Tool sensor
|
Auto tool sensor
|
|
22
|
Collet
|
ER32
|
|
23
|
X,Y Working Delicacy
|
<0.01mm
|
|
24
|
Software
|
Ucancam, Artcam,JDpanint etc.
|
|
25
|
Running circumstance
|
Temperature: 0℃～45℃, Relative humidity: 30%～75%
|
Service&Support
Quality Guarantee:
Seller provides 3 years warranty time for Contract equipment except wearing parts and whole life maintains service
Seller provides 3 years warranty time for Contract equipment except wearing parts and whole life maintains service
