Quick Details
-
Pins:
-
4p, 5P, 3P, 2P
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Jnicon
-
Model Number:
-
M12
-
Brand:
-
Jnicon
-
Certificate:
-
CCC/CE/RoHS/SAA/UL
-
Connector type:
-
Screw Locking/ Mini Bayonet
-
Pin:
-
2/3/4/5pin
-
Contact material:
-
Copper Alloy Plated
-
Current rating:
-
10A
-
Withstand Voltage:
-
1500v
-
Protection Level:
-
IP68/IP67
-
Operating temperat:
-
-40℃~105℃
-
Usage:
-
Street Light/Tunnel Lamp/ Flood Light
Quick Details
-
Type:
-
ADAPTER
-
Application:
-
Automotive
-
Gender:
-
Female
-
Pins:
-
4p, 5P, 3P, 2P
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Jnicon
-
Model Number:
-
M12
-
Brand:
-
Jnicon
-
Certificate:
-
CCC/CE/RoHS/SAA/UL
-
Connector type:
-
Screw Locking/ Mini Bayonet
-
Pin:
-
2/3/4/5pin
-
Contact material:
-
Copper Alloy Plated
-
Current rating:
-
10A
-
Withstand Voltage:
-
1500v
-
Protection Level:
-
IP68/IP67
-
Operating temperat:
-
-40℃~105℃
-
Usage:
-
Street Light/Tunnel Lamp/ Flood Light

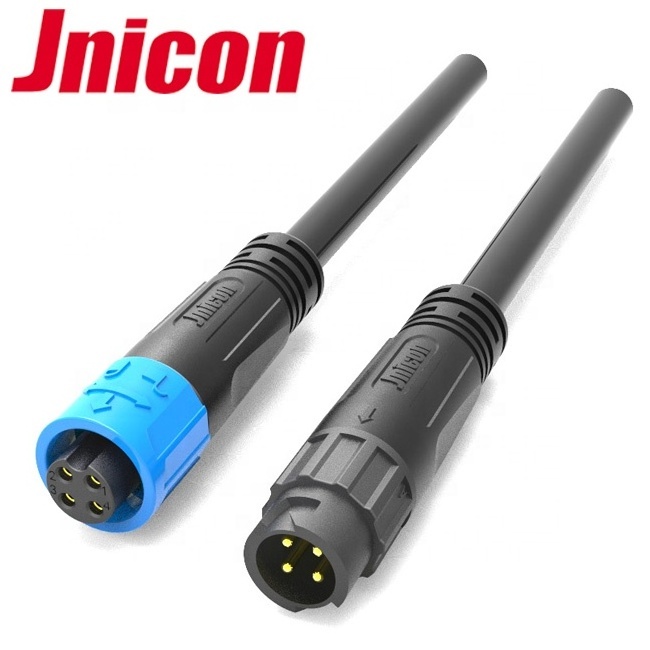

M12 Connector 2 3 4 5 Pin Cable molded IP67 waterproof Connector for Wall Washer Light for Wall Washer Light
Welcome to Jnicon!!!
Product Description
- Jnicon M12 series waterproof connectors provide universal application and good looking, used for varies industries;
- There connection option: Screw Locking, bayonet and Push locking
- Pre-wired type upon different cable specification;
- Any cable length is available and terminal processing
- Different color could be choosed for distinguishment.
| Operation Parameters | |
| Voltage Rating | 300VAC max |
| Current Rating | 10A max |
| Min Wire Size OD | 3.0mm ~ 6.5mm |
| Max Wire Size OD | 6.5mm ~ 9.0mm |
| Max.Cable Cross Section Area | 0.5mm2 ~ 1.5mm2 |
| Electrical Parameters | |
| Number of Poles | m12 connector 2 3 4 5 pin |
| Current Rating |
10A max |
| Voltage Rating | 300VAC max |
| Durability Voltage |
1500VAC @ 60 s.
|
| Technical Parameters | |
| Contact Resistance | 10 mΩ max |
| Insulation Structure | 500 MΩ at 500VDC |
| Operating Temperature | -40°C ~ +105°C |
| IP Class | IP67 (1m / 30min) |
| Mold Material | PA66 |
| Contact/Terminal Material | Gold Plated Brass |
| Seal Material | Silicone |
