Quick Details
-
Product name:
-
35HP Wheel Tractor
-
Model:
-
QLN-354
-
Dimensions(mm):
-
3215*1560*2640 mm
-
Engine:
-
4 Cylinder Diesel Engine
-
Gear Shift:
-
8F+2R Shuttle Shift
-
Tyres:
-
6.5-16/9.5-24
-
Min. Ground clearance:
-
300mm
-
Feature:
-
High Efficiency
-
Implements:
-
Plough Harrow Cultivator Trailer Mower
-
Color:
-
Customer Requirements
Quick Details
-
Brand Name:
-
CHALION
-
Place of Origin:
-
Henan, China
-
Weight:
-
1700 KG
-
Product name:
-
35HP Wheel Tractor
-
Model:
-
QLN-354
-
Dimensions(mm):
-
3215*1560*2640 mm
-
Engine:
-
4 Cylinder Diesel Engine
-
Gear Shift:
-
8F+2R Shuttle Shift
-
Tyres:
-
6.5-16/9.5-24
-
Min. Ground clearance:
-
300mm
-
Feature:
-
High Efficiency
-
Implements:
-
Plough Harrow Cultivator Trailer Mower
-
Color:
-
Customer Requirements
Products Description
Chalion Mini QLN-354 4X4 Agricultural Tractors Compact Tractor 4X4 Small 35 HP Farm Tractor With Front Loader In Australia
Product advantages:
2. The tractors adopt s ingle disc,dry,single-function Type.
3.Cheap farm tractor's wheel tread F/R (mm) use 1250 / 1100-1300 .
4.Our tractors use 25 L fuel tank.
5.The tractor's PTO speed is 540/720 rpm.Linkage equipped I Rear Mount 3-point.
|
Model
|
QLN-354
|
|
|
||
|
|
Length×Width×Height(mm)
|
3215*1560*2640
|
|
||
|
|
Wheel Tread(mm)
|
Front Wheel(mm)
|
1250
|
||
|
|
|
Rear Wheel(mm)
|
1100-1300
|
||
|
|
Min.Ground Clearance(mm)
|
300
|
|
||
|
|
Engine brand
|
YANGDONG/LAIDONG
|
|
||
|
|
Engine Model
|
Direct-injection,water-cooled 4-cylinders diesel engine
|
|
||
|
|
Number of Cylinder
|
4
|
|
||
|
|
Cooling System Type
|
Water Cooled
|
|
||
|
|
Rated Power(kw)
|
25.7
|
|
||
|
|
Rated Speed(r/min)
|
2300
|
|
||
|
Fuel Tank
|
Volume(L)
|
25/30
|
|
||
|
Transmission System
|
Clutch
|
Single disc,dry,single-function
|
|
||
|
|
Gear Box
|
8F+2R Shuttle Shift
|
|
||
|
Braking System
|
Built-in, single-pole spur gear
|
|
|
||
|
|
|
Front tyre
|
6.00-16
|
||
|
|
|
Rear tyre
|
9.5-24
|
||
|
Steering System
|
Hydraulic Steering
|
|
|
||

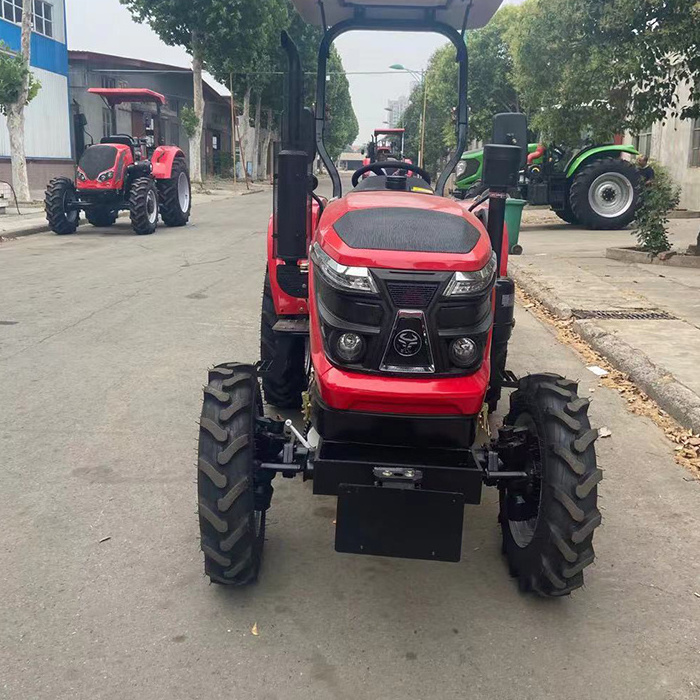

Product pictures:
Product details:
Small 3/4-cylinders diesel engine, water-cooled diesel engine, energy saving, low fuel consumption, good performance
Newly designed front axle, bevel gear drive shaft, hydraulic steering, simple structure, stable and reliable performance.
The gear configurations of F8+R2 makes that the velocity distribution is reasonable to meet different operating needs.
Rear-mounted type I three-point suspension, and can be equipped with one set or two sets hydraulic output, strong ability.
