- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
leytemed
-
Model Number:
-
LTSG13
-
Material:
-
other, Stainless Steel
-
Shelf Life:
-
1 years
-
Quality Certification:
-
CE
-
Product name:
-
Electrosurgical Generator
-
MOQ:
-
1 Set
-
Certificate:
-
CE ISO
-
Packing:
-
Carton Box
-
Power:
-
220V±22V, 50Hz±1;
-
Type:
-
CF
-
Power Consumption:
-
≤1100VA (Cut function 400W)
-
Function:
-
400w Six Mode
-
OEM:
-
Accept OEM
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
leytemed
-
Model Number:
-
LTSG13
-
Material:
-
other, Stainless Steel
-
Shelf Life:
-
1 years
-
Quality Certification:
-
CE
-
Product name:
-
Electrosurgical Generator
-
MOQ:
-
1 Set
-
Certificate:
-
CE ISO
-
Packing:
-
Carton Box
-
Power:
-
220V±22V, 50Hz±1;
-
Type:
-
CF
-
Power Consumption:
-
≤1100VA (Cut function 400W)
-
Function:
-
400w Six Mode
-
OEM:
-
Accept OEM

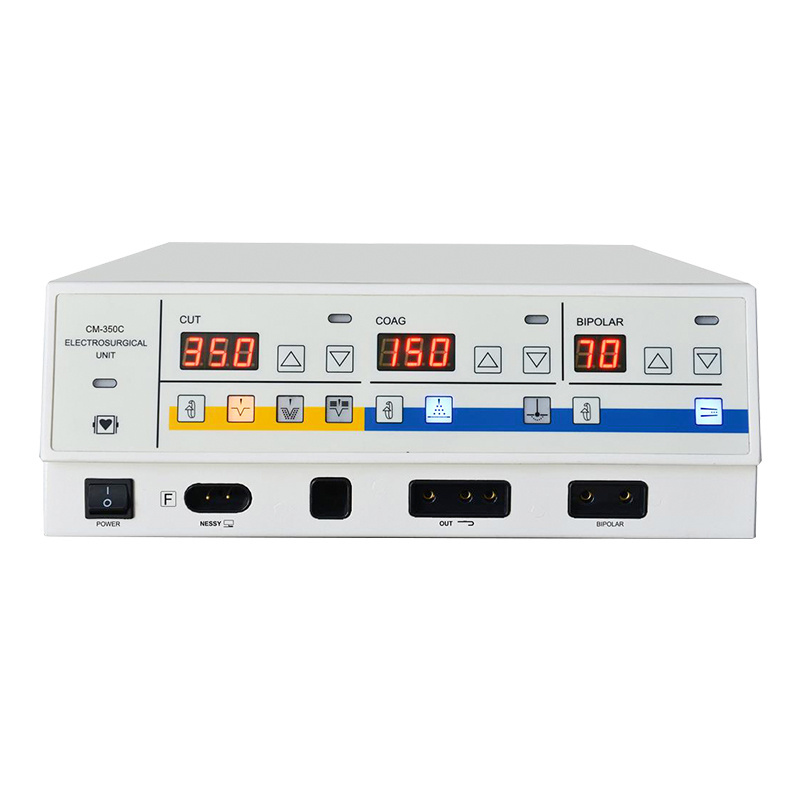

Product Picture
Product Application:
* Applicable for general surgery, thoracic surgery, orthopedics, obstetrics and gynecology, urologic surgery, cerebral surgery, microsurgery, ENT surgery and etc.
* Applicable for general surgery, thoracic surgery, orthopedics, obstetrics and gynecology, urologic surgery, cerebral surgery, microsurgery, ENT surgery and etc.
Products Description
Product Features:
1. With high performance neutral electrode contact inspection system, system will test and evaluate the effective contact area between electrode and derma, if the contact area was found low to a danger level, system will automatic cutout and gives alarm indication.
1. With high performance neutral electrode contact inspection system, system will test and evaluate the effective contact area between electrode and derma, if the contact area was found low to a danger level, system will automatic cutout and gives alarm indication.
2. Owns memory function, reserves the last time used data.
3. High definition large LED indication, with audio&visual indication.
4. Main unit has automatic monitoring function and mistake indication function.
5. Automatic compensation function stabilize output power, make depletion to its lowest.
6. Can cut underwater, including organic cut in rich fat area.
3. High definition large LED indication, with audio&visual indication.
4. Main unit has automatic monitoring function and mistake indication function.
5. Automatic compensation function stabilize output power, make depletion to its lowest.
6. Can cut underwater, including organic cut in rich fat area.
|
Technical Parameters
|
|
|
|
Ambient temp. range
|
5℃~40 ℃
|
|
|
Relative Humidity Range
|
≤80;
|
|
|
Atmospheric Pressure Range
|
86.0~ 106.0kpa;
|
|
|
Power
|
220V±22V, 50Hz±1;
|
|
|
Operating Freq
|
330~460kHz;
|
|
|
Rated Power
|
1100VA±10%;
|
|
|
Type
|
CF
|
|
|
Power Consumption
|
≤1100VA (Cut function 400W)
|
|
|
Six output mode
|
a) Cut: 400W (Load 500Ω)
b) Blend 1: 250W (Load 500Ω) c) Blend 2: 200W (Load 500Ω) d) Spray Coag.: 120W (Load 500Ω) e) Contact Coag.: 80W (Load 500Ω) f) Standard bipolar Coag.: 70W (Load 100Ω) |
|
|
Cut
|
Pure cut, can make easy operation for any organic, the effect is refine cut, no escharosis on the surface.
|
|
Blend 1
|
The effect is cut with tiny coagulation.
|
|
Blend 2
|
Can use this function together with Endoscope, the effect is offering a better coagulation during cut.
|
|
Electro Coag 1
|
Called strength electrocoagulation, or called surface coagulation, for a deep coagulation layer for organic, small effect area, can use this function together with Endoscope.
|
|
Electro Coag 2
|
Called soft coagulation, or called point coagulation, faster coagulation, large effect area, can use this function together with endoscope.
|
|
Bipolar Coag
|
Called rapid Bipolar coagulation, to provide coagulation function rapidly at boot, which can prevent organic's adhesion.
|
