Quick Details
-
Product name:
-
led copper bus bar pcb screw 5 mm sealed terminal block
-
Color:
-
Green 2 pin 12v connectors
-
Pitch:
-
3.5mm/3.81mm
-
Material:
-
PA66plastic
-
Rated voltage:
-
300V electrical busbar connectors
-
Rated Current:
-
16A
-
Poles:
-
2P-24P
-
Certificate:
-
CQC terminal blocks
-
Screw:
-
Copper Zin plated
-
Contatct resistance:
-
20mΩ
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
SK(ShangKai)
-
Model Number:
-
YX copper pcb screw 5mmterminal block
-
Product name:
-
led copper bus bar pcb screw 5 mm sealed terminal block
-
Color:
-
Green 2 pin 12v connectors
-
Pitch:
-
3.5mm/3.81mm
-
Material:
-
PA66plastic
-
Rated voltage:
-
300V electrical busbar connectors
-
Rated Current:
-
16A
-
Poles:
-
2P-24P
-
Certificate:
-
CQC terminal blocks
-
Screw:
-
Copper Zin plated
-
Contatct resistance:
-
20mΩ

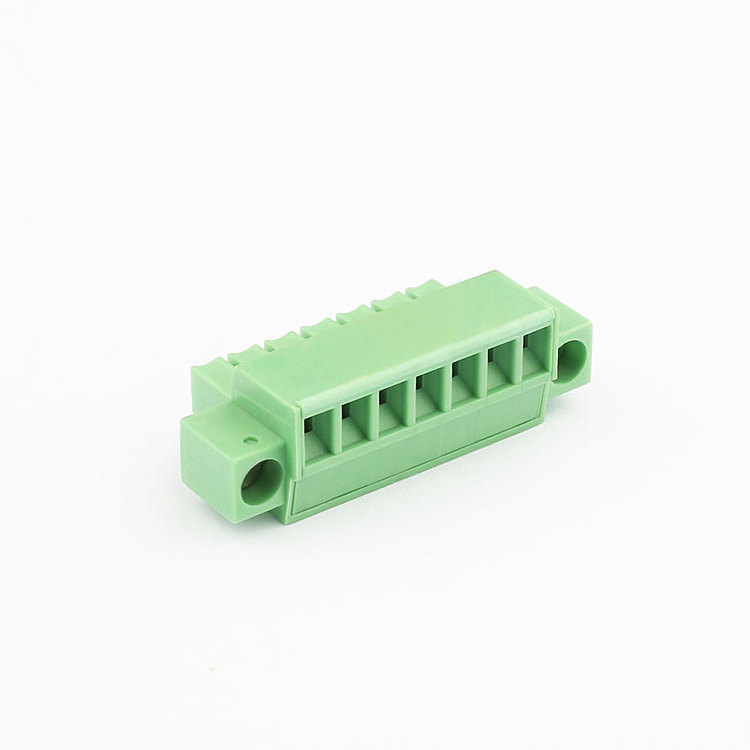

led copper bus bar pcb screw 5 mm sealed terminal block
Product Description
| Material | |
| Contact | Brass, Tin Plated |
| Housing | PA66 ,UL94V-0 |
| Color | Green pa66 terminal connector |
| Environmental | |
| Operating temperature |
-40
°C
~ 150
°C
|
| Short-time temperature | +250 °C for 5 sec |
| Electrical | |
| Rated voltage | 300V connector blocks |
| Rated current | 16A 2 pins connector |
| Contact resistance | 20m Ω |
| Insulation resistance | >5000M Ω DC500V |
| Withstanding voltage | AC2000V/1Min |
