1. Inclined platform wheelchair lift is used in public places of residential buildings and stairwells. 2. This is a reasonable and compact folding light folding platform It does not need to empty the stairs to save enough space and does not affect the passage of other people. 3. An ideal solution to provide wheelchair access for enterprises and consumers. 4. Divide them into straight and curved shapes to meet your needs.

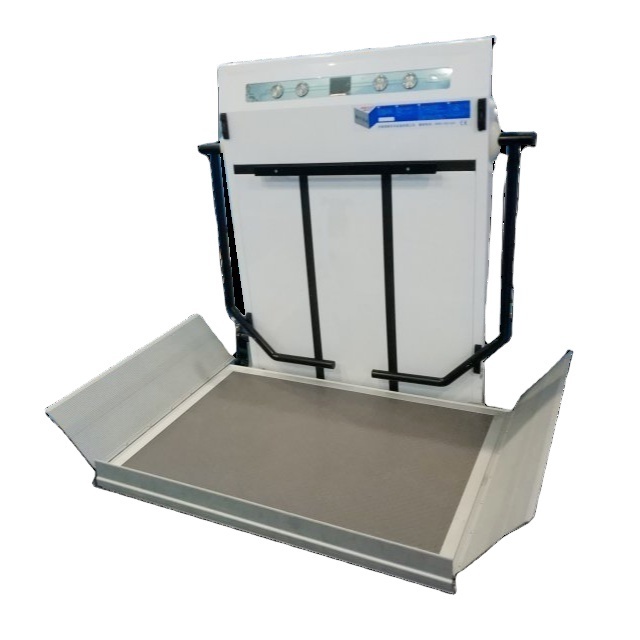

Disability platform lift for wheelchair platform lift with ramp
Features
1. Manned platform operating system control (standard), constant button switch without lock, DC 24V, equipped with emergency stop switch. 2. Call station operation control (standard): constant platform operation direction switch without lock; manual closing panel, constant voltage switch; power lock, DC 24V. 3. Surface treatment: durable electrostatic spray paint, sea grey paint, polished stainless steel and standard color can be selected. 4. Bending safety arm: 880mm automatic safety arm is installed on the upper platform. 5. Pedestrian safety warning lamp: before and after the installation of the platform, yellow light tubes are emitted at both ends of the floor. 6. Overspeed safety device: installed at the bottom of guide rail, equipped with mechanical overspeed sensor and brake, as well as electronic drive circuit breaker protection. 7. The ground and slope safety sensor board of the manned platform can detect obstacles, such as the Internet, which will stop running even if encountering obstacles. 8. Folding platform and manned platform can be lowered manually in case of emergency. The platform allows stairs to fly in maximum space.
Disability platform lift for wheelchair platform lift with ramp
|
Platform size
|
1120mm*800mm(Non-standard size)
|
|
Load capacity
|
250kg
|
|
Speed
|
0~7M/MIN /0-7m/min
|
|
|
Slow down when reaching or leaving platforms
|
|
Drive system
|
1.5KW-VVVFcompact drive system
|
|
Guide rail
|
Independent driving system and rails makes one body, guard rail and posts are made of 304 SS.
|
|
Power
|
AC 220/380V 50Hz-60Hz,15AAC 220/380V 50Hz-60Hz,15A
|
|
communication
|
Carrier communication
|
|
Platform operation
|
Emergency STOP button to bring the lift to an immediate stop,Key switch to enable use of the pendant control buttons,DC24V
|
|
Remote call station buttons
|
Used to call/send the lift and fold/unfold the platform (call send only works with platform folded up)
|
|
Surface
|
Durable static powder coat and stoving varnish, optional color
|
|
Safety arms
|
Automatically safety arms installed 880mm high on the platform
|
|
Safety warning lighting
|
The yellow landing light is mounted in view of each landing and the travel of the lift, either at the middle landing or in the middle of travel The landing light flashes to indicate that the unit is in use.
|
|
Over-speed governor
|
The over-speed governor is a safety device located at the lower end of the rail. It will activate to quickly bring the lift to a stop if it is descending down the stairs too quickly.
|
|
Obstruction sensors
|
Stop working when encounter an obstacle
|
|
Manual toggle key
|
Manual descend the platform and fold the platform in emergency
|
|
Drive system
|
Rope sprocket drive system
|
|
Direction system
|
Modular guide rail system
|
|
Control system
|
PLC control
|
|
Overload protection
|
Relay protection device
|
|
Guard plate
|
Three side, Two side automatic
|
|
Emergency stop
|
Located on the platform control panel can be pressed in an emergency to stop the lift.
|
|
Safety interlock
|
No working if safety devices not in its position
|
|
Safety edge
|
Stop working when encounter an obstacle
|
|
Power-off control
|
Manual folding when power off
|
Disability platform lift for wheelchair platform lift with ramp
1. Established early
Jinan Honty lift was founded in 2005, which is one of the main manufacturer of hydraulic equipments
2. Mature technology
we took the development on the technology of hydraulic lifting table as well as elevator,We have excellent equipment,advanced technology, perfect detection method and skilled technicians
3. Good reputation
we are also given the honor of “Company with good credit” by the Chinese Government. and
now we are the main number of the manufacturer of Lifting, Transportation, Stocking and Logistics of China as well
4. Many kinds of products
we have 12 series, more than 100 models products, main business is to design and manufacture non-standard product.
5. CE&ISO
Our products approved -CE&ISO,
6. Exported to many countries
Products are exported to Europe ,North America ,South America, Mid-east, Southeast Asia ,Easten Asia,etc.and got good reputation.
