Quick Details
-
Place of Origin:
-
Shanghai, China
-
Pressure:
-
Hydraulic
-
Structure:
-
Tube
-
Weight:
-
1.5
-
Maximum pressure:
-
207Bar
-
Maximum Flow Rate:
-
11.4L/min
-
Material:
-
Carbon Steel
-
Temperature:
-
-40~120℃
-
Cavity:
-
VC08-4
Quick Details
-
Warranty:
-
1 Year
-
Valve type:
-
Directional Control Valve
-
Brand Name:
-
Mayroth
-
Place of Origin:
-
Shanghai, China
-
Pressure:
-
Hydraulic
-
Structure:
-
Tube
-
Weight:
-
1.5
-
Maximum pressure:
-
207Bar
-
Maximum Flow Rate:
-
11.4L/min
-
Material:
-
Carbon Steel
-
Temperature:
-
-40~120℃
-
Cavity:
-
VC08-4
Specification
|
Product Name
|

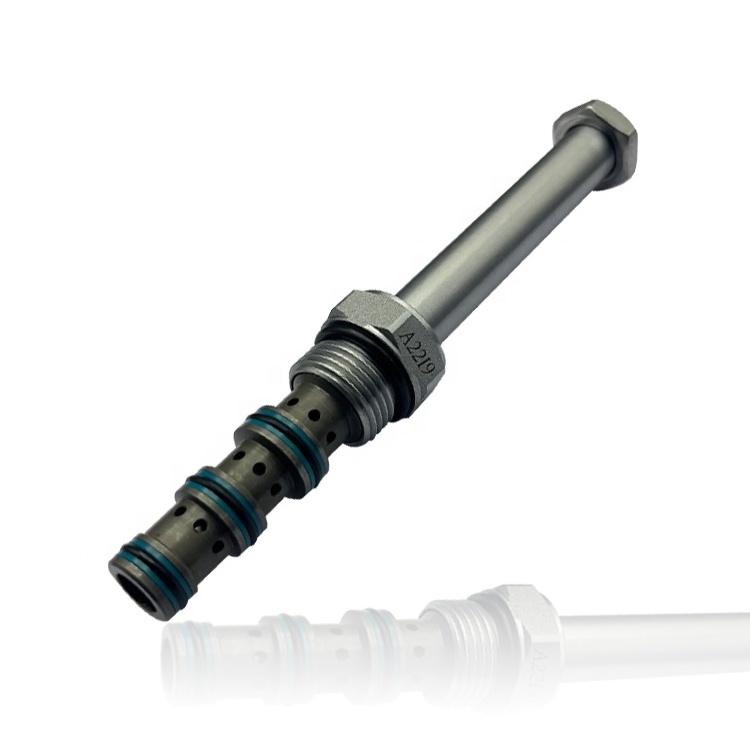

Solenoid Cartridge Valves
|
|
Model No.
|
MSV08-47B (3 Position 4 Way)
|
|
Operating Pressure
|
210Bar
|
|
Internal Leakage
|
300ml/min
|
|
Rated Flow
|
11.4L/min
|
|
Temperature
|
-40℃~120℃
|
|
Cavity
|
VC08-4
|
