Main Features

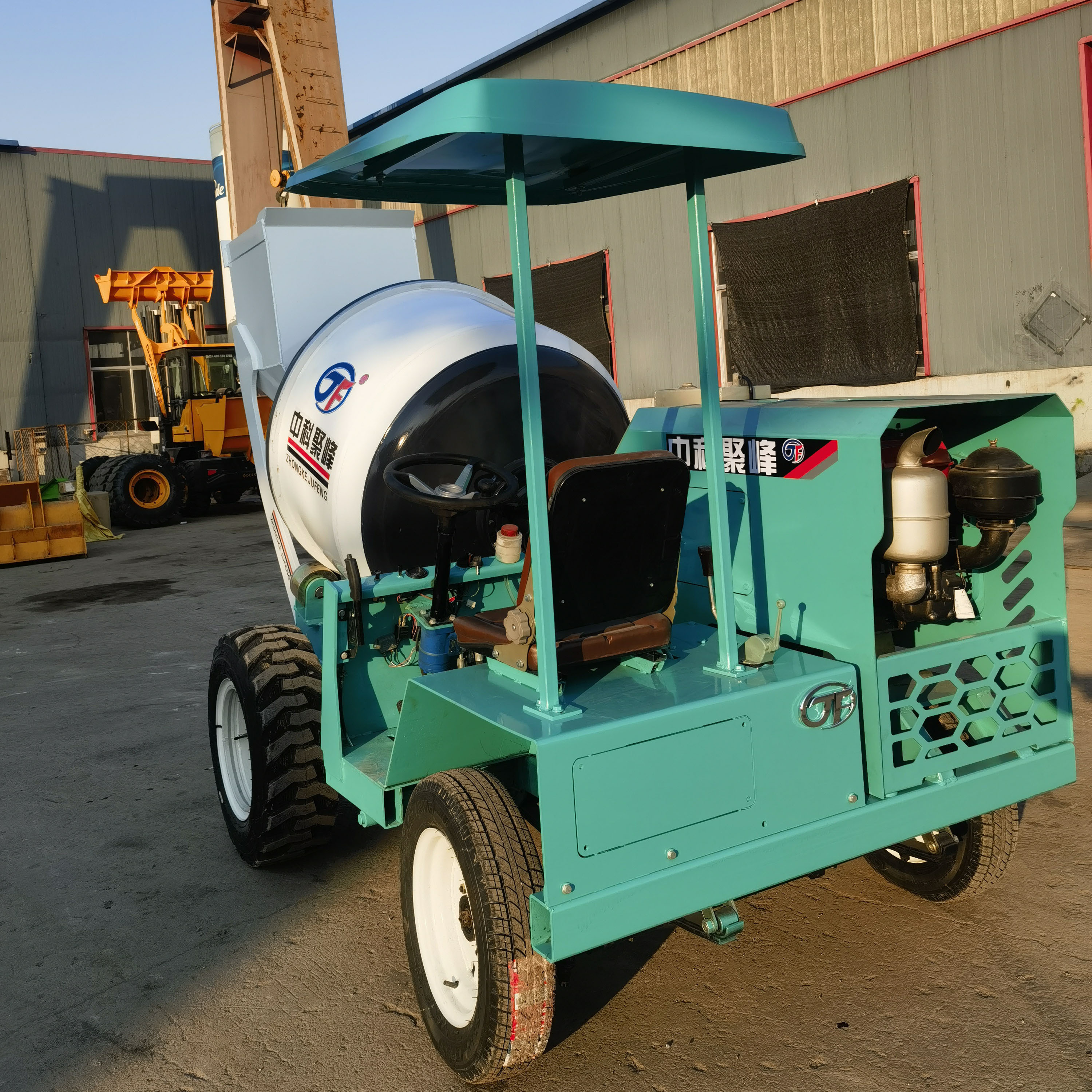

CMT500 is driven by
Changfang single cylinder
, 16 kW (22 HP)
,
Water-cooled Diesel Engine, which features High Reliablity and Low Fuel Comsumption.
300L Loading shovel is fitted with teeth in front and completed with hydraulic opening gate. It can fulfill the drum around 2 times of loading.
|
Mixing Drum
|
|
|
|
|||
|
Mixing volume
|
0.5 M3
|
|
|
|||
|
Geometrical volume
|
0.7 M3
|
|
|
|||
|
Concrete output
|
0.5M3 / batch,2 M3 / hour
|
|
|
|||
|
Drum rotation speed
|
20 rpm
|
|
|
|||
|
Engine
|
|
|
|
|||
|
Brand
|
Changfang single cylinder Diesel Engine
|
|
|
|||
|
Model
|
CF25
|
|
|
|||
|
Type
|
1-Cylinder, Water Cooled,
|
|
|
|||
|
Rated power
|
16KW 22HP @ 2300 rpm
|
|
|
|||
|
Max torque:
|
130 N.M @2000 rpm
|
|
|
|||
|
Emission standard
|
Euro II
|
|
|
|||
|
Loading Shovel & Chute
|
|
|
|
|||
|
Volumetric capacity
|
300L
|
|
|
|||
|
Number of shovel loading times of full drum
|
Around 3 times
|
|
|
|||
|
Chute
|
2 pcs. of discharging chute extensions. Manually rotating at 90 degree.
|
|
|
|||
|
Electric system
|
|
|
|
|||
|
Alternator
|
24V-750W
|
|
|
|||
|
Battery:
|
2x12V-80AH
|
|
|
|||
|
Vehicle
|
|
|
|
|||
|
Max. Driving speed
|
20.0km/h
|
|
|
|||
|
Gradient
|
Fully loaded 40%
|
|
|
|||
|
Min. turning radius
|
4.0m
|
|
|
|||
|
Operating weight
|
1,600 Kg
|
|
|
|||
|
Max. payload
|
1,200 Kg
|
|
|
|||
|
Max. gross weight
|
2,800 Kg
|
|
|
|||
|
Overall size (L×W×H)
|
4200*1600*2350 mm
|
|
|
|||
|
Service refill capacities
|
|
|
|
|||
|
Fuel tank:
|
18L
|
|
|
|||
|
Total hydraulic system capacity:
|
20L
|
|
|
|||
|
Engine oil:
|
3L
|
|
|
|||
Laizhou Jufeng Machinery Co., Ltd.
is the leading manufacturer specializing in construction machinery and equipment in China. Founded in 1992, our company has grown to be group enterprise which covers an area of more than 200,000 square meters and owns over 600 employees and 5 production plants.
The main products we manufacture include Self Loading Concrete Mixer with output capacity ranging from 0.8 CBM to 6.5 CBM, Wheel Loader with payload from 1 Ton to 3 Ton, Backhoe Loader, Site Dumper, Crawler Excavator, Concrete Mixer Pump, Concrete Boom Pump, Block Making Machine and Compaction Machine, etc.
We have constantly improved and updated our products according to customer's feedback and market demand. At every stage of the manufacturing process, each component has passed the stringent tests before the assembled machinery goes through its final pre-despatching inspection. Excellent quality, efficient after-sales service and reasonable price make us gain customer's trust and good reputation in both domestic and overseas markets. Our products have been exported to Russia, Uzbekistan, Mongolia, Malaysia, Philippines, Middle East, Kenya, Uganda, Algeria and Australia, etc.
In accordance with the development strategy of "Make ZKJF as a Brand with One Hundred Year's History", we endeavor to head towards of our great goal of be first-class enterprise in mainland China and well-known engineering machinery manufacturer in the worldwide as well.
High Production Capacity
Advanced Laser Cutting, Robot Welding, Painting & Other Processing Equipments
High Level Quality Control & Neat Assembling Workshop
