1.Rich selection of connector, more than 100 experienced mould processing staff Equipment imported from Japan, Germany, Switzerland, Taiwan
2.Specializes in manufacturing connector more than 19 years
3.Have long and Rich cooperation experience with Samsung, whirlpool, Midea
4.Almost get all of the certification for connector ,such as UL,SGS, MSDS, CE, ISO9001,ROHS,REACH, CQC,TUV, PAHS, PFOS, PFOA ect.
5. replace JST, Molex ,YEONHO ,Tyco ,AMP,KET,JWT,JMT, Cvilux, GTK ect. and short delivery
6.competitive price
7.ISO 9001:2008-certified factory equipped with automated assembly lines
8.Custom-made orders welcome here
- Product Details
- {{item.text}}
Quick Details
-
Material:
-
PA66plastic
-
Pitch:
-
5.0mm
-
Poles:
-
2P,3P2-30P
-
Rated voltage:
-
300V
-
Rated Current:
-
16A
-
Housing:
-
PBT,UL94V-0
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
KEFA
-
Model Number:
-
KF300-5.0
-
Material:
-
PA66plastic
-
Pitch:
-
5.0mm
-
Poles:
-
2P,3P2-30P
-
Rated voltage:
-
300V
-
Rated Current:
-
16A
-
Housing:
-
PBT,UL94V-0

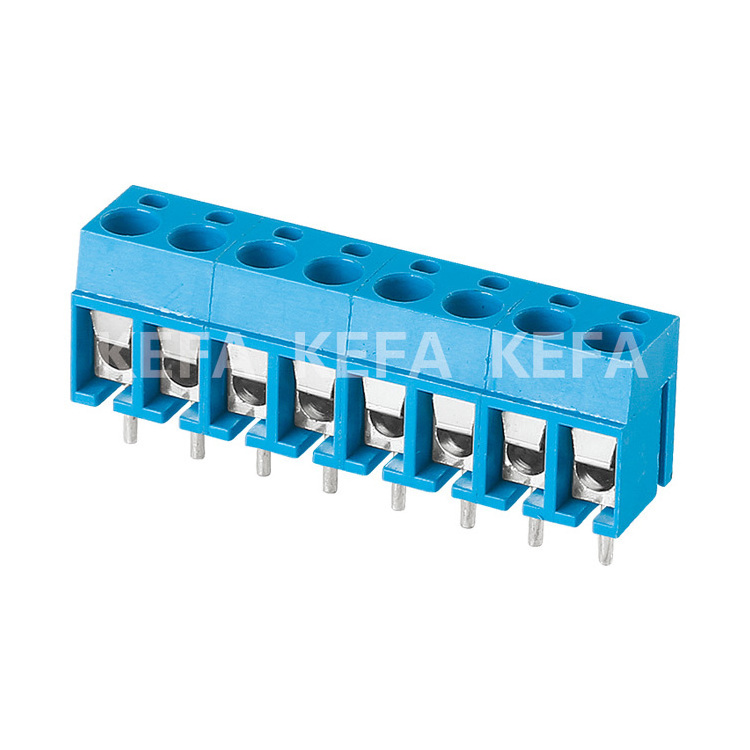

Products Description
|
Pitch
|
5.0mm(.197")
|
|
Poles
|
2P,3P2-30P
|
|
Pin header
|
Brass,Tin plated
|
|
Screw
|
M3.Steel,Zinc plated
|
|
Housing
|
PBT,UL94V-0
|
|
Rated voltage
|
300V
|
|
Reated current
|
16A
|
|
Withstanding voltage
|
AC1250V/1Min
|
|
Temp range
|
-30℃~+120℃
|
|
Wire range
|
22-14AWG
|
|
Max Soldering
|
-250°C for 5 sec
|
|
Strip length
|
4.5-5mm
|
Draw:
Features:
Small pitch to save space
Low structural height
Large wiring capacity, can be connected to the section area of 1.5mm² flexible wire
The plug socket is protected against wrong insertion and dislocation
We are manufacturing factory, if you need bulk production or custom made, please contact us.
Low structural height
Large wiring capacity, can be connected to the section area of 1.5mm² flexible wire
The plug socket is protected against wrong insertion and dislocation
We are manufacturing factory, if you need bulk production or custom made, please contact us.
Advantage:
