Quick Details
-
Voltage:
-
220V/110V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
NUOHUA
-
Dimension(L*W*H):
-
690*360*820mm
-
Weight:
-
50 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Video technical support, Online support
-
Name:
-
electric tin can sealing machine/can seamer
-
Sealing speed:
-
25 Cans/Min , pet bottle sealing machine
-
Can diameter:
-
45-110mm , seamer-machine
-
Can height:
-
39-200mm, can seamer
-
Material:
-
Stainless Steel, can sealer
-
Function:
-
round can sealing, can machine seamers
-
Color:
-
Yellow, seamer for canning
-
Warranty time:
-
1 year
-
Keyword:
-
metal can sealing machine, can seamer, tin can closing machine
-
After Warranty Service:
-
Video technical support, Online support
-
Local Service Location:
-
None
-
Certification:
-
CE ISO9001
Quick Details
-
Packaging Type:
-
Cartons, Wood Carton
-
Packaging Material:
-
Plastic, Wood
-
Driven Type:
-
Electric
-
Voltage:
-
220V/110V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
NUOHUA
-
Dimension(L*W*H):
-
690*360*820mm
-
Weight:
-
50 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Video technical support, Online support
-
Name:
-
electric tin can sealing machine/can seamer
-
Sealing speed:
-
25 Cans/Min , pet bottle sealing machine
-
Can diameter:
-
45-110mm , seamer-machine
-
Can height:
-
39-200mm, can seamer
-
Material:
-
Stainless Steel, can sealer
-
Function:
-
round can sealing, can machine seamers
-
Color:
-
Yellow, seamer for canning
-
Warranty time:
-
1 year
-
Keyword:
-
metal can sealing machine, can seamer, tin can closing machine
-
After Warranty Service:
-
Video technical support, Online support
-
Local Service Location:
-
None
-
Certification:
-
CE ISO9001

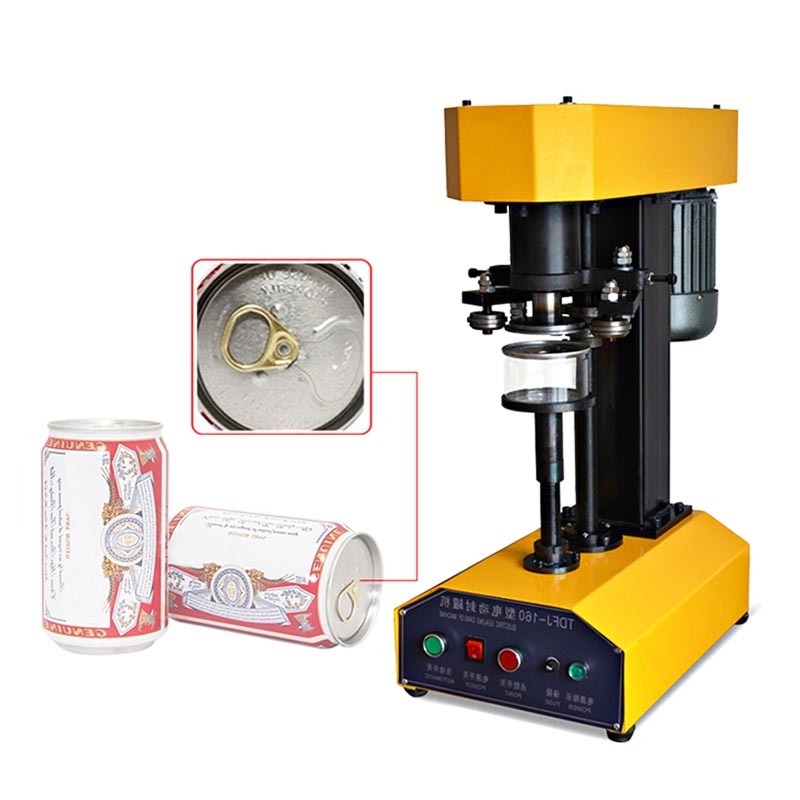

TDFJ-160 ring pull canning semi-automatic can closing sealing machine 110v can sealer
Performance and Features
1. Sealing reel vacuum hardening steel, high hardness, excellent sealing performance;
2. Using the left and right roll seam sealing seal round seal, simple and reasonable structure, easy to adjust;
3. The electrical components used in all high-end brand
elements, reliable performance and stability;
4. Tank lift mechanical cam control, lifting reliable, very low
failure rate.
Parameters
|
Model |
TDFJ160 |
|
Driven type |
Electric |
|
Voltage |
AC 220V 50Hz / 110V 60Hz |
|
Power |
370W |
|
Can diameter |
45-110mm (can be customized for bigger size) |
|
Height of can |
39-200mm(can be customized for bigger size) |
|
Working speed |
about 25 pcs/min |
|
Package size |
69*36*82cm |
|
Gross weight |
about 50kg |
Note: One machine comes with one sealing head for fixed cans height and diameter,it can't be adjusted.Other cans with different size has to use corresponding sealing head.
tdfj 160 semi automatic can sealer canning machine
Advantage
• Suitable for sealing all kinds of circular iron cans, paper can,Iron steel cans,PET plastic cans , glass cans and so on,Quality is reliable, tank mouth ruffled uniform no folds, no leakage.
• Easy Operation and light weight, use the lighting power, a person can complete the operation.
• Compared with the traditional manual sealing machine, the electric sealing machine can greatly improve the efficiency of sealing, reduce the labor intensity of workers, and reduce the bad products caused by human factors, and it is an ideal equipment for food and beverage industry.
Operation key step
1. Prepare before starting work:
Check all parts well lubricated.
Check the firmware for loose power cord for damage.
Check the rotation system and the movement mechanism for faults and abnormal sounds.
2. Adjust:
Press the jog slowly adjust switch, rotary screw lift, adjusted to the desired height jar.
To go through the first two road rollers and road rollers roll bar were to be completed, adjust the position of the wheel when seaming, you can get the desired position sealing rollers.
3. Test Sealing:
Start the motor, will install good material covered jar lid.
The jar on the seamer lower die and righting jar.
Confirm jar placed in the correct position, you can step on the pedal point after sealing lid on correctly.
Press the power button to shut down
