Quick Details
-
Model Number:
-
CM10F
-
Name:
-
Coating Thickness Gauge
-
Model:
-
CM10F
-
Measuring range:
-
0-3000μm
-
Type:
-
Integrated
-
Probe Type:
-
Ferrous Probe
-
Measurement Principle:
-
Magnetic Method
-
Resolution:
-
0.1μm
-
Tolerance:
-
±(2%H+2)
-
Calibration:
-
Zero, One-Point and Two-Point Calibration
-
Material:
-
ABS
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
YUSHI
-
Model Number:
-
CM10F
-
Name:
-
Coating Thickness Gauge
-
Model:
-
CM10F
-
Measuring range:
-
0-3000μm
-
Type:
-
Integrated
-
Probe Type:
-
Ferrous Probe
-
Measurement Principle:
-
Magnetic Method
-
Resolution:
-
0.1μm
-
Tolerance:
-
±(2%H+2)
-
Calibration:
-
Zero, One-Point and Two-Point Calibration
-
Material:
-
ABS

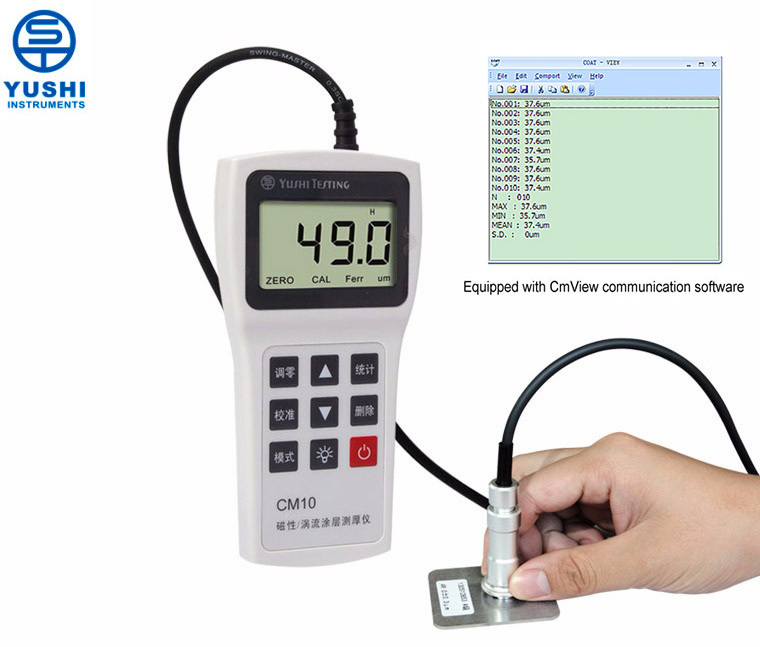

Best Digital Coating Thickness Measuring Instrument Portable Coating Thickness Meter/Tester
Magnetic Method (Fe) : Measuring the thickness of non- magnetic coatings on steel, iron and other ferromagnetic metal substrates, e.g. painting, varieties of anti-corrosion coating, powder spraying, plastic, rubber, synthetic material, phosphate coating, chromium, zinc, Aluminum, tin and cadmium, etc.
Eddy Current Method (NFe) : measuring the thickness of non-conductive coatings on copper, aluminum, stainless steel and other non-ferromagnetic substrates, e.g. painting, varieties of anti-corrosion coating, powder spraying, plastic, rubber, synthetic material, oxide film and phosphate film, etc.
|
Display
|
High Contrast Segment Liquid Crystal Display (LED Backlight)
|
|
Statistics
|
N, MAX, MIN, MEAN and STD.DEV
|
|
Calibration
|
Zero, One-Point and Two-Point Calibration
|
|
Working Temperature
|
-10℃~+50℃
|
|
Auto Power-off
|
Auto off after 3 minutes of inactivity
|
|
Power
|
2AA size batteries, low-voltage indication function
|
|
Weight
|
200g including batteries
|
|
Size
|
149mm×73mm×32mm (H×W×D)
|
