Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
GS-mach
-
Voltage:
-
220v 380v 30HZ
-
Dimension(L*W*H):
-
8900*1550*1150
-
Power (kW):
-
132
-
Weight:
-
4500 KG
-
Raw material:
-
PBAT
Quick Details
-
Screw Design:
-
Double-screw
-
Screw L/D Ratio:
-
33:1
-
Screw Speed (rpm):
-
500 rpm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
GS-mach
-
Voltage:
-
220v 380v 30HZ
-
Dimension(L*W*H):
-
8900*1550*1150
-
Power (kW):
-
132
-
Weight:
-
4500 KG
-
Raw material:
-
PBAT
Starch +PLA/PBAT 100% degradation granulation extruder line Biodegradable bags making machine
Product Overview
|
No
|
Item
|
Model
|
|
1
|
Biodegradable Granulation machine
|
GS-65
|
|
2
|
Film Blown Machine
|
GS-4S
|
|
3
|
Biodegradable Plastic Bags Making Machine
|
GS-5S
|
We provide turn-key Project. To produce biodegradable plastic bags whole production line
PBAT+starch disposable tableware production line
Total three steps of
productive process:
-- Biodegradable Granulation machine (mix and make compound granules)
-- Film Blown Machine (make starch + PLA sheet)
-- Biodegradable Plastic bags making machine (make different disposable container)
Raw materials: PBAT + Starch
Application area
|
Processing Material
|
PLA/PBAT/PVA+Corn starch/Cassava starch+some small additives
|
|
|
|
|||
|
Final Porduct
|
100% biodegradable plastic bags
|
|
|
|
|||
|
Application
|
Biodegradable Shopping Bags / PVA Water Soluble Bags
|
|
|
|
|||
|
Capacity
|
200-300kg/h
|
|
|
|
|||
|
Formula
|
Available (We provide formulation and technology)
|
|
|
|
|||
PRODUCT CONFIGURATION

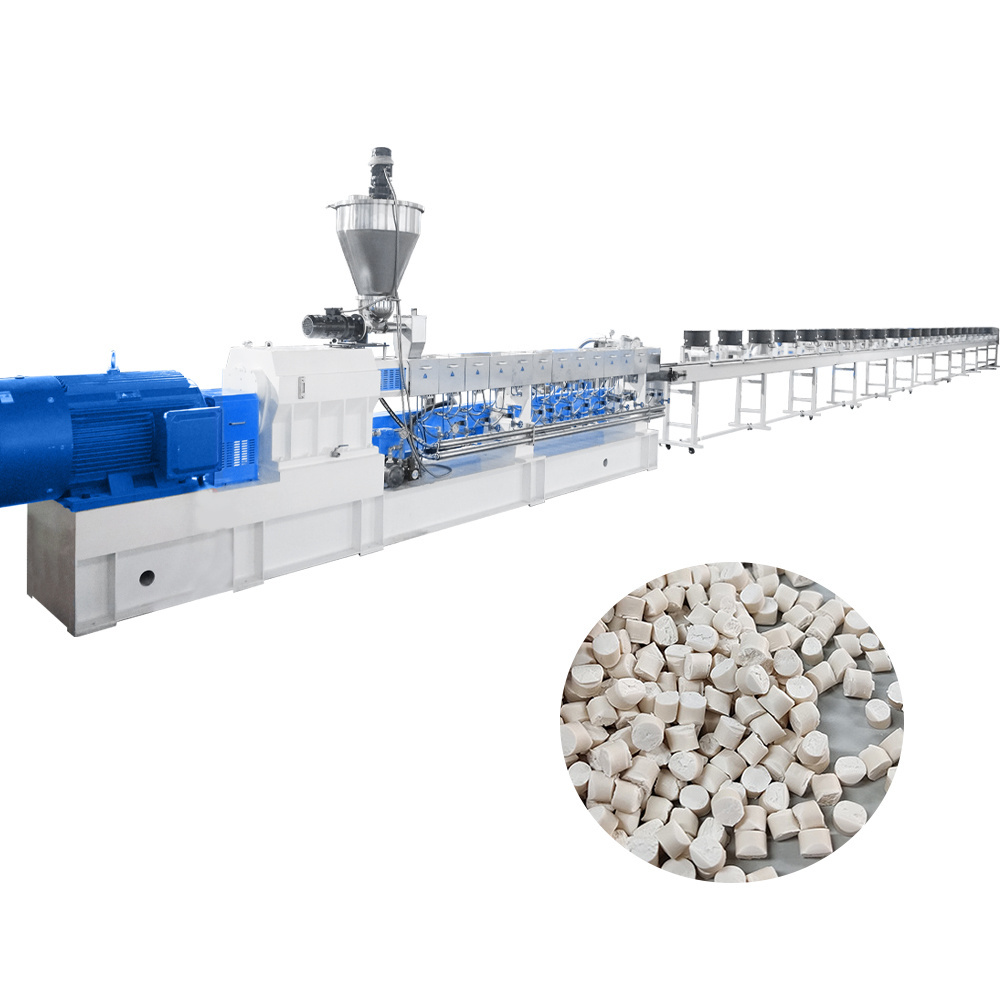

First Step. Biodegradable pellets making machine
|
Machine Composition
|
|
|
|
|
||||
|
Model
|
Machine
|
|
|
Quantity
|
||||
|
1
|
High Speed Mixer
|
|
|
1 set
|
||||
|
2
|
Conveyor Belt Feeder
|
|
|
1 set
|
||||
|
3
|
Twin Screw Extruder
|
|
|
1 set
|
||||
|
4
|
Electrical Control System
|
|
|
1 set
|
||||
|
5
|
Air Cooling Strand Pelletizing Line
|
|
|
1 set
|
||||
|
6
|
Technonlogy
|
|
|
1 set
|
||||
|
Machine Composition
|
|
|
|
|
||||
|
SN
|
Name
|
|
|
Technical Parameter
|
||||
|
1
|
Screw diameter
|
|
|
50mm
|
||||
|
2
|
Screw L/D
|
|
|
28:1
|
||||
|
3
|
Screw Speed
|
|
|
10-120Rpm/min
|
||||
|
4
|
Die Specifications
|
|
|
60 80 120
|
||||
|
5
|
Single Thickness
|
|
|
0.003mm-0.12mm
|
||||
|
6
|
Folding Width
|
|
|
600mm 800mm
|
||||
|
7
|
Main Motor Power
|
|
|
11kw
|
||||
|
8
|
Heating Power
|
|
|
11kw
|
||||
|
9
|
Capacity
|
|
|
35kg/h
|
||||
|
11
|
Weight
|
|
|
1.5t
|
||||
|
12
|
Diemension
|
|
|
4500*2300*4000mm
|
||||
|
Technical Parameter
|
|
|
|
|
||||
|
Model
|
GS400*2
|
|
|
GS 500*2
|
||||
|
Max Bags Width
|
370mm*2
|
|
|
400mm*2
|
||||
|
Max Bags Length
|
300-999mm
|
|
|
300-999mm
|
||||
|
Max Feeding Diameter
|
800mm
|
|
|
800mm
|
||||
|
Production Speed
|
150-220pcs*2/min
|
|
|
150-220pcs*2/min
|
||||
|
FilmThickness
|
0.01-0.035mm
|
|
|
0.01-0.035mm
|
||||
|
Main Motor
|
1.5kw
|
|
|
1.7kw
|
||||
|
Main Power
|
9Kw
|
|
|
9kw
|
||||
|
Machine Weight
|
2300kg
|
|
|
2500kg
|
||||
