Quick Details
-
Product name:
-

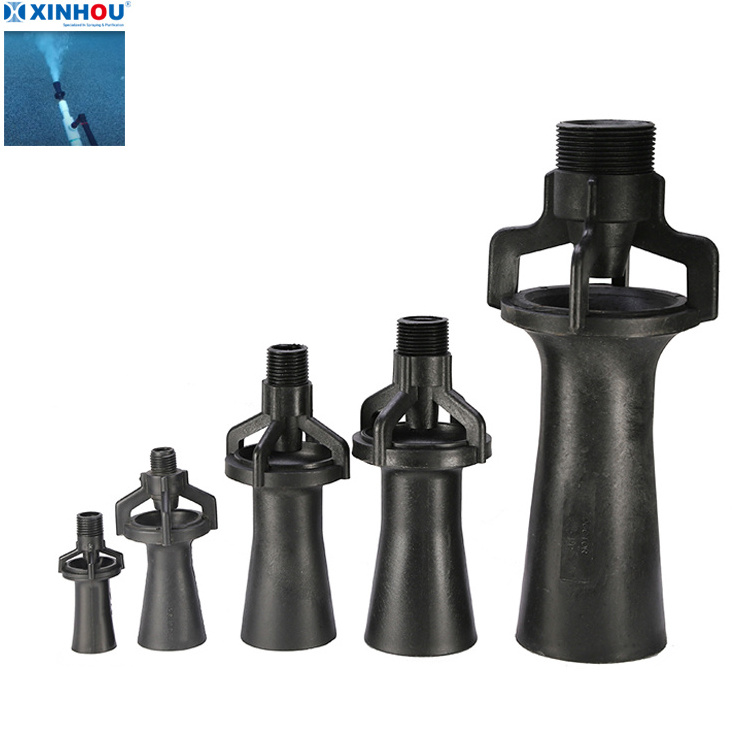

PP Plastic 3/4 Water Spray Jet Liquid Mixing Eductor Venturi Nozzle
-
Material:
-
PP plastic
-
Color:
-
Black
-
Thread type:
-
Male thread BSPT
-
Thread size:
-
3/4"
-
Operate pressure:
-
0.5-45 psi
-
Operating temperature:
-
0°-85℃
-
Feature:
-
Anti-clogging, high temperature resistance
-
Application:
-
Circulating, mixing
-
Customized products:
-
Available
Quick Details
-
Weight (KG):
-
0.3
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
XINHOU
-
Product name:
-
PP Plastic 3/4 Water Spray Jet Liquid Mixing Eductor Venturi Nozzle
-
Material:
-
PP plastic
-
Color:
-
Black
-
Thread type:
-
Male thread BSPT
-
Thread size:
-
3/4"
-
Operate pressure:
-
0.5-45 psi
-
Operating temperature:
-
0°-85℃
-
Feature:
-
Anti-clogging, high temperature resistance
-
Application:
-
Circulating, mixing
-
Customized products:
-
Available
Eductors operate on basic principles of flow dynamics. The design of the eductor creates pressure differential allowing fluid to flow naturally within the device - creating suction, mixing, and pushing the liquid throughout the tank.
Eductors require no power, which means no moving parts.
Eductors reduce costs as there are no moving parts and require no direct power.
|
Product Name
|
PP Plastic 3/4 Water Spray Jet Liquid Mixing Eductor Venturi Nozzle
|
|
Material
|
PP plastic
|
|
Thread size
|
3/4"
(also produce
1/4", 3/8", 1/2", 1", 1-1/2")
|
|
Working pressure
|
10-50 psi (0.5 to 4 bar)
|
|
Commom application
|
Proven results in industrial applicationa, aquarium and aquatic use
|
|
Payment
|
Western union, Paypal, T/T, Visa, Alibaba Trade Assurance
|
|
Delivery time
|
2 working days after payment confirmation for plastic eductor nozzles;
3-7 working days for metal and PVDF nozzles.
|
|
Delivery method
|
By air express, by sea
|
|
Customized products
|
Welcome
|
Design features of mixing eductor nozzles:
1.The mixing venturi nozzle is designed based on the Bernoulli Theory together with the theory of geometric cured surface.
2.It could fully mixing gas, liquid and other chemical component when these substance are in the same temperature and PH.
3.Corrosion resistance, aging resistance and high temperature resistance.
