- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
220-240V
-
Dimension(L*W*H):
-
3250*3150*900mm
-
Application:
-
Panel furniture
-
Weight (KG):
-
780 KG
-
Power (kW):
-
5.5KW
-
Marketing Type:
-
Hot Product 2020
-
Warranty of core components:
-
12 months
-
Quality assurance:
-
12 months
-
Gross cut capacity:
-
3200mm
-
Certificate:
-
ISO9001& CE
-
Power:
-
5.5kw(7.5HP)
-
Max cutting height:
-
128mm
-
Electric main saw blade lifting:
-
angle adjustment
-
Cutting width:
-
1000 or 1300 mm
-
scoring saw spindle diameter:
-
20mm
-
color:
-
optional
-
Name:
-
Woodworking Cutting Sliding Table Panel Saw
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HAILIJU
-
Usage:
-
CUTTING
-
Voltage:
-
220-240V
-
Dimension(L*W*H):
-
3250*3150*900mm
-
Application:
-
Panel furniture
-
Weight (KG):
-
780 KG
-
Power (kW):
-
5.5KW
-
Marketing Type:
-
Hot Product 2020
-
Warranty of core components:
-
12 months
-
Quality assurance:
-
12 months
-
Gross cut capacity:
-
3200mm
-
Certificate:
-
ISO9001& CE
-
Power:
-
5.5kw(7.5HP)
-
Max cutting height:
-
128mm
-
Electric main saw blade lifting:
-
angle adjustment
-
Cutting width:
-
1000 or 1300 mm
-
scoring saw spindle diameter:
-
20mm
-
color:
-
optional
-
Name:
-
Woodworking Cutting Sliding Table Panel Saw

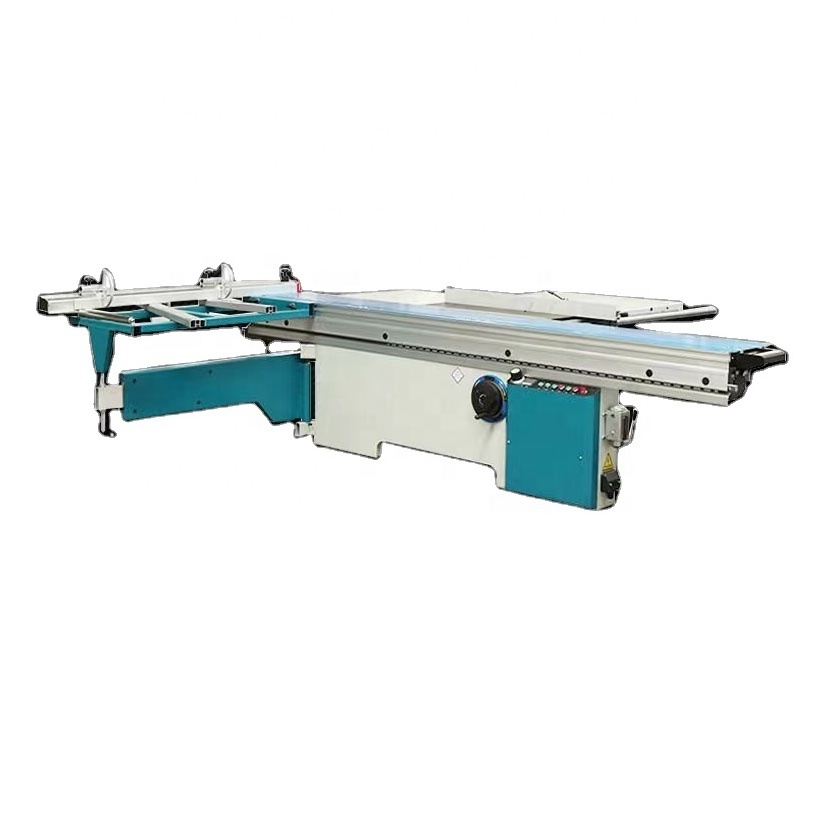

precision sliding table panel saw made in china
Product details
|
Model
|
MJ45A
|
|
Length of sliding table
|
3200 mm
|
|
Cutting width
|
1000 or 1300 mm
|
|
3200mm
|
Horizontal baffle plate extended to 3200 mm
|
|
Motor power
|
5.5 kw(7.5HP)
|
|
Main spindle speed
|
3000/4000/5000 r.p.m
|
|
Scoring saw spindle diameter
|
20 mm
|
|
Scoring saw power
|
1.1 kw
|
|
Overall dimesion
|
3250*3150*900 mm
|
Product details
01.Features
It is adapted to ergonomic requirements.The special operation is that:The control board of MJ45 sliding table saw can be adjusted to the equal heigt with line of sight to make the operation comfortable.The saddle is electrically adjustable.
02.Control panel
The various operation on the control panel is clear at a glance.You just need to press the button gently then it will adjust the height and the angle of saw blade easily.The numerical value of angle is visible on the display.
03.Dust hood
It is convincing to use the big dust hood with fluid mechanics optimization structure.Dust hood apply to Max.Cutting height 125mm (without relationship to scoring saw blade)and can swing to the side totally.
04.The electric saddle
Electric saddle traveling speed can reach 250mm/sec.Electric control size precision can be+/_1/10mm.Five-positioning of high-precision drive systems without regular maintenance is like a built-in motor protected by aluminum profile.Parallel baffle identify position automatically especially dangerous zone of saw blade.There is emergency power-off function and then excluded squeezed danger.Parallel baffle lateral and longitudinal value can be adjusted automatically.
05.Motor
Motor.powerful.Rating:5.5kw(7.5HP)Three speeds 3/4/5000 rpm,manually adjusted.
06.Horizontal baffle plate
Precise vertical angle cutting by firm rung.All of adjustment value is available in the strip of rung.The peach shape baffle plate with close connection with it can be push easily and adjusted freely in the entire cutting area.
1. Are you a factory or trading company?
We are a woodworking machine factory and trader in QingDao, near Qingdao Port.
2. Can you do OEM?
Yes, OEM is available! Low quantity for customized service!!
3. How can I get some samples?
We are glad to offer you samples. New clients are expected to pay for the delivery cost, this charge can be deducted from the
payment of formal order.
4. What is your payment term?
Commonly 30% deposit by T/T, the balance payment before shippment by T/T. We accept Alibaba trade insurrance.
5. What’s the delivery time?
Within 15 days for a 40HQ. Many kinds of machine we have cargo now.
6. How is your quality?
100% new materials are guaranteed. Have passed ISO Certificates and CE.
6 .HOW TO CONTACT YOU FOR BUYING?
Sally Whatsapp +86-178 6567 7953
We are a woodworking machine factory and trader in QingDao, near Qingdao Port.
2. Can you do OEM?
Yes, OEM is available! Low quantity for customized service!!
3. How can I get some samples?
We are glad to offer you samples. New clients are expected to pay for the delivery cost, this charge can be deducted from the
payment of formal order.
4. What is your payment term?
Commonly 30% deposit by T/T, the balance payment before shippment by T/T. We accept Alibaba trade insurrance.
5. What’s the delivery time?
Within 15 days for a 40HQ. Many kinds of machine we have cargo now.
6. How is your quality?
100% new materials are guaranteed. Have passed ISO Certificates and CE.
6 .HOW TO CONTACT YOU FOR BUYING?
Sally Whatsapp +86-178 6567 7953
