Quick Details
-
Brand Name:
-
lixian
-
Model Number:
-
HZ-9711A
-
Technical data at a glance:
-
HZ-9711A
-
Max Mass of Workpiece(kg):
-
10000
-
Max Diameter of Workpiece (mm):
-
2400
-
Distance Between Two:
-
750~4600
-
Journal Diameter Scope):
-
60~400
-
Diameter Scope:
-
50~1000
-
Rotational Speed when:
-
795,18531
-
Motor Power (kw):
-
18.5
-
Length of Bed (mm):
-
2500
-
Min Achievable Residual:
-
≤0.5gmm/kg
Quick Details
-
Warranty:
-
1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
lixian
-
Model Number:
-
HZ-9711A
-
Technical data at a glance:
-
HZ-9711A
-
Max Mass of Workpiece(kg):
-
10000
-
Max Diameter of Workpiece (mm):
-
2400
-
Distance Between Two:
-
750~4600
-
Journal Diameter Scope):
-
60~400
-
Diameter Scope:
-
50~1000
-
Rotational Speed when:
-
795,18531
-
Motor Power (kw):
-
18.5
-
Length of Bed (mm):
-
2500
-
Min Achievable Residual:
-
≤0.5gmm/kg

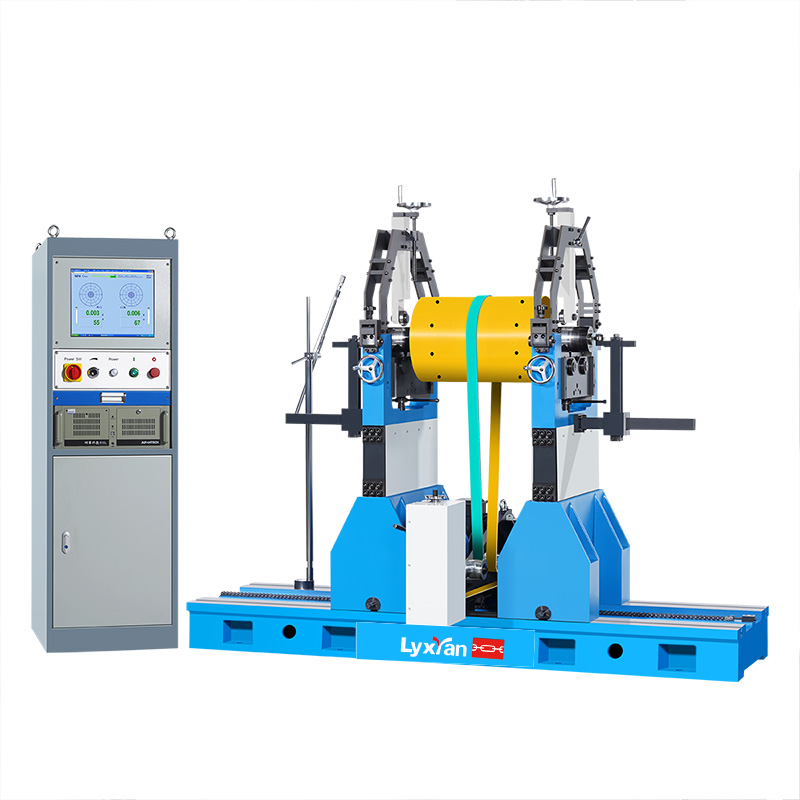

High quality Large-sized Belt Drive Balancer Features
Large-sized Belt Drive Balancer adopts electronic measurement system, with various measurement methods, dynamic and static balancing, bearing modes are up to 10 kinds, weight addition& removal, CW and CCW rotation can be flexibly customized. It adopts multiple calibration coefficient combinations, automatically adjusts system sensitivity, and shifts without jumps, software and hardware dual filtering, data compression, the measurement is more stable.
High quality Large-sized Belt Drive Balancer Technical Parameters
| Technical data at a glance | HZ-9711A | HZ-9711A | HZ-9711A |
| Max Mass of Workpiece(kg) | 10000 | 15000 | 20000 |
| Max Diameter of Workpiece (mm) | Φ2400 | Φ2800 | Φ2800 |
| Distance Between Two Support Bearings (mm) | 750~4600 | 750~5600 | 750~5600 |
| Journal Diameter Scope of Workpiece (mm) | Φ 60~400 | Φ60~400 | Φ60~400 |
| Diameter Scope of Driving Belt (mm) | Φ50~1000 | Φ50~1300 | Φ50~1300 |
| Rotational Speed when the Diameter of Driving Belt is 100mm (r/min) | 795,1853 1) | 795,1853 1) | 795,1853 1) |
| Motor Power (kw) | 18.5 2) | 22 2) | 30 2) |
| Length of Bed (mm) | 2500 | 2500 | 2500 |
| Min Achievable Residual Unbalance Amount (emar) | ≤0.5g· mm/kg | ≤0.5g· mm/kg | ≤0.5g· mm/kg |
