Quick Details
-
Frequency range:
-
Transmitter: 0...60Hz
-
Output signal:
-
Transmitter: 125kHz
-
Voltage:
-
Transmitter: Up to 400V AC/DC
-
Overvoltage category:
-
CAT III 300V
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CEM
-
Model Number:
-
LA1012
-
Frequency range:
-
Transmitter: 0...60Hz
-
Output signal:
-
Transmitter: 125kHz
-
Voltage:
-
Transmitter: Up to 400V AC/DC
-
Overvoltage category:
-
CAT III 300V
Feature:

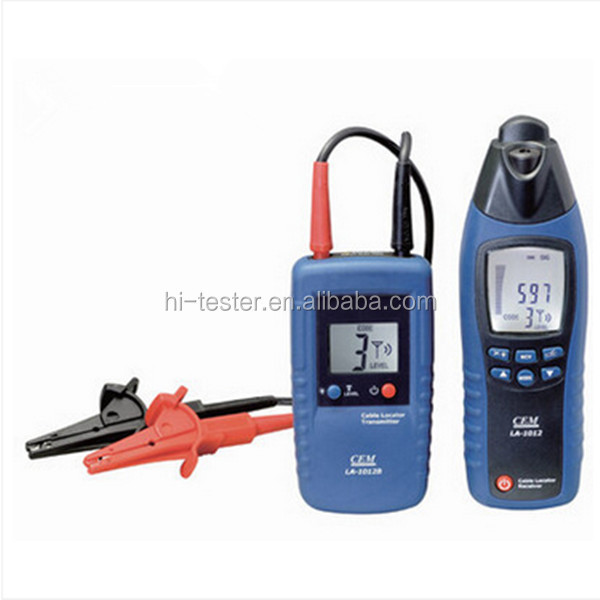

he cable locator is a professional general purpose cable locator. It is ideal for tracing cables in walls and underground, locating fuses/breakers on final circuits and locating interruptions and short-circuits in cables and electrical floor heating systems. It can also be used for tracing metallic water and heating pipes. The unit is supplied as a complete kit comprising of a transmitter and receiver in a purpose made carry case. The receiver also incorporates a torch function for working in dimly lit locations.
Features:
1. For all applications (live or dead cables) without additional instruments
2. Set includes a transmitter and a receiver
3. Proven digitally coded sender signal guarantees clear signal identification
4. Transmitter with LCD-display for transmitting level, transmitting code and external voltage
5. Receiver with backlight LCD-display for level of receiving signal, code of receiving signal and live voltage indication
6. Automatic or manual adjustment of receiving signal sensitivity
7. Acoustical receiving signal switchable
8. Auto Power Off
9. Additional torch lamp function for working in dark environment
10. Additional transmitters are available for extension of to distinguish between several signals
Specifications:
|
Technical Specifications |
|
|
Voltage measurement range |
Transmitter: 12V, 50V, 120V, 230V, 400V |
|
Frequency range |
Transmitter: 0...60Hz |
|
Output signal |
Transmitter: 125kHz |
|
Voltage |
Transmitter: Up to 400V AC/DC |
|
Tracing depth cable location |
Receiver: 0...2.5 m wall/underground cables |
|
Main voltage detection |
Receiver: 0...0.4 m |
|
Environmental Specifications |
|
|
Operating Temperature |
Transmitter: 0 to 40ºC; Receiver: 0 to 40ºC |
|
Storage Temperature |
Transmitter: -20ºC to 60ºC ; Receiver: -20ºC to 60ºC |
|
Humidity (Without Condensation) |
Transmitter: Max. 80% relative; Receiver: Max. 80% relative |
|
Operating Altitude |
Transmitter: Up to 2000 m; Receiver: Up to 2000 m |
|
Safety Specifications |
|
|
Electrical Safety |
EN 61010-1 |
|
Overvoltage category |
CAT III 300V |
|
Size(HxWxD) |
190mm x 60mm x 37mm(LA-1012); 128mm x 68mmx 30mm(LA-1012B) |
|
Weight: |
229g (LA-1012); 185g (LA-1012B) |
