Quick Details
-
Max. Lifting Height:
-
12M
-
Span:
-
3-8m
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
MODERN CRANE
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
Uzbekistan, Tajikistan
-
After-sales Service Provided:
-
Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
-
operation method:
-
pendant control,remote control ,operating cabin
-
Emergency stop system:
-
including
-
Customised Design:
-
Available
-
Crane traveling limited switch:
-
including
-
Overseas Installation:
-
Available
-
Polyurethane material buffer:
-
including
-
Current overload protection system:
-
including
-
Quick Wear Parts:
-
Free
-
CAD drawing:
-
Available
-
Overload protetion:
-
Includes
-
Certification:
-
SASO,ISO9001,SGS,CE
Quick Details
-
Application:
-
DOCK, WAREHOUSE, WORKSHOP ,ect
-
Rated Loading Capacity:
-
20T
-
Rated Lifting Moment:
-
20000NM
-
Max. Lifting Height:
-
12M
-
Span:
-
3-8m
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
MODERN CRANE
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
Uzbekistan, Tajikistan
-
After-sales Service Provided:
-
Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
-
operation method:
-
pendant control,remote control ,operating cabin
-
Emergency stop system:
-
including
-
Customised Design:
-
Available
-
Crane traveling limited switch:
-
including
-
Overseas Installation:
-
Available
-
Polyurethane material buffer:
-
including
-
Current overload protection system:
-
including
-
Quick Wear Parts:
-
Free
-
CAD drawing:
-
Available
-
Overload protetion:
-
Includes
-
Certification:
-
SASO,ISO9001,SGS,CE

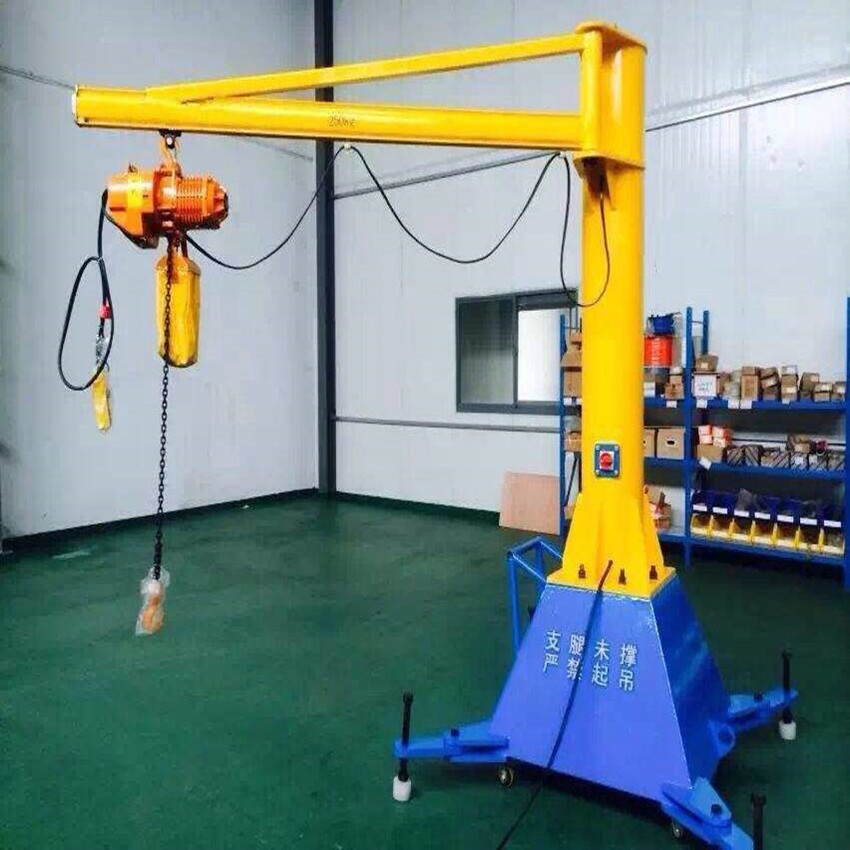

workshop swing arm jib crane with hoist
1.Lifting capacity: 0.5-20t
2.Normal span:3m-8m
3.Working class:A3
4. Max. lifting height:12
cantilever swing arm jib crane can lift, transport and loading unloading goods in the scope of rotary 360 degree of immovably place dock, warehouse, workshop etc. The operation method of crane contains manual and electric. It has features of simple structure; operation is convenient, the manual working in the situation of no power supply. It does not require modification of the building structure in which they are being installed.
workshop swing arm jib crane with hoist
|
Model |
portable jib crane 10 ton |
BZ0.5 |
BZ1 |
BZ2 |
BZ3 |
BZ5 |
|
|
Lift capacity |
t |
0.5 |
1 |
2 |
3 |
5 |
|
|
Max Lift height |
m |
3 |
3 |
3 |
4 |
4 |
|
|
Max. horizontal throw |
m |
2.6 |
3-4 |
2.9-3.9 |
3.8 |
3.7 |
|
|
Max. radius of gyration |
m |
3.6 |
4-5 |
4-5 |
5 |
5 |
|
|
Max. overturning moment |
t/m |
3 |
6 |
12 |
18 |
27 |
|
|
angle of revolution |
degree |
360 |
|||||
|
Lift speed |
normal |
m/min |
8 (4) |
||||
|
slow |
m/min |
0.8 (0.4) |
|||||
|
Travel speed |
m/min |
20 |
|||||
|
angle of revolution speed |
m/min |
1 |
0.75 |
0.7 |
0.9 |
0.6 |
|
a) Capacity: Max. lifting load.
b) Span length: cantilever length/working radius.
c) Expected lifting height: Distance between hook center and ground.
d) Rotating degree: 180/270/360
e) Local industrial voltage : AC 3/380V/50Hz in China.
f ) Your plant layout would helps a lot.
