Quick Details
-
Brand Name:
-
HEYA/OEM
-
Model Number:
-

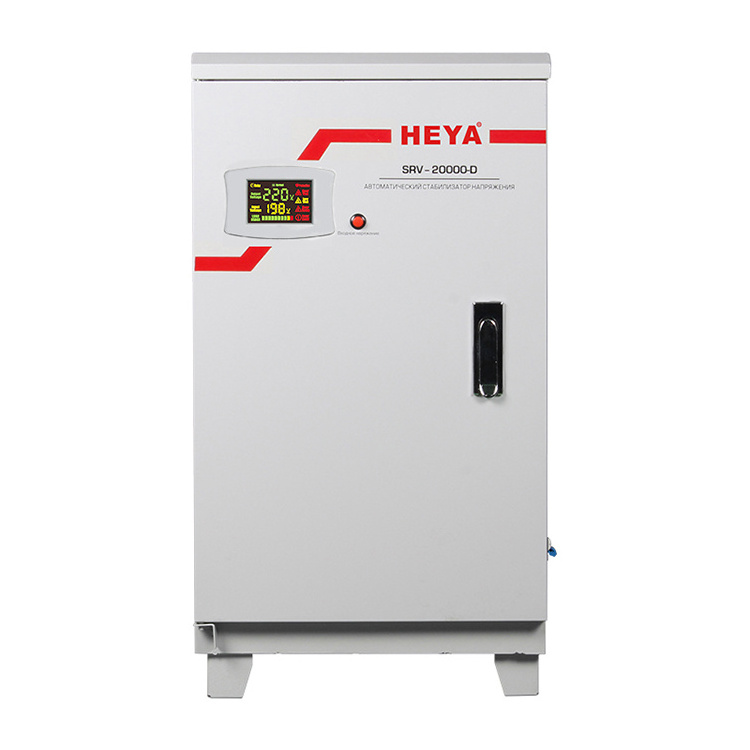

SRV-20000-D
-
Output voltage:
-
220V±8%
-
Input Voltage:
-
AC 140V-260V
-
Color:
-
White or Black
-
Efficiency:
-
>95%
-
Type:
-
Relay control
-
Display:
-
LED display
-
Temperature protection:
-
110℃±10℃
-
Frequency:
-
50-60Hz
-
Dielectric strength:
-
1500V/min
-
Ambient Temperature:
-
-10~+45℃
Quick Details
-
Phase:
-
Single Phase
-
Current Type:
-
AC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HEYA/OEM
-
Model Number:
-
SRV-20000-D
-
Output voltage:
-
220V±8%
-
Input Voltage:
-
AC 140V-260V
-
Color:
-
White or Black
-
Efficiency:
-
>95%
-
Type:
-
Relay control
-
Display:
-
LED display
-
Temperature protection:
-
110℃±10℃
-
Frequency:
-
50-60Hz
-
Dielectric strength:
-
1500V/min
-
Ambient Temperature:
-
-10~+45℃
Products Description
Parameters
|
Model
|
|
SRV-15000-D
|
SRV-20000-D
|
|
||||
|
Nominal Power
|
|
15000VA
|
20000VA
|
|
||||
|
Power Factor
|
|
0.6-1.0
|
|
|
||||
|
Input
|
|
|
|
|
||||
|
Operating Voltage Range
|
|
A:70~285V、B:90~285V、C:125~285V
|
|
|
||||
|
Regulation Voltage Range
|
|
A:80~260V、B:100~260V、C:140~260V
|
|
|
||||
|
Frequency
|
|
50HZ
|
|
|
||||
|
Connection Type
|
|
Input terminal block
|
|
|
||||
|
Output
|
|
|
|
|
||||
|
Operating Voltage
|
|
180~255V
|
|
|
||||
|
High Cut Voltage
|
|
255V
|
|
|
||||
|
Low Cut Voltage
|
|
180V 255V
|
|
|
||||
|
Safety Cycle
|
|
3 Seconds / 180 Seconds (Optional)
|
|
|
||||
|
Frequency
|
|
50HZ
|
|
|
||||
|
Connection Type
|
|
Output terminal block
|
|
|
||||
|
Regulation
|
|
|
|
|
||||
|
Regulation %
|
|
8%
|
|
|
||||
|
Number of Taps
|
|
5
|
|
|
||||
|
Transformer Type
|
|
Toroidal auto transformer
|
|
|
||||
|
Regulation Type
|
|
Relay type
|
|
|
||||
|
Indicators
|
|
|
|
|
||||
|
LED display
|
|
Input voltage 、Output voltage 、Delay time
|
|
|
||||
|
Protection
|
|
|
|
|
||||
|
Over Temperature
|
|
Auto Shutdown at 120 ℃
|
|
|
||||
|
Short Circuit
|
|
Auto Shutdown
|
|
|
||||
|
Overload
|
|
Auto Shutdown
|
|
|
||||
|
Auto Shutdown
|
|
Auto Shutdown
|
|
|
||||
|
Model
|
Unit(PCS)
|
Device Size(MM)
|
Package Size(MM)
|
G.W.(KGS)
|
||||
|
SRV-15000-D
|
1
|
310*270*560
|
410*360*650
|
30.00
|
||||
|
SRV-20000-D
|
1
|
360*340*620
|
450*430*725
|
37.00
|
||||
