Product name:
-

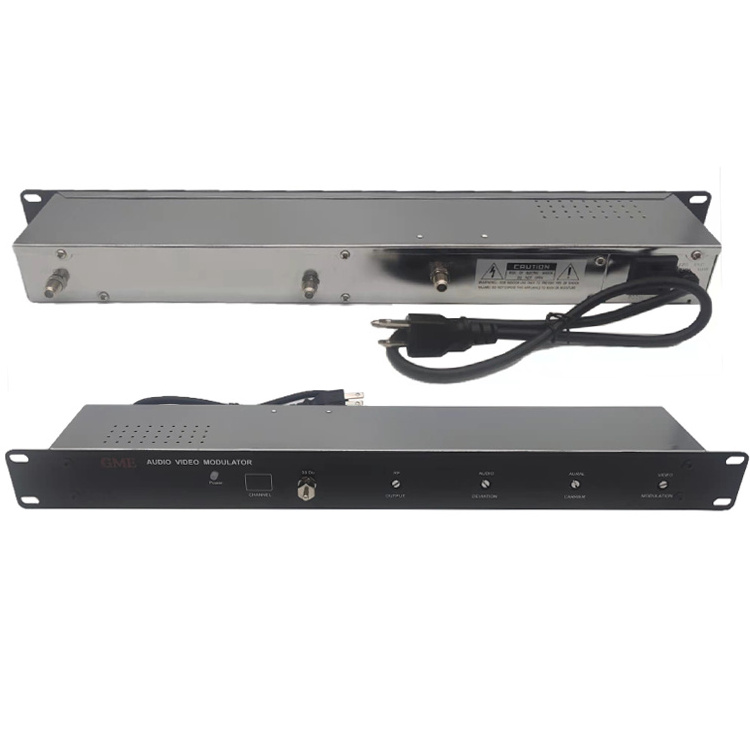

Audio/Video modulator
-
Packing:
-
color box
-
Material:
-
spcc
-
Frequency Range:
-
54~860MHz
-
Function:
-
signal modulated
-
Return Loss:
-
- 9dB
-
Input:
-
0.7vp-p/Video 0.8vp-p/Audio
-
Power SUpply:
-
120VAC/60Hz
-
Output Level:
-
+55 dBmV (minimum)
-
Output Impedance:
-
75 Ohms
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GME, ODM/OEM
-
Model Number:
-
GDM-004(GLM-SAW860)
-
Product name:
-
Audio/Video modulator
-
Packing:
-
color box
-
Material:
-
spcc
-
Frequency Range:
-
54~860MHz
-
Function:
-
signal modulated
-
Return Loss:
-
- 9dB
-
Input:
-
0.7vp-p/Video 0.8vp-p/Audio
-
Power SUpply:
-
120VAC/60Hz
-
Output Level:
-
+55 dBmV (minimum)
-
Output Impedance:
-
75 Ohms
Products Description
Specification
|
Place of Origin:Guangdong,China
|
|
|
|
Model Number:GDM-004(GLM-SAW860)
|
|
|
|
RF
|
|
|
|
1.Output Channels
|
TV VHF: 2-13, UHF: 14-69, CATV: 2-127
|
|
|
2.Output Level
|
+55 dBmV (minimum)
|
|
|
3.Output Level Range
|
13 dB
|
|
|
4.A/V Carrier Ratio
|
-7dB to -22dB
|
|
|
5.Spurious Output
|
-60 dB below video carrier (@A/V carrier ration -15 dB, output level: +55dBmV)
|
|
|
6.Frequency Accuracy/Stability
|
±5 KHz
|
|
|
7.Output Impedance
|
75 Ohms
|
|
|
8.Output Return Loss
|
9 dB
|
|
|
VIDEO
|
|
|
|
1.Video Input Level
|
0.7 Vp-p minimum @87.5% Modulation
|
|
|
2.Differential Gain
|
<5% (10 to 90% APL)
|
|
|
3.Differential Phase
|
<5˚ (10 to 90% APL)
|
|
|
4.Hum and Noise
|
-60 dB @87.5% Modulation
|
|
|
5.Visual Carrier to Noise Ratio
|
60 dB @4 MHz BW
|
|
|
6.Frequency Response
|
±1.7 dB (30 Hz to 4.2 MHz)
|
|
|
AUDIO
|
|
|
|
1.Input Level
|
0.8 Vp-p for ±25 KHz Deviation
|
|
|
2.Input Impedance
|
600 Ohms Unbalanced
|
|
|
3.Pre-Emphasis
|
75 µSec
|
|
|
GENERAL
|
|
|
|
1.Power Input Range
|
120 VAC, 60 Hz
|
|
|
2.Operating Temperature
|
32 ˚F ~ 122 ˚F
|
|
|
3.Connectors
|
All "F" Type
|
|
|
MECHANICAL
|
|
|
|
1.Dimensions
|
19" (W) x 1.75" (H) x 2.25" (D)
|
|
|
2.Weight
|
4.3 lbs
|
|
