Motor can rotate 360° in the horizontal plane, the grinding wheel can be clockwise and anticlockwise rapidly. When grind different kinds of material's cutter, you can turn the grinding wheel, which can add the safety and reduce the time of replacing and dressing the grinding wheel, adding controllability of cutter grinding.
Standard accessory can grind lathe tool, end milling cutter, face and side cutters, hobbing cutters, circular paper cutters,etc.
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
220V/380V 50Hz
-
Dimension(L*W*H):
-
650*650*820mm
-
Weight (KG):
-
168
-
Power/Speed:
-
2800 rpm
-
Rotating Angle of Wheel head:
-
360°
-
Max. Grinding Diameter:
-
250mm
-
Elevating Distance of wheelhead:
-
160mm
-
Motor:
-
3/4HP 380V/220V
-
Horizontal travel of the operating table:
-
265mm
Quick Details
-
Wheel Size(mm):
-
150*32*16mm
-
Place of Origin:
-
China
-
Brand Name:
-
Richon
-
Voltage:
-
220V/380V 50Hz
-
Dimension(L*W*H):
-
650*650*820mm
-
Weight (KG):
-
168
-
Power/Speed:
-
2800 rpm
-
Rotating Angle of Wheel head:
-
360°
-
Max. Grinding Diameter:
-
250mm
-
Elevating Distance of wheelhead:
-
160mm
-
Motor:
-
3/4HP 380V/220V
-
Horizontal travel of the operating table:
-
265mm
Products Description

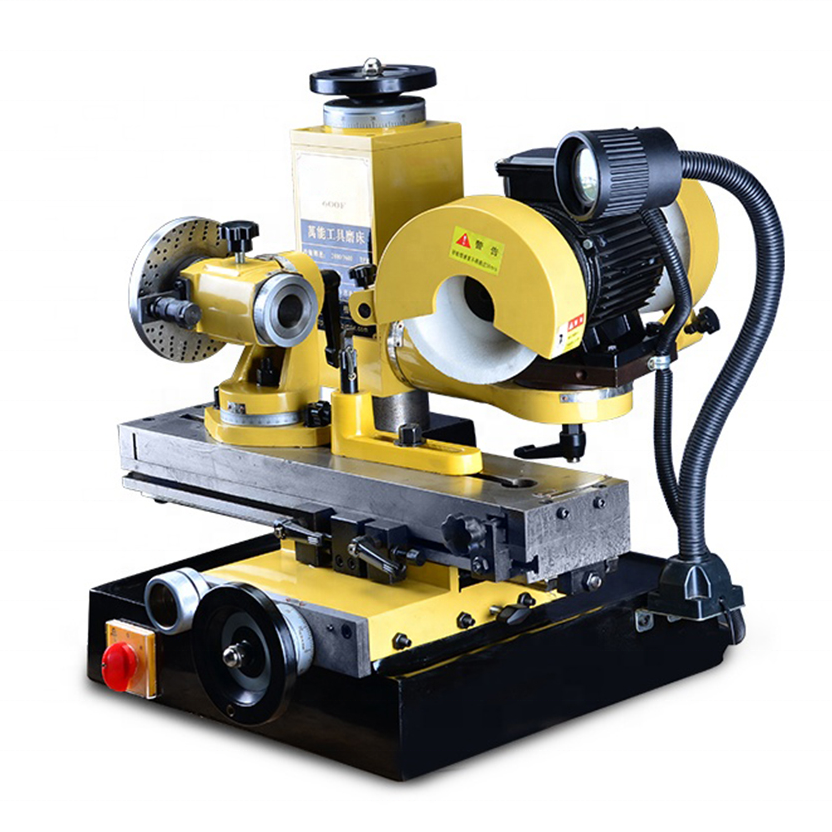

Universal Tool Grinding Machine MR-600F
The working table uses TAIWAN two high precision straight line roiling guide rails,good back and forth movement, high stability,
steady bed platform, dexterous operation.
steady bed platform, dexterous operation.
|
Test Terms / Inspection standards (mm)
|
Basic models
|
Upgraded models
|
|
Workbench stroke
|
Regulation 265MM
|
Regulation 265MM
|
|
Liftingscrew idle stroke
|
Tolerance 0.30
|
Tolerance 0.10
|
|
Workbench screw empty stroke
|
Tolerance 0.30
|
Tolerance 0.10
|
|
Spindle barrel guide key fit Clearance
|
Tolerance 0.30
|
Tolerance 0.01
|
|
Longitudinal parallelism of worktable
|
Tolerance 0.06/200
|
Tolerance 0.02/200
|
|
Horizontal parallelism of worktable
|
Tolerance 0.06/100
|
Tolerance 0.02/100
|
|
T-slotstraightness of worktable
|
Tolerance 0.1/200
|
Tolerance 0.04/200
|
|
Free space between workbenches
|
Tolerance 0.06
|
Tolerance 0.02
|
|
Spindle runout/ flange end runout
|
Tolerance0.06/0.1
|
Tolerance0.02/0.035
|
Tool Grinding Machine MR6025
