Quick Details
-
Type:
-
TIMING BELT
-
Material:
-
Rubber
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GOODLY
-

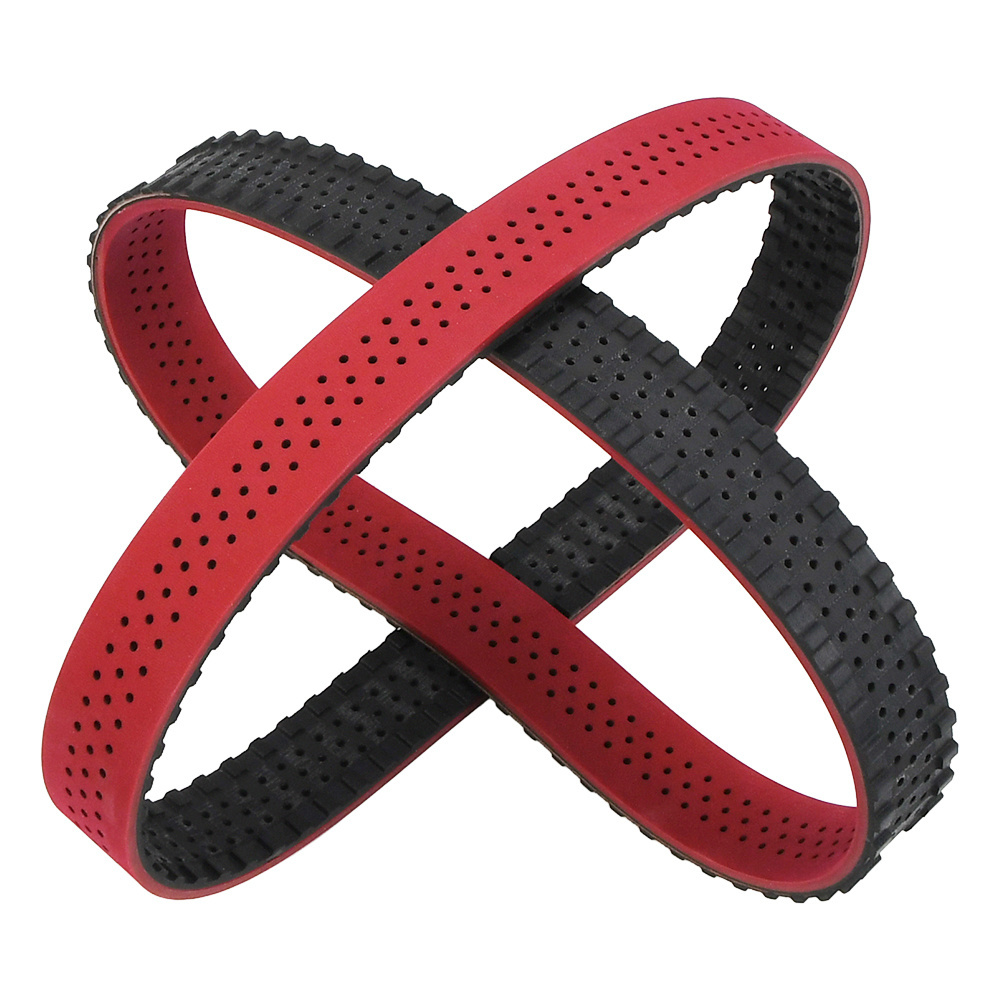

Product name:
-
Pull down belt
-
Color:
-
Red, green, brown, black, white
-
Application:
-
Packaging machine
-
Hardness of coating:
-
Shore A 40~60
-
Width:
-
0~450mm
-
Advantage:
-
Seamless & Wear resistant
-
Thickness of coating:
-
0~14mm
-
Pitch length:
-
180~5600mm
-
Production Method:
-
Compression molding
-
Available processing:
-
Milling grooves, punching, grinding teeth
Quick Details
-
Warranty:
-
6 months
-
Applicable Industries:
-
Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Retail, Printing Shops, pull down belt
-
Standard or Nonstandard:
-
Standard
-
Type:
-
TIMING BELT
-
Material:
-
Rubber
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GOODLY
-
Product name:
-
Pull down belt
-
Color:
-
Red, green, brown, black, white
-
Application:
-
Packaging machine
-
Hardness of coating:
-
Shore A 40~60
-
Width:
-
0~450mm
-
Advantage:
-
Seamless & Wear resistant
-
Thickness of coating:
-
0~14mm
-
Pitch length:
-
180~5600mm
-
Production Method:
-
Compression molding
-
Available processing:
-
Milling grooves, punching, grinding teeth
|
Layer
|
Color
|
Mark Code
|
Description
|
Available Range
|
|
|
Rubber cover
|
RD/GN/WH/BN/BK...
|
W
|
Width of rubber
|
0~1.2mtrs/Roll
|
|
|
|
|
t
|
Thickness of rubber
|
1~14mm
|
|
|
|
|
HS
|
Hardness (Shore A)
|
Sh 40~60A
|
|
|
BK
|
P
|
Pitch
|
|||
|
|
|
N
|
Number of teeth
|
N=L/P
|
|
|
|
|
W
|
Width of bottom belt
|
0~450mtrs(STD.)
|
|
|
Integral
seamless belt
|
RD/GN/WH/BN/BK...
|
L
|
Length of pitch line
|
300~5600mm(L=N*P)
|
|
|
|
|
T
|
Total thickness
|
2~20mm
|
|
|
Machined parameter
Keyway counterbore
|
|
Ls
|
Space of bores
|
Ls=L/n
|
|
|
|
|
n
|
Quantity of bores
|
n=L/Ls
|
|
|
|
|
Wt
|
Width of grind teeth
|
Wt<W(Bottom belt)
|
|
|
|
|
A
|
Slotted length
|
A≤W(Cover)
|
|
|
|
|
B
|
Slotted width
|
B≤W(Cover)
|
|
|
|
|
d
|
Slotted depth
|
0~T
|
|
|
|
|
θ
|
Slotted angle
|
0~180 degree
|
|
|
|
|
Φd
|
Drilling diameter
|
Ød≤B
|
|
