Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LANBOO
-
Model Number:
-

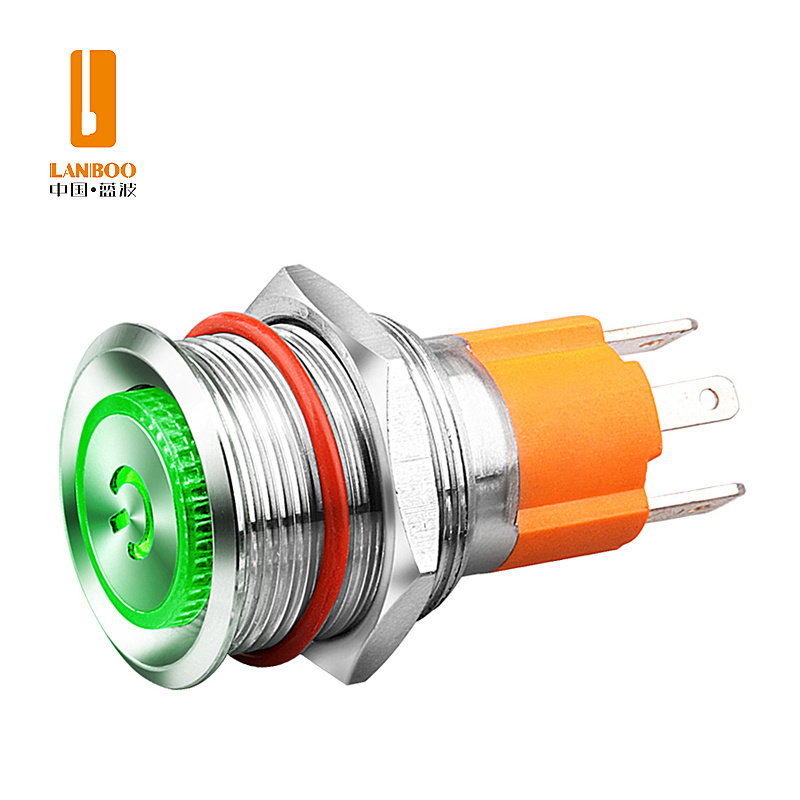

LB16B Push button switch
-
Mounting hole diameter:
-
16mm
-
Head shape:
-
Flat head/ High head
-
Crust material:
-
Stainless Steel/Copper plating/Aluminum oxide
-
Contact configuration:
-
1NO
-
Operation type:
-
Momentary or Latching
-
Emitting Type:
-
Ring LED/Dot LED/Symbol LED
-
LED Voltage:
-
2V/3V/6V/12V/24V/36V/110V/220V/250V
-
Switch Rating:
-
10A / 250VAC
-
Certification:
-
CE CCC ROHS
Quick Details
-
Protection Level:
-
IP65 / IK10
-
Max. Current:
-
10A
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LANBOO
-
Model Number:
-
LB16B Push button switch
-
Mounting hole diameter:
-
16mm
-
Head shape:
-
Flat head/ High head
-
Crust material:
-
Stainless Steel/Copper plating/Aluminum oxide
-
Contact configuration:
-
1NO
-
Operation type:
-
Momentary or Latching
-
Emitting Type:
-
Ring LED/Dot LED/Symbol LED
-
LED Voltage:
-
2V/3V/6V/12V/24V/36V/110V/220V/250V
-
Switch Rating:
-
10A / 250VAC
-
Certification:
-
CE CCC ROHS
Product Description
| Model Description | |
| Model NO. | LB-16B metal push button switch |
| Mounting diameter | 16MM |
| Head shape | Plat Head/High Head |
| Switch Combination | 1NO |
| Operation type | Momentary/self locking |
| Illuminating type | Annular,power symbol |
| Illuminating color | red,green,blue,yellow,orange,white,purple,pink |
| Lamp voltage | 2V/3V/6V/12V/24V/36V/110V/220V/250V |
| Shell material | Stainless steel,aluminum oxide,copper plating |
Technology Parameter
|
The Others Parameters
|
|||
|
Project
|
Parameter | Project | Parameter |
| Contact type | Slow moving single contact | Operation Schedule | Connected:1.5mm,Total:3.5mm |
| Contact Resistance | ≤50mΩ | Actuating Force | about 8N |
| Insulation Resistance | ≥1000mΩ | Mounting panel thickness | ≤13mm. customised the others |
| Dielectric Strength | 1000VAC min | Nut torque | 5~14N.m |
| Ambient Temperature | -30℃~+80℃ | Outshell/Press Key | Stainless Steel/Aluminum Oxide/Copper plate |
| Protection Levels | IK10 | Diffuser | PC |
| Electrical Life |
Rated:2A250VAC- 100,000 times |
Nut | Nickel brass |
| Rated:5A250VAC-50,000 times | Base Seat | ||
| Rated:8A250VAC-20,000 times | Bottom Seat | PA66 | |
| Reated:10A250VAC-20,000 times | |||
| Mechanical Life | Momentary-800,000 times | Pins | H65 Silver Plated |
| Latching-200,000 times | Contact | Environment-friendly Silver Contact | |
| Waterproof | IP65 | Spring | Imported steel wire |
|
Switch Rated Load
|
|||||
| Project | Parameter | ||||
| Reated Insulation Voltage | AC250V | ||||
| Fusing Current | 15A | ||||
| Rated Voltage | DC12V | DC24V | AC110V | AC250V | |
| Rated Current | Nonreactive Load | 10 | 10 | 10 | 10 |
| Inductive Load | 3 | 3 | 3 | 3 | |
| Led Lamp Parameters | |
| Project | Parameter |
| Led type | High Brightness LED lamp,cool |
| Luminous color | Red,Green,Blue,Yellow,Orange,White,Purple,Pink |
| Rated Voltage | AC/DC3~8V,AC/DC9~24V,AC/DC 25~48V,AC110V,AC220V |
| Rated Current | ≤20mA |
| Reference Life | 40,000hours |
