Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
BEST
-
Dimension(L*W*H):
-
as your requests
-
Weight:
-
1 KG
-
Working Temperature Range:
-
1 - 870 ℃
-
Core Components:
-
heating wire
-
After-sales Service Provided:
-
Overseas third-party support available
-
Tube Diameter:
-
8mm/10mm/12mm/14mm/16mm etc.
-
Application:
-
oil, water ,other liquid etc
-
Max temperature:
-
870c(1600F) Electric waterproof Cartridge heater
-
Packaging:
-
Plastic bag , Carton box,wooden box
-
Product name:
-
heating element 24v 80w 100w rod cartridge heater with thermocouple
Quick Details
-
Type:
-
Air Heater
-
Power Source:
-
Electric
-
Voltage:
-
12-480v
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
BEST
-
Dimension(L*W*H):
-
as your requests
-
Weight:
-
1 KG
-
Working Temperature Range:
-
1 - 870 ℃
-
Core Components:
-
heating wire
-
After-sales Service Provided:
-
Overseas third-party support available
-
Tube Diameter:
-
8mm/10mm/12mm/14mm/16mm etc.
-
Application:
-
oil, water ,other liquid etc
-
Max temperature:
-
870c(1600F) Electric waterproof Cartridge heater
-
Packaging:
-
Plastic bag , Carton box,wooden box
-
Product name:
-
heating element 24v 80w 100w rod cartridge heater with thermocouple

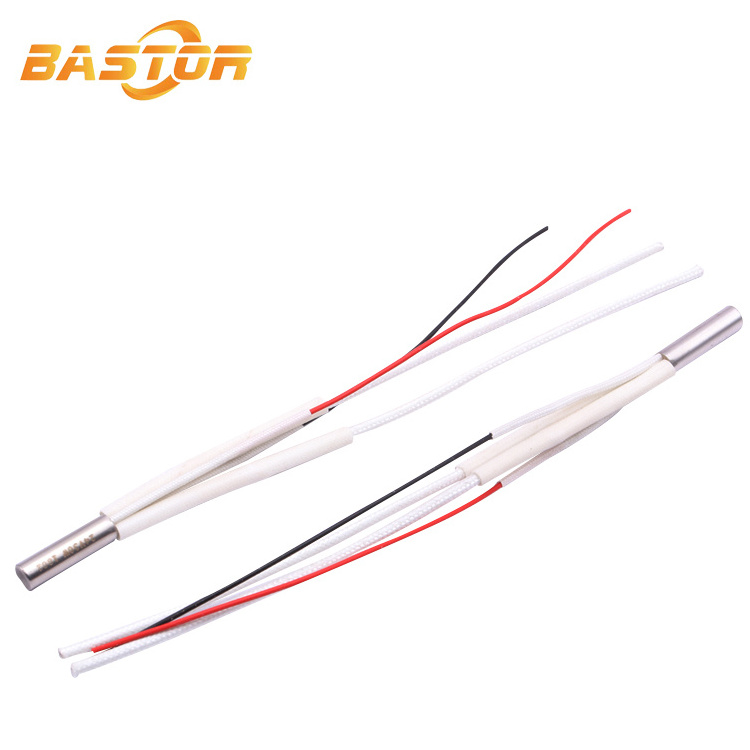

Electric heating element heating element 24v 80w 100w rod cartridge heater with thermocouple
Advantages
internal wiring: high temperature resistance, uniform heating, high thermal conductivity and difficult
cable fracture.
external wiring: high temperature resistance, uniform heating and high thermal conductivity.
Date sheets
| Resistance heating wire | NiCr 80/20 wire |
| Wattage Tolerance | +5%, -10% |
| Resistance tolerance | +10%, -5% |
| Length tolerance | ±1 mm |
| Diameter tolerance | ± 0.02mm |
| Standard Cold Zone | 5-10mm |
| Insulation resistance (cold) | ≥ 500 MΩ |
| Maximum leakage current (cold) | ≤ 0.5 mA |
| Thermocouple Location | type J / K / Ground wire |
Function:
1. Operating conditions: ambient temperature-20℃ ~ + 60℃, relative temperature <80%;
2. Electrical strength: cold withstand voltage AC work 1500V 50Hz lasts for 1 min without breakdown phenomenon;
3. Thermal insulation performance: AC 1000V 50Hz lasts for 1 min without breakdown phenomenon;
4. Leakage current <0.5MA; Insulation resistance> 30MΩ;
