- Product Details
- {{item.text}}
Quick Details
-
Market Segement:
-
Engineering transportation
-
Engine Capacity:
-
> 8L
-
Gross Vehicle Weight:
-
25000kg
-
Drive Wheel:
-
8X4
-
After-sales Service Provided:
-
Onsite Installation, Video technical support, Overseas Call Centers, Field installation, commissioning and training, Online support, Free spare parts, Field maintenance and repair service, Shop warranty
-
Place of Origin:
-
China
-
Engine Brand:
-
imported
-
Dimensions (L x W x H) (mm):
-
8275x2500x3450
-
Cargo Tank Dimension:
-
5200x2300x1350mm
-
Dimension(Lx W xH)(mm):
-
8275x2500x3450
-
Total mass(kg):
-
25000kg
-
Kerb mass(kg):
-
11200kg
-
Rated mass(kg):
-
13670kg
-
Approach / departure angel:
-
16/66
-
Front/rear suspension(mm):
-
1525/1600
-
Max. gradeability (%):
-
28
-
Engine brand:
-
Weichai Engine
-
Engine model:
-
WP10.290E32,290hp
-
Rated output power:
-
213kw
Quick Details
-
Condition:
-
New
-
Horsepower:
-
251 - 350hp
-
Emission Standard:
-
Euro 2
-
Market Segement:
-
Engineering transportation
-
Engine Capacity:
-
> 8L
-
Gross Vehicle Weight:
-
25000kg
-
Drive Wheel:
-
8X4
-
After-sales Service Provided:
-
Onsite Installation, Video technical support, Overseas Call Centers, Field installation, commissioning and training, Online support, Free spare parts, Field maintenance and repair service, Shop warranty
-
Place of Origin:
-
China
-
Engine Brand:
-
imported
-
Dimensions (L x W x H) (mm):
-
8275x2500x3450
-
Cargo Tank Dimension:
-
5200x2300x1350mm
-
Dimension(Lx W xH)(mm):
-
8275x2500x3450
-
Total mass(kg):
-
25000kg
-
Kerb mass(kg):
-
11200kg
-
Rated mass(kg):
-
13670kg
-
Approach / departure angel:
-
16/66
-
Front/rear suspension(mm):
-
1525/1600
-
Max. gradeability (%):
-
28
-
Engine brand:
-
Weichai Engine
-
Engine model:
-
WP10.290E32,290hp
-
Rated output power:
-
213kw
Contact Information
Sebrina Li
Sales Manager
Whatsapp/Mobile/Wechat: +86 18954502596
Maxizm Construction Machinery (Qingdao) Co., Ltd.
(Construction Machinery Professional Exporter)
Web: www.maxizm.com
Maxizm Construction Machinery (Qingdao) Co., Ltd.
(Construction Machinery Professional Exporter)
Web: www.maxizm.com
Please send inquiry or chat with us and let us know the main use, brand, power and other requirements of the machinery you want to purchase. We will recommend the related products to you~
Specification
-SHACMAN 6x4,8x4 Dump Truck, Tipper Truck For Sale
-Left hand drive/ Right hand drive
-Germany MAN technology
-Military MAN axles
-Weichai and Cummins engine
-Good parts supply
-Short delivery time
-Left hand drive/ Right hand drive
-Germany MAN technology
-Military MAN axles
-Weichai and Cummins engine
-Good parts supply
-Short delivery time
|
Model
|
SHACMAN 8×4 DUMP TRUCK
|
|
Dimension(Lx W xH)(mm)
|
8275×2550×3450mm
|
|
Total mass(kg)
|
25000kg
|
|
Kerb mass(kg)
|
11200kg
|
|
Rated mass(kg)
|
13670kg
|
|
Approach / departure angel
|
16/66
|
|
Front/rear suspension(mm)
|
1525/1600
|
|
Max. gradeability (％)
|
28
|
|
Engine brand
|
Weichai Engine
|
|
Engine model
|
WP10.290E32，290hp
|
|
Rated output power
|
213kw
|
|
Torque(N.m r. p. m)
|
1160N.m/1200-1600rpm
|
|
Rated speed(rpm)
|
2200rpm
|
|
Emission Standard
|
E-II
|
|
Displacement(L)
|
9.726L
|
|
Fuel type
|
Diesel
|
|
Driving type
|
8×4
|
|
Axle number
|
3
|
|
Wheel base(mm)
|
3800+1350
|
|
Gearbox
|
FAST 9JS135，9 Forward&1 Reverse，Manual
|
|
Clutch
|
φ430 diaphragm spring
|
|
Front axle
|
7.5T MAN 7500kg
|
|
Rear axle
|
16T STR 2×16000kg
|
|
Ratio
|
5.73
|
|
Steering
|
ZF technology Left-hand drive(LHD)
|
|
Type
|
12R22.5,10+1pc
|

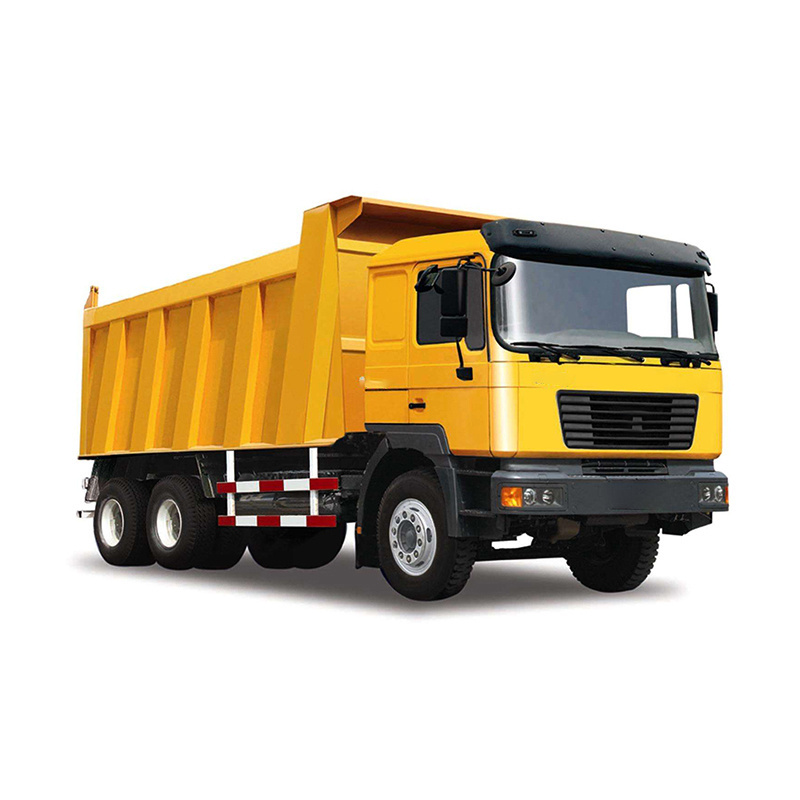

Product Picture
