Quick Details
-
Warranty:
-
25 years
-
Brand Name:
-
JELLSUN
-
Model Number:
-
JM-M180
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
1480*670*50*35mm
-
Application:
-
Solar Power System
-
Product name:
-
Monocrystalline Silicon Solar Panel
-
Solar cell:
-
A-grade
-
Frame:
-
Anodized Aluminium Alloy
-
Junction Box:
-
IP65 Rated
-
Cell Type:
-
N-type 182*91mm
-
Keyword:
-
Pv Module
-
Glass:
-
3.2mm Tempered Low Iron
-
Connector:
-
MC4 Compatible Connector
-
OEM Order:
-
Acceptable
Quick Details
-
Cell size:
-
182mmx182mm
-
Type:
-
PERC, Half Cell, Bifacial, Double-glass, HJT, N-TYPE, TOPCON, BIPV, Flexible, Foldable
-
Panel Efficiency:
-
180W
-
Warranty:
-
25 years
-
Brand Name:
-
JELLSUN
-
Model Number:
-
JM-M180
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
1480*670*50*35mm
-
Application:
-
Solar Power System
-
Product name:
-
Monocrystalline Silicon Solar Panel
-
Solar cell:
-
A-grade
-
Frame:
-
Anodized Aluminium Alloy
-
Junction Box:
-
IP65 Rated
-
Cell Type:
-
N-type 182*91mm
-
Keyword:
-
Pv Module
-
Glass:
-
3.2mm Tempered Low Iron
-
Connector:
-
MC4 Compatible Connector
-
OEM Order:
-
Acceptable
Products Description

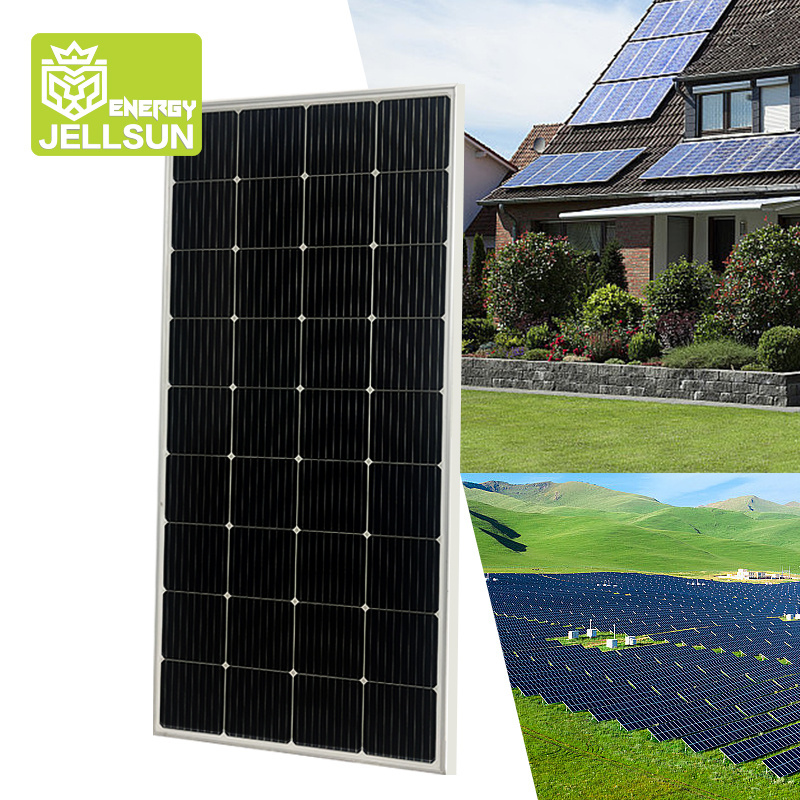

JELLSUN Solar Panel 100w 160w 180w 250 Watts Placas Solares 310 410 540 545 550 555 560 Watt Solar Black PV Panel
|
Module Type
|
JM-M100
|
JM-M120
|
JM-M150
|
JM-M180
|
JM-M200
|
||||
|
Rated Power
|
100W
|
120W
|
150W
|
180W
|
200W
|
||||
|
Rated Voltage Vmp (V)
|
19.7V
|
19.7V
|
20.3V
|
21.2V
|
21.8V
|
||||
|
Rated Current Imp (A)
|
5.56A
|
6.67A
|
8.33A
|
10.48A
|
11.11A
|
||||
|
Short Circuit Current (Isc)
|
6.10A
|
7.21A
|
8.99A
|
11.3A
|
11.95A
|
||||
|
Open Circuit Voltage (Voc)
|
23.64V
|
23.64V
|
24.36V
|
25.44V
|
26.16V
|
||||
|
Module Dimension (mm)
|
780*680*30mm
|
910*680*30mm
|
1135*680*30mm
|
1332*680*30mm
|
1490*680*30mm
|
||||
|
Conversion Efficiency
|
20% ~ 23%
|
|
|
|
|
||||
|
Operating Temperature
|
-40°C ~ +85°C
|
|
|
|
|
||||
|
Maximum Load Capacity
|
5400 Pa
|
|
|
|
|
||||
Details Images
Product packaging
Professional pacakge:wooden pallet +plastic film(most of the supplier will load the materials of items piles by pilesin container,it is easy to get damaged during shipping).
High delivery efficiency. Self-operated logistics in Southeast，Africa, Australia.
Solar panel 100% for export,with rich experience of building regulations for different countries
.
Certifications
Recommend Products
FAQ
F A Q .
1.Q:How long is the warranty?
A:The solar panel warranty 10 years of product defects in materials & workmanship. 10 years for 90% of warranted minimum power output. 25 years for 80% of warranted minimum power output.The solar power station warranty is from 2-3 years.
2.Q:What kind of certificates your solar energy products have?
A:JELLSUN solar items have acquired UN38.3, CE, FCC, EMC ,UL,PSE and MSDS certificates, whichis able to satisfy most country’s importing requirements.
3.Q:Can you supply OEM &ODM service ?
A:Yes ,as a 8 years professional manufacturer of solar panel and solar home system,we offer OEM and ODM service.
4.Q:Can I customize solar items ?
A:Yes. Let me know the specific customization requirements and I will get back to you as soon as possible.
5.Q:Can I get the solar items sample?
A:Yes, please leave your contact information and our sales manager will contact you soon.
6.Q: How to place an home system or business energy storage systems order?
A: If you want to place an order, Please feel free to let us konw that will design according to your needs
