Quick Details
-
Voltage:
-
220V-380V
-
Power:
-
5.5Kw-8.0Kw
-
Dimension(L*W*H):
-
4500*1800*2600/3400*2000*1900
-
Weight:
-
3900
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Machine for:
-
Automatic Equipment
Quick Details
-
Production Capacity:
-
600pcs/h
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
TPET
-
Voltage:
-
220V-380V
-
Power:
-
5.5Kw-8.0Kw
-
Dimension(L*W*H):
-
4500*1800*2600/3400*2000*1900
-
Weight:
-
3900
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Machine for:
-
Automatic Equipment
Product Description

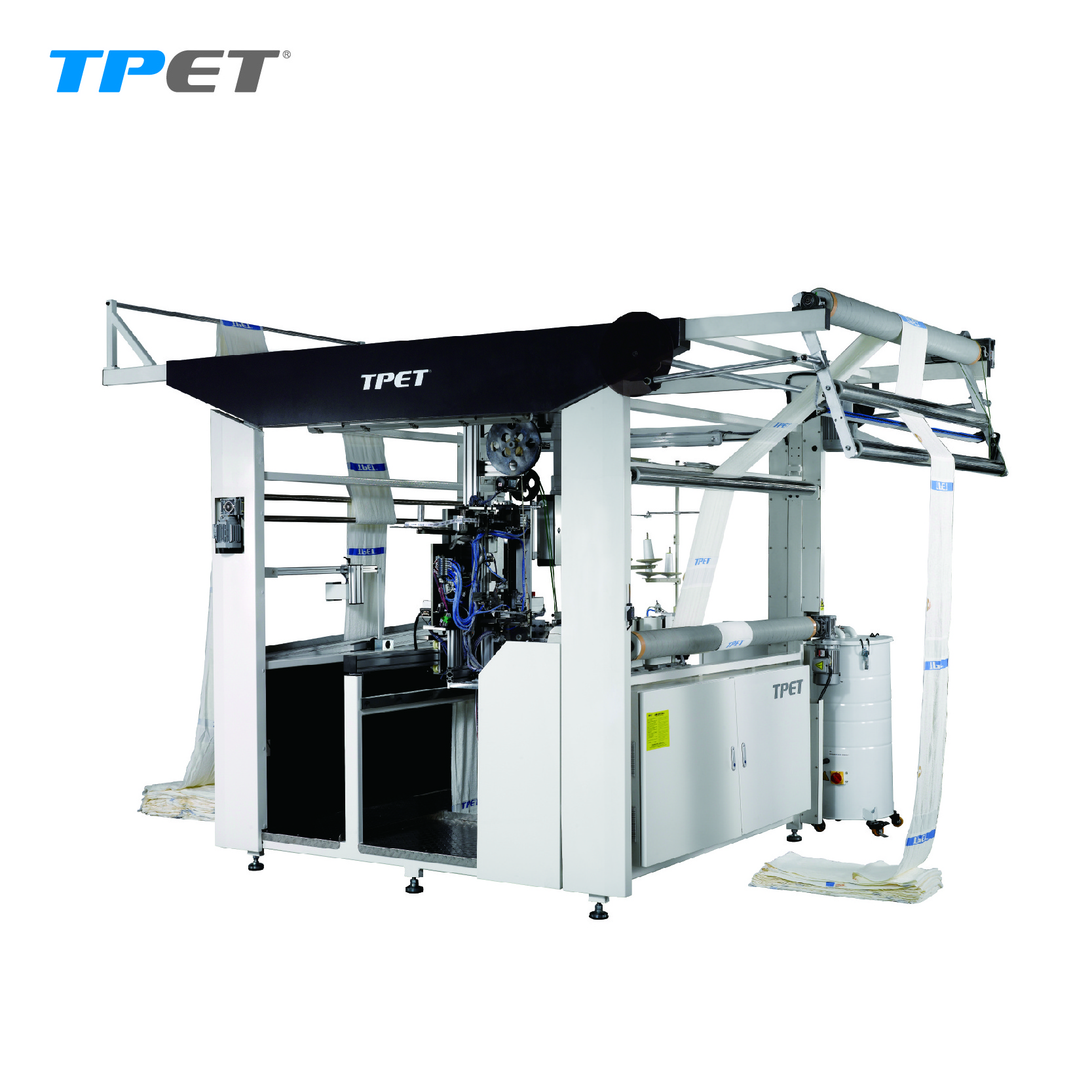

2ND Generation Automatic Terry Towel Length Hemming Machine
Automatic two sides hemming and stitching ,with two kinds of label attachments available (folded label and hanger) one
machine couldsave up 6 workers
.
2ND Generation Automatic Terry Towel Cross Cutting & Hemming Machine
Automaticly cross sewing two sides, automatic output finished products，5s/pc, one machine could save up 7 labors
.
Product Details
With the global origination for our Full Automatic Whole Cotton Towel Machine, labor-saving and unmanned production processes are achieved by the integration of cutting and sewing.Acquired 11 state-authorized patents of the utility model.
It is suitable for making both standard-sized towels and bath towels automatically to promote the transformation and upgrading of your company.
|
Front Part
|
|
Rear Part
|
|
||
|
Weight
|
1400KG
|
Weight
|
2500KG
|
||
|
Dimension
|
410*235*288CM
|
Dimension
|
450*200*250CM
|
||
|
Power
|
8kw
|
Power
|
8.5kw
|
||
|
Air pressure
|
>0.6MPA
|
Air pressure
|
>0.6MPA
|
||
|
Voltage
|
380V
|
Voltage
|
220V
|
||
|
Hour Capacity
|
stitch length:3-4mm
double lable: 600-720m/h
|
Hour capacity
|
stitch length 3mm, width 40cm.600pcs/h
|
||
|
Sewing speed
|
4500r/min
|
Sewing speed
|
4000r/min
|
||
|
Size range
|
width:0.22-1.2M
|
Size range
|
width:15-42cm
length:23-150cm
|
||
|
Label size
|
60-140mm before folding, Max hange length 130mm
|
Label size
|
width: 10-40mm length: 30-70mm fold label and straight label available
|
||
|
Stitches Available
|
|
Stitches Available
|
chain/lock stitch optional
|
||
Product features
1、Auto thread cutting(thread-ends within 2MM)extraordinary quality.
2、Auto four-side folding and sewing,faster speed.
3、 Auto label-sewing(multiple labels)
4、 Auto fabric cutting and thread trimming
5、 Auto Stack-up
6、 Intelligent Touch Operating System
7、SPV Data Management System(Cloud Management)
8、 Auto Button-Start,Convenient Operation
9、 Auto Edge-cutting,Size-Standardized
Detailed Images
Automatic correction
Single needle, double needle, and triple needle stitching are all optional options
.
Automatic double-sided
horizontal sewing and trimming
Efficiency can reach 18 meters per minute
.
High pressure vacuum cleaner
The incision is flat and there is no drawing phenomenon
.
Automatic length setting and
precise positioning cutting
Servo control, product standardization
.
Bidirectional cutting device
Automatically sew the other two sides
.
Automatic
shuttle changing function
Continuous and efficient operation Improve flat seam efficiency
.
Automatic production of
finished products
Automatic feeding of conveyor belt
.
Our Company
Since its establishment in 2009,TPET has been dedicating itself to Textile garment、digitalized Home-textile industry、intellectualized production、innovation-driven and independent R&D.We are the professional provider of production solutions to promote the transformation and upgrading in sewing field.We are so grateful and appreciated with the great trust and huge support from large customers and industry leaders as TPET striving over the years.
Certifications
Packing & Delivery
|
Packaging
|
|
|
|
Size
|
depend on machine size
|
|
|
Weight
|
depend on machine size
|
|
|
Packaging Details
|
The normal package is wooden box(Size: L*W*H). If export to european countries, the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
|
|
|
delivery
|
|
|
|
30 workdays after received the deposit or l/c
|
|
|
|
|
|
|
|
Packaging Details
|
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
|
|
Our Service
Pre-Sales Service
1.Fastly and professional reply to you about your questions for our full automatic towel machine.
2.Expert sales person will provide you professional suggestion to you based on your correct needs for the configurations of the machines
3.Detailed and clearly explain to you when you come to our factory for visiting or negotiate online before contract.
After-Sales Service
1.Training how to instal the machine, training how to use the machine.
2. Engineers available to service machinery overseas.
3.Guarantee you steady supply for the spare parts with the lower price.
FAQ
Q:Are you available for on-the-spot invitation?
A:We do welcome our new and old friends come here to have a visitation.Besides we should send you our exposition and relative information to promote a face-to-face meeting if you would like to.
Q:Is the price offered changeable?
A:We offer reasonable price for every client,and the price is changeable according to purchasing amount,customization.
Q:How about the quality?
A:The main subassembly and raw materials are all supplied by large companies.Key parts are research and developed by our own staff.Professional assembly line work and strict quality test system can ensure your high quality requirements.
Q:How's the installation?
A:Professional installation and training at customer spot factory,during time decides by customers' needs.(technicians' travel fees should pay by customers)
Q:How's the after-sale service and warranty time?
A:We offer engineers available to service overseas under merchandiser's supervision and translation.12 months since machinery installation finished.we can send the broken comsumable parts free once comfirmed within two years.
