We are the buying office agent, familiar with 3C factories. We are able to search and find the items you want with most suitable price and moderate quality.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Orico
-
Model Number:
-
CDH-9N
-
Place of Origin:
-
China
-
9-in-1:
-
M.2 NVMe SSD Enclosure+USB-A 3.1*3+USB-C+HD-MI+3.5mm Audio+RJ45+SD+TF
-
Compatible Type:
-
NVMe 2230/2242/2260/2280 M.2 SSD
-
Transmission Speed:
-
10Gbps(theoretical speed)
-
Supporting Capacity:
-
2TB (not including SSD)
-
Output Interface:
-
USB3.1 GEN2 Type-C
-
Supported System:
-
for Windows 7/8/8.1/10, for Mac OS, for Linux
-
Installation:
-
Screw Fixing
-
Material:
-
Aluminum Alloy
-
Dimensions:
-
141mm(L)*73mm(W)*16.5mm(H)
Quick Details
-
Size:
-
2230/2242/2260/2280 M.2 SSD
-
Case Material:
-
Aluminum
-
Internal Interface:
-
M.2 NVMe
-
Brand Name:
-
Orico
-
Model Number:
-
CDH-9N
-
Place of Origin:
-
China
-
9-in-1:
-
M.2 NVMe SSD Enclosure+USB-A 3.1*3+USB-C+HD-MI+3.5mm Audio+RJ45+SD+TF
-
Compatible Type:
-
NVMe 2230/2242/2260/2280 M.2 SSD
-
Transmission Speed:
-
10Gbps(theoretical speed)
-
Supporting Capacity:
-
2TB (not including SSD)
-
Output Interface:
-
USB3.1 GEN2 Type-C
-
Supported System:
-
for Windows 7/8/8.1/10, for Mac OS, for Linux
-
Installation:
-
Screw Fixing
-
Material:
-
Aluminum Alloy
-
Dimensions:
-
141mm(L)*73mm(W)*16.5mm(H)
Products Description

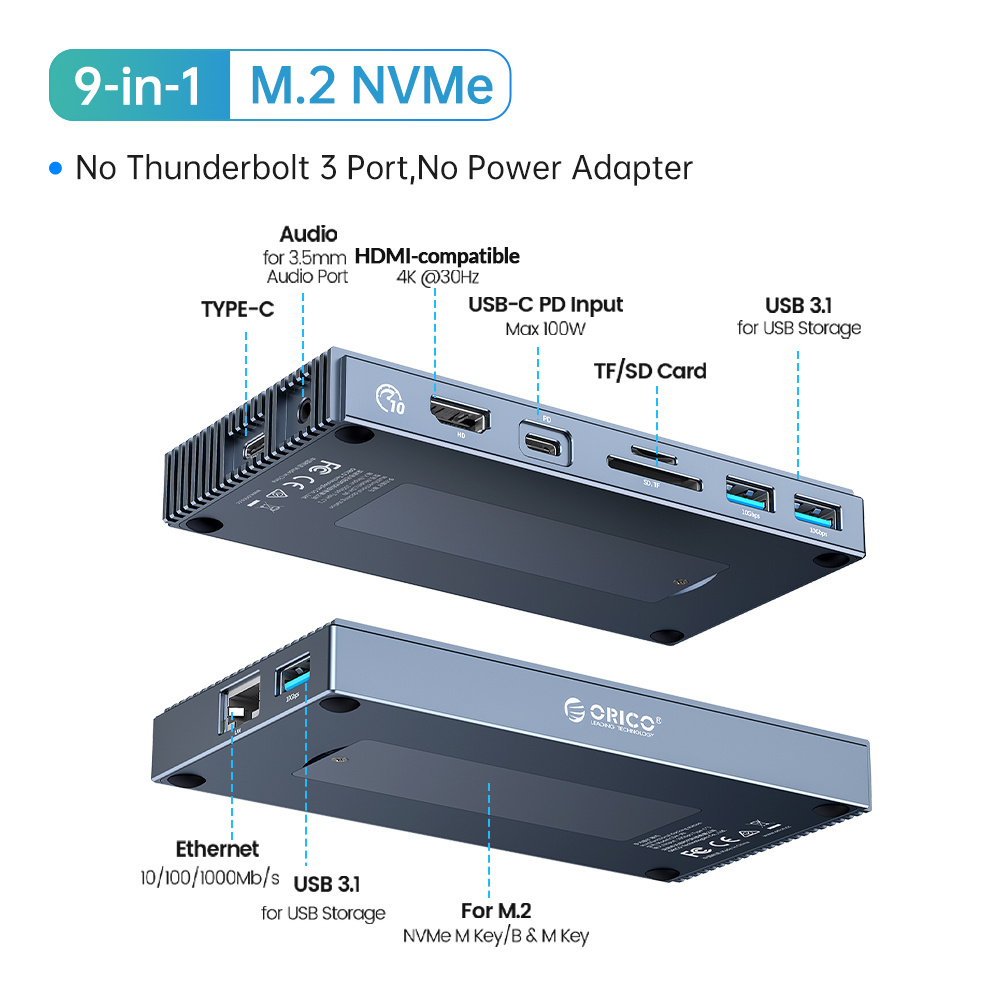

ORICO 9-in-1 Type-C Docking Station with M.2 NVMe SSD Enclosure +
USB-A 3.1*3+ PD 100W USB-C+4K HD-MI+3.5mm Audio+RJ45 Ethernet+SD+TF
No more limited device storage and sluggish data transfer. One is All!
1. M.2 NVMe Enclosure:
An NVMe slot is equipped at the bottom of the dock. You can insert an M.2 NVMe SSD to extend additional storage up to 4TB, which supports a 10Gbps transfer speed.
It supports M-Key and B&M-Key 2230/2242/2260/2280 NVMe SSDs. Do not support SATA drives.
An NVMe slot is equipped at the bottom of the dock. You can insert an M.2 NVMe SSD to extend additional storage up to 4TB, which supports a 10Gbps transfer speed.
It supports M-Key and B&M-Key 2230/2242/2260/2280 NVMe SSDs. Do not support SATA drives.
2. USB Ports - 10Gbps faster speed:
There are 3 * USB A ports and 2 * USB C ports extended with the dock. All USB ports achieve up to 10Gbps faster speed .
USB A/USB C port Input: Max 5V/1.5A, Output: 5V/0.9A
While connecting the dock with the external power supply,
USB A port output: 5V/1.5A
100W USB C port output: 20V/3A (5A Max) 100W PD quickly charges your laptop .
(Please note the PD charger is not provided )
There are 3 * USB A ports and 2 * USB C ports extended with the dock. All USB ports achieve up to 10Gbps faster speed .
USB A/USB C port Input: Max 5V/1.5A, Output: 5V/0.9A
While connecting the dock with the external power supply,
USB A port output: 5V/1.5A
100W USB C port output: 20V/3A (5A Max) 100W PD quickly charges your laptop .
(Please note the PD charger is not provided )
3. HD-MI Port:
The HD-MI port supports 4K@30Hz display with a maximum 3840×2160 resolution for a better entertainment experience.
Support MST function (Note: not support Mac system, Windows system can be completely switched by Windows key +P)
The HD-MI port supports 4K@30Hz display with a maximum 3840×2160 resolution for a better entertainment experience.
Support MST function (Note: not support Mac system, Windows system can be completely switched by Windows key +P)
4. Gigabit Ethernet-1000M:
The USB C dock is equipped with an RJ45 Gigabit Ethernet port and supports a stable network speed up to 1 Gbps and auto 10/100/1000Mbps.
The USB C dock is equipped with an RJ45 Gigabit Ethernet port and supports a stable network speed up to 1 Gbps and auto 10/100/1000Mbps.
5.
Audio/Mic 2-In-1 Port
3.5mm audio port support audio input and output and is compatible with devices including speaker, earphone and microphone.
3.5mm audio port support audio input and output and is compatible with devices including speaker, earphone and microphone.
6. SD/TF Card Reader (Speed up to 104 Mbp/s):
Suit for USB-C/Type-C/Thunderbolt 3 devices to access files from SD/TF card reader , quickly view your photos or videos, perfect for Photographer or Designer or Video editor, etc. Note: TF and SD cards can not be used at the same time.
Suit for USB-C/Type-C/Thunderbolt 3 devices to access files from SD/TF card reader , quickly view your photos or videos, perfect for Photographer or Designer or Video editor, etc. Note: TF and SD cards can not be used at the same time.
Improved Heat Dissipation: the striped aluminum alloy shell can extend the heat dissipation area and effectively reduce the damage caused by the heat generated by the high-speed work of the SSD. (Slightly stripped shell extends heat dissipation, the temperature on the surface is about 50 ℃, which is a normal phenomenon, please be careful when touching it. The data comes from the ORICO laboratory).
Note: Products with electrical plugs are designed for use in the US. Outlets and voltage differ internationally and this product may require an adapter or converter for use in your destination. Please check compatibility before purchasing.
|
Name
|
ORICO 9-in-1 Type-C Docking Station with M.2 NVMe SSD Enclosure +
USB-A 3.1*3+ PD 100W USB-C+4K HD-MI+3.5mm Audio+RJ45 Ethernet+SD+TF
|
|
|
|||
|
Model
|
CDH-9N
|
M2PV-C3
|
M2PF-C3
|
|||
|
Compatible Type
|
2230/2242/2260/2280 M.2
NVMe SSD
|
|
|
|||
|
Transmission Speed
|
10Gbps
|
|
|
|||
|
Supporting Capacity
|
2TB (Not Including SSD)
|
|
|
|||
|
Built-in Chip Interface
|
M.2 NVMe
|
|
|
|||
|
Supported System
|
for Windows 7/8/8.1/10, for Mac OS, for Linux
|
|
|
|||
|
Function
|
UASP,Driver Free,Hot Plug,Auto Sleep
|
|
|
|||
|
Output Interface
|
USB3.2 GEN2 Type-C
|
|
|
|||
|
MOQ
is more than
100
, contact us for
price
and
discount
|
|
|
|
|||
