Quick Details
-
Input Voltage(V):
-
90-250V ,50-60Hz
-
Lamp Luminous Flux(lm):
-
7560
-
CRI (Ra>):
-
95
-
Working Temperature(℃):
-
-20 - 40
-
Working Lifetime(Hour):
-
60000
-
Place of Origin:
-
China
-
Brand Name:
-
MSLighting
-
Model Number:
-
LED 1001F
-
Color Temperature(CCT):
-
Cool White + Warm White+ Pure White
-
LED Light Source:
-
14*20W RGBW 4IN1 Multi-Color
-
Lamp Luminous Efficiency(lm/w):
-
99
-
Beam Angle:
-
6-120degree can be choosed
-
Power Consumption:
-
280W
-
Display:
-
LED Display
-
Control mode::
-
DMX 512 ; Autorun and Master/Slave,sound active,
-
DMX Data In/Out::
-
XLR 3Pin,XLR 5PIN
-
Light Projecting Distance:
-
1-50m
-
Electronic Dimmer::
-
0-100% linear dimmer
Quick Details
-
Warranty(Year):
-
2
-
Lamp Body Material:
-
Aluminum
-
Application:
-
Hotel
-
Input Voltage(V):
-
90-250V ,50-60Hz
-
Lamp Luminous Flux(lm):
-
7560
-
CRI (Ra>):
-
95
-
Working Temperature(℃):
-
-20 - 40
-
Working Lifetime(Hour):
-
60000
-
Place of Origin:
-
China
-
Brand Name:
-
MSLighting
-
Model Number:
-
LED 1001F
-
Color Temperature(CCT):
-
Cool White + Warm White+ Pure White
-
LED Light Source:
-
14*20W RGBW 4IN1 Multi-Color
-
Lamp Luminous Efficiency(lm/w):
-
99
-
Beam Angle:
-
6-120degree can be choosed
-
Power Consumption:
-
280W
-
Display:
-
LED Display
-
Control mode::
-
DMX 512 ; Autorun and Master/Slave,sound active,
-
DMX Data In/Out::
-
XLR 3Pin,XLR 5PIN
-
Light Projecting Distance:
-
1-50m
-
Electronic Dimmer::
-
0-100% linear dimmer

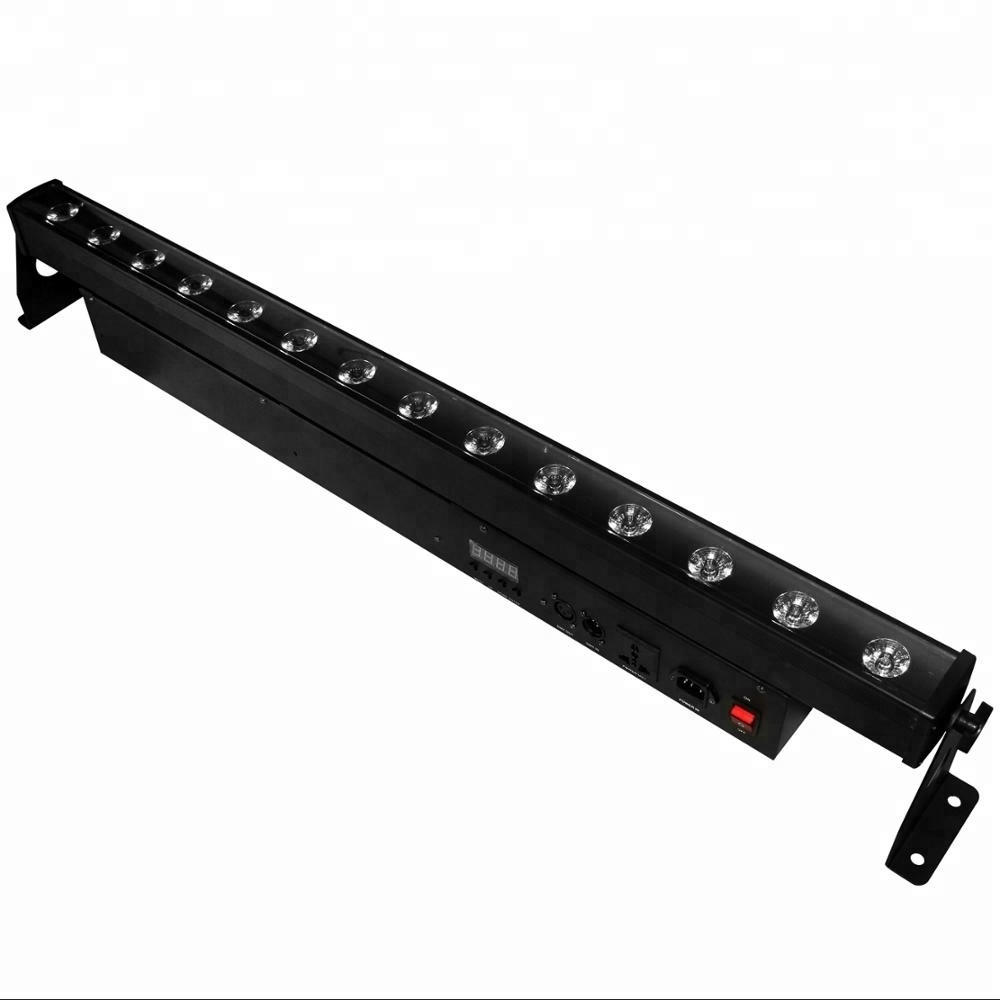

LED Strobe light/LED High Power BAR/LED Stage light and led Effect light/DMX LED light,LED Color Change Light,LED ,LED WASHER
| LED 1001Series,Indoor ,Point Control in Each Color Each Lamp. | ||||
| Model NO | LED 1001F | LED 1001G | LED 1001H | LED 1001I |
| Light Source | 14*20W | 18*20W | 18*10W | 18*15W |
| DMX CH | 4/7/44CH | 4/7CH | 4/7CH | 5/8CH |
| LED Color | RGBW 4IN1 | RGBWA 5IN1 | ||
| IP Rating | Indoor | |||
| Input Voltage(V) | 90-250V ,50-60Hz | |||
| Housing Material | Aluminum + Plastic Cover | |||
| Control mode | DMX 512, Auto run and Master/Slave,sound… | |||
DMX Channel: 4CH(RGBW)
CH 1 - Red (1-255, Dimmer,from dark to light)
CH 2 - Green (1-255, Dimmer,from dark to light)
CH 3 - Blue (1-255, Dimmer,from dark to light)
CH 4 - White (1-255, Dimmer,from dark to light)
DMX Channel: 7CH(RGBW)
CH 1 - General dimmer (1-255, Dimmer,from dark to light)
CH 2 - Red (1-255, Dimmer,from dark to light)
CH 3 - Green (1-255, Dimmer,from dark to light)
CH 4 - Blue (1-255, Dimmer,from dark to light)
CH 5 - White (1-255, Dimmer,from dark to light)
CH 7 - Strobe & Color change/ color gradual change speed adjustment
(1-255, Speed adjustment, from slow to fast)
Control Method:
Protocols: DMX 512
Control channel: 4CH/7CH/44CH
Control modes: DMX 512, Auto run and Master/Slave,sound…
Data in/out: locking 3-pin XLR
Function: it is max mix color, color change, flash, speed/luminance the adjustable
Thermal:
Maximum ambient temperature: 40°
Maximum housing temperature: 60°
