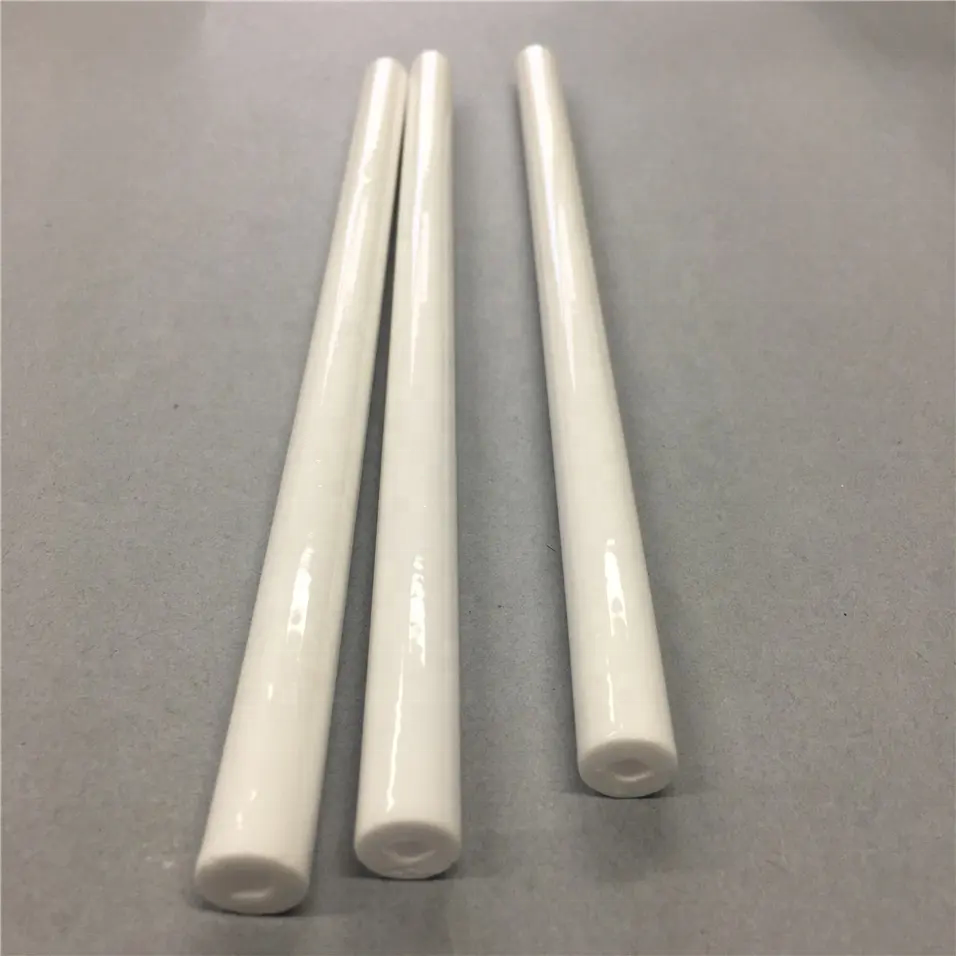

High temperature insulation Al2o3 alumina ceramic porcelain tube

High temperature insulation Al2o3 alumina ceramic porcelain tube

FOB Reference Price: Get Latest Price

≥1 Pieces

US $1

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: STA

Product name:: Alumina ceramic tube

Shape:: Rod/Tube/Sleeve/Roller/Bushing

Alumina Content:: 85% 90% 95% 99% 99.7%

Max. working temperature:: 1800C

composition:: mullite-corundum

size:: OD.20mm to 70mm or according to customer request

Bore:: single,double,four,multi

color:: Ivory White Yellow Pink

thickness:: 5~6.5mm or customized

End:: Open Both Ends or Closed One End

Quick Details

Material:: Alumina Ceramic

Place of Origin:: Henan, China

Model Number:: STA-AL2O3-18

Brand Name:: STA

Product name:: Alumina ceramic tube

Shape:: Rod/Tube/Sleeve/Roller/Bushing

Alumina Content:: 85% 90% 95% 99% 99.7%

Max. working temperature:: 1800C

composition:: mullite-corundum

size:: OD.20mm to 70mm or according to customer request

Bore:: single,double,four,multi

color:: Ivory White Yellow Pink

thickness:: 5~6.5mm or customized

End:: Open Both Ends or Closed One End

Specification

1. alumina porcelain Tube

2.Max working temperature 1800
3. High Purity 99.7%
4. Excellent Insulation

Product Description

High temperature insulation Al2o3 alumina ceramic porcelain tube

The Alumina ceramic tube are constructed of pure 99.7% Al2O3 that has superior gas and vacuum tightness and excellent insulating properties even at elevated temperatures. The alumina ceramic tube/rod/bar is an ideal wear-resistance material for delivering the sand, mine, ash dregs and molten aluminium, has excellent conductivity, high machinery strength and high temperature resistance, can resist to the acid, high temperature, corrosion and static electricity. Al2O3 is the most important technical ceramic material. It is characterized by high hardness, high compressive strength and corrosion resistance even at high temperatures. Through the content of Al2O3 in the material,these properties can be tailored to the application of customer. Other material like Mullite , Zirconia, Silicon Carbide, Silicon Nitride bonded Silicon Carbide is also available.

Features of alumina porcelain Tube

1. High quality: Max working temperature 1800C, high abrasive resistance.

2. Various sizes for your choose, diameter from 1-120mm, length from 10-2000mm

3. Various processing methods make right tubes for different usage, including extruding, casting, pressing etc.

4. Tubes can be grinding, drilling holes etc according to the requirements of customers.

5.Stiffness texture.

6. Large quantity in stock can provide fast delivery and very competitive prices.

Main performance index of alumina porcelain Tube

performance index	Measuring unit	High purity alumina	Alumina	High alumina
Al2O3	%	99.7	99.3	85
SiO2	%	less than0.1	—	—
Density	g/cm3	3.95	3.88	3.2
Water absorption	%	0	0.01	0.2
Cld compressive strength	Mpa	450	350	200
20 degree Celsius leak rates	Torr/L.sec	less than10 ^-11	less than10 ^-11	less than10 ^-11
Twisting in high temperature	mm	1700 degree Celsius 0.2 allowance	1600 degree Celsius 0.2 allowance	1400 degree Celsius 0.2 allowance
Bonding in high temperature		1700 degree Celsius non-caked	1600 degree Celsius non-caked	1400 degree Celsius non-caked
20—1000 degree Celsius coefficient of thermal expansion	mm.10-6/degree Celsius.m	8.6	8.2	8.2
Thermal conductivity	W/m.k	25	25	25
Electric insulation strength	KV/mm	20	20	15
20 degree Celsius direct current insulating resistance	Ohm/cm	10 ¹⁴	10 ¹⁴	10 ¹⁴
High-temperature insulation resistance	1000 degree Celsius MΩ	≥0.08	≥0.08	≥0.08
High-temperature insulation resistance	1300 degree Celsius MΩ	≥0.02	≥0.02	≥0.02
Thermal shock resistance		1550 degree Celsius 6 times not cracked	1550 degree Celsius 6 times not cracked	1300 degree Celsius 3 times not cracked
Maximum service temperature	degree Celsius	1900	1800	1400

Product Show

Product Line of alumina porcelain Tube

Standrad Size of alumina porcelain Tube

Furnace Tube
Diameter OD/ID (mm)	30/25	40/34	50/44	60/53	70/63	80/70	85/75	90/80	100/90	110/100
Max Length (mm)	2000	2000	2000	2000	2000	1700	1600	1600	1500	1200
Thermocouple Protection Tube
Diameter OD/ID (mm)	1.6667	1.5	1.6	10/7	1.5	1.4	1.5	1.3333	1.2143	20/16	25/19
Max Length (mm)	300	1000	1600	2000	2000	2000	2000	2000	2000	2000	2000
Thermocouple Insulator
	Single Bore				Double Bores				Four Bores
Diameter OD/ID (mm)	OD1-12 ID0.5-8				OD1-12 ID0.2-4				OD1.6-12 ID0.35-3.5
Max Length (mm)	2000				2000				2000

Other sized alumina porcelain Tube can be made according to your need!

Packaging & Shipping

alumina porcelain Tube

Alumina or Aluminium Oxide(Al 2 O 3 ) in its various of levels of purity is used more often than any other types of advanced ceramic materials. Alumina cermaic is a kind of structural ceramics, with insulation resistance, voltage resistance, high strength, good thermal conductivity, dielectric loss, stable electrical performance characteristics. Used in electronic ceramic substrates, ceramic electrical insulation, vacuum devices, spark plugs etc.

Why Choose STA

1. Your inquiry related to our products or prices will be replied within 24hours.

2. Well-trained and experienced staffs to answer all your inquiries in fluent English.

3. All our products have 1-year warranties.

4. Offering the support to solve the problem in the application or selling period.

5. Competitive prices based on same quality.

6. Guarantee samples quality same as mass production quality.

Factory

STA is a leading manufacturer for laboratory high temperature muffle furnace, tube furnace, vacuum furnace, atmosphere furnace, dental singtering furnace, bottom loading furnace, bogie hearth furnace, mosi2 heating elements, sic heating elements , alumina ceramic tube pipe, refractory material, ceramic fiber board blanket.

Our advanced and professional technology, complete production lines, experienced staff and strict corporate system ensure our products quality. We pride ourselves on quality products, service and pricing, and believe that the three aspects are equally important to ensure the long-term success of overseas purchasing program .

STA protect your irreplaceable data and valuable equipment with the most dependable and popular line of uninterruptible industrial products.

STA distinguishes itself from other industrial company by the extraordinary results it delivers. Our ability to routinely produce these results derives from our unique combination of the following advantages:

1. Unmatched experience and expertise.

2. Proprietary benchmarks, best-practice methodologies, and work processes

3. Highly flexible and responsive team deployment.

OEM SERVICE

1.You give us an inquiry or leave a message.

2.We will quote to you.

3.Negotiation payment after all details confirmed.

4.We will send the goods to you timely.

5.If you need special and customized design,the delivery time will be based on the quantity and

specifications according to your requirement.

6.Devery time:7 days after your payment.

7.After-sale service: We will take responsibility of any problem caused by manufacturer, offer 100%

satisfied guarantee

FAQ

Q:Why choose STA?

A:35 years experience.Point to point service.Reasonable price.Multiple selections.

Q:Which payment terms you will accept?

A: T/T, West Union,Moneygram or Other.

Q: What is the delivery time?

A: For some normal standard size furnaces and components, we have in stock; So we can send out in 2-3 days; Others the delivery time is from 15 days to 20 days according to different products request.

Q: What logistic shipping ways you can send the products?

A: We can send goods out by sea, by air or by express according to per customer's requirement.

Q: What about your after-sale service?

A: Our warranty time is one year for defects in materials or workmanship. During this period, we will replace the bad components free of charge for customers,but this warranty does not cover consumables and failures

because of abusing, misusing, accident or unauthorized alteration or repairing. Heating element is not included inside .
