Quick Details
-
Model Number:
-
N1030A
Quick Details
-
Warranty:
-
1year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
PINTECH
-
Model Number:
-
N1030A
Bandwidth:100 MHz
Max. measuring voltage:1500V DC,3000Vp-p AC
1% accuracy,compatible with any oscilloscope,standard BNC interface.
2 attenuation ratio range,easy to operating
|

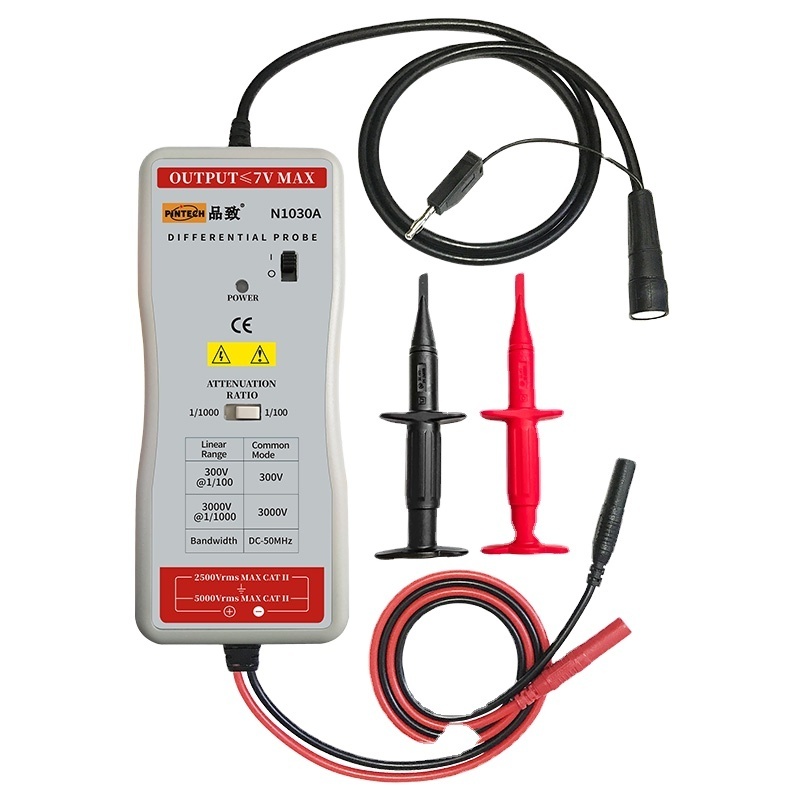

Product Introduction |
|
|
Product Name |
N1030A (3000Vp-p,50MHz) |
|
Short Description |
PINTECH N1030A(50MHz X100 X1000 3000Vp-p) |
|
Specification |
|
|
Bandwidth |
DC-50MHz |
|
Accuracy |
±1% |
|
Input Impedance |
8MΩ//1 PF each side ground |
|
Input Voltage |
|
|
-Swing(into 50 KΩ load) |
7V |
|
-Offset(typical) |
<±5Mv |
|
Typical |
50Ω(for using 1M ohm input system oscilloscope) |
|
Power Supply |
|
|
-Options |
power leads |
|
Length of BNC Cable |
90cm |
|
Length of Input Leads |
60cm |
|
Weight |
500g |
|
(L×W×H) |
|
|
Attenuation Ratio |
1:1000/100 |
|
CMRR(typical) |
-80dB@60Hz,-50d B@100KHz |
|
maximum input differential-mode voltage(Vp-p) |
|
|
Maximum input and ground potential difference(Vp-p) |
3000V@1/1000 & 1/100 |
|
(CMRR) |
CATII 1000V,CATⅢ 600V |
