Quick Details
-
Model number:
-
VoltDefender, VP-1
-
Color:
-
Gray
-
Display:
-
LED voltage protector
-
Delay timer:
-
3 Min
-
Application:
-
Home & Office Equipment
-
Current Type:
-
AC
Quick Details
-
Phase:
-
Single Phase
-
Place of Origin:
-
Taiwan
-
Model Number:
-
VP-1
-
Model number:
-
VoltDefender, VP-1
-
Color:
-
Gray
-
Display:
-
LED voltage protector
-
Delay timer:
-
3 Min
-
Application:
-
Home & Office Equipment
-
Current Type:
-
AC
Specification
|
Porduct Name
|
VOLTDEFENDER®
|
|
|
|
|||
|
Model
|
VP-1
|
VP-2
|
SP-1
|
SP-2
|
|||
|
Nominal Voltage
|
110V AC
|
110V AC
|
110V AC
|
110V AC
|
|||
|
Max Current
|
12A
|
12A
|
12A
|
12A
|
|||
|
Voltage Range
|
90V~140V AC
|
90V~140V AC
|
90V~140V AC
|
90V~140V AC
|
|||
|
Frequency
|
60Hz
|
60Hz
|
60Hz
|
60Hz
|
|||
|
Surge
|
No
|
No
|
Yes
|
Yes
|
|||
|
Plug
|
NEMA 5-15P
|
NEMA 5-15P*2
|
NEMA 5-15P
|
NEMA 5-15P*2
|
|||
|
Socket
|
NEMA 5-15R
|
NEMA 5-15R*2
|
NEMA 5-15R
|
NEMA 5-15R*2
|
|||
|
LED Red
|
Under 90V or Over 140V AC
|
|
|
|
|||
|
LED Blue
|
Ready
|
|
|
|
|||
|
LED White
|
Operation Normal
|
|
|
|
|||
|
Delay Time
|
3 Min.
|
|
|
|
|||
VoltDefender excels not only in performance but also boasts a refined aesthetic. Drawing inspiration from
Apple
, we've meticulously crafted VoltDefender with a sleek, minimalist design that emanates modernity and technological sophistication. This design not only complements your home decor but becomes an integral part of it. Unlike any other product on the market, VoltDefender embodies the perfect fusion of function and aesthetics. Placing it in your living room, office, or bedroom seamlessly integrates it with your environment, infusing a fresh ambiance. The design of VoltDefender elevates its quality, harmonizing with your home setting to add an element of elegance and distinctiveness to your life. Embrace the future of aesthetics and technology with VoltDefender, as it takes its place as a masterpiece in your living space, a testament to the marriage of form and function.
Why Do You Need a Voltage Protector?
Most electronics and appliances can’t handle voltage above 140V. When a power surge occurs, it causes a flow of electricity that spikes above 140 volts, resulting in an arc of electrical current. This arc generates heat that can damage electronic components and circuit boards. Voltage surge is a phenomenon beyond your control which unfortunately you can do nothing to prevent from occurring.
Top Causes of Power Surges
Abnormal voltage:
• Downed power lines
• Wiring problems
When the voltage is too high or too low, it will damage your electrical equipment. For example, the normal voltage is 110v, but when the voltage is too high, more than 140V, or too low and less than 80V, the electrical equipment may be damaged beyond repair.
Surge:
• Lightning strikes
• Turning high-powered electricity on and off rapidly Power surges are short electricity bursts, and the stronger they are, the more likely they can cause damage to electronic devices. Usually, due to lightning or sudden circuit switching in a short time, especially during the initial power start when power is recovered from blackout, these surges occur.
• Downed power lines
• Wiring problems
When the voltage is too high or too low, it will damage your electrical equipment. For example, the normal voltage is 110v, but when the voltage is too high, more than 140V, or too low and less than 80V, the electrical equipment may be damaged beyond repair.
Surge:
• Lightning strikes
• Turning high-powered electricity on and off rapidly Power surges are short electricity bursts, and the stronger they are, the more likely they can cause damage to electronic devices. Usually, due to lightning or sudden circuit switching in a short time, especially during the initial power start when power is recovered from blackout, these surges occur.
How Does a VP Work?
VOLTDEFENDER
®
monitors the voltage on the line and when the voltage is too high or too low, it protects the device that is plugged into it. When the voltage becomes normal, after a safe delay the electric power is restored, thereby protecting the appliances from harmful spikes.
Application
* Computers
* Dryers
* Freezers
* Refrigerators
* Stereo Systems
* TVs
* Washing Machines
* Dryers
* Freezers
* Refrigerators
* Stereo Systems
* TVs
* Washing Machines
Main Features
* Built-in delay time setting for 3mins.
* Provide lightning / surge protection AC voltage.
* Provide high / low voltage cut-off protection voltage protector.
* Microprocessor control guarantees better performance AC voltage.
* Provide lightning / surge protection AC voltage.
* Provide high / low voltage cut-off protection voltage protector.
* Microprocessor control guarantees better performance AC voltage.
Essential Protection for Your Home/ Office Electronic Devices
VOLTDEFENDER
®
use advanced technology and sophisticated electronic parts to detect the status of the voltage at any time; automatically cut off the harmful voltage and delay the restart time by 3 minutes. This is designed to protect your electronic devices from damage generated by these unexpected surges.

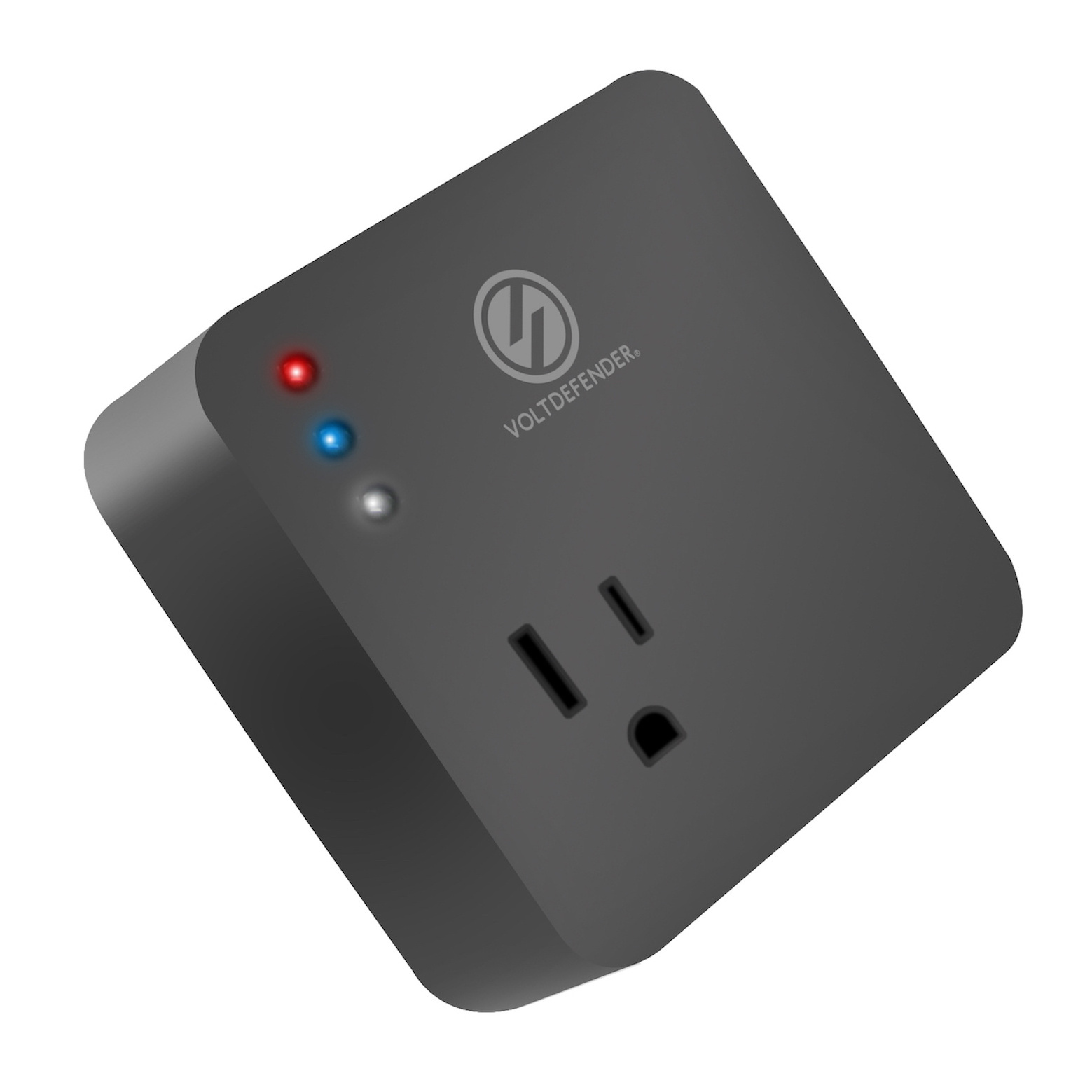

LED Description
LED Red: Under 90V or Over 140V AC
LED Blue: Ready
LED White: Operation Normal
Company Introduction
Established in 2008, Federal Technology is committed to designing and manufacturing reliable Voltage Protectors (VP) and electronic products for different industries. With factories strategically located in China, we are experienced in manufacturing dependable and quality power-related products and provide PCB assemblies and full box build services to world-wide customers.
Why Choose Federal Technology?
* OEM/ODM experience for over 10 years
* Well-trained workforce and engineering team
* Customized products to meet different applications
* High-quality products supported by a strict quality control system
* Well-organized manufacturing bases to meet worldwide growing demand
* Well-trained workforce and engineering team
* Customized products to meet different applications
* High-quality products supported by a strict quality control system
* Well-organized manufacturing bases to meet worldwide growing demand
