Quick Details
-
Place of Origin:
-
Guangdong, China
-
Receiver Working voltage:
-
DC6-30V
-
Receiver Frequency:
-
315Mhz / 433Mhz /433.92Mhz
-
Amount of storage remote controls:
-
20pcs
-
Working Mode:
-
Momentary Mode,Toggle Mode,Latching Mode
-
Receiver Weight:
-
70g
-
Application:
-
garage door,electric door,shutter door,expansion door,electric curtain
-
Receiver Size:
-
70*50*17mm
-
Remote Control Size:
-
58*35*10mm
-
Remote Control Weight:
-
25g
-
Remote Control Launching distance:
-
50-100 meters
Quick Details
-
Function:
-
LED indicator light, Electronic locks, garage door, shutter door, electric door, expansion door, electric curtain, signal transmission
-
Brand Name:
-
Diese
-
Model Number:
-
2402+EV1527
-
Place of Origin:
-
Guangdong, China
-
Receiver Working voltage:
-
DC6-30V
-
Receiver Frequency:
-
315Mhz / 433Mhz /433.92Mhz
-
Amount of storage remote controls:
-
20pcs
-
Working Mode:
-
Momentary Mode,Toggle Mode,Latching Mode
-
Receiver Weight:
-
70g
-
Application:
-
garage door,electric door,shutter door,expansion door,electric curtain
-
Receiver Size:
-
70*50*17mm
-
Remote Control Size:
-
58*35*10mm
-
Remote Control Weight:
-
25g
-
Remote Control Launching distance:
-
50-100 meters

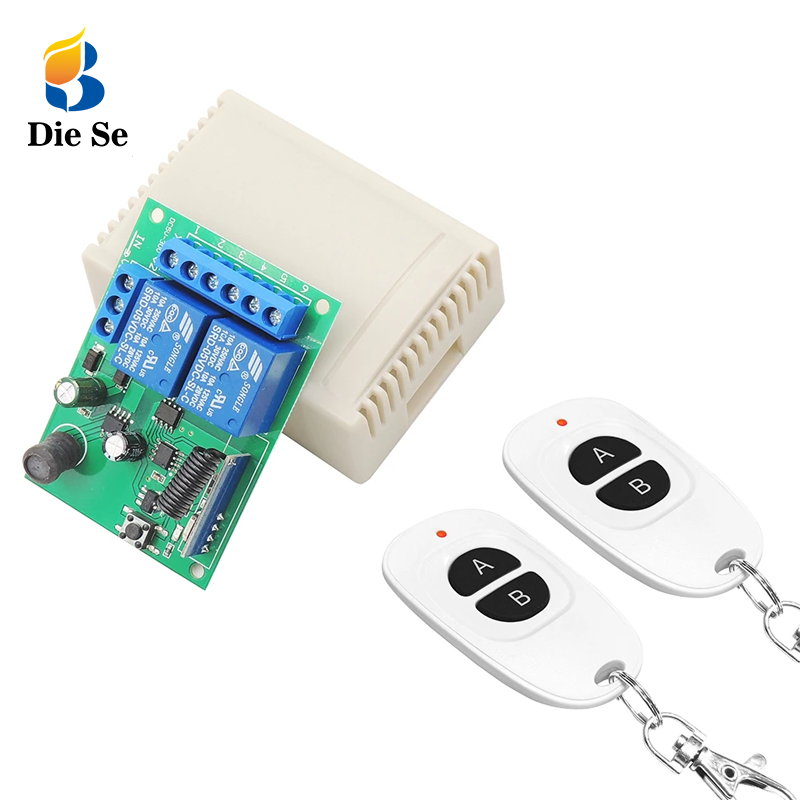

Product Description
|
Receiver
|
|
|
|
Working volt
|
DC6V-30V
|
|
|
Max Current
|
10A
|
|
|
Output/Input vlotage
|
1~250V
|
|
|
RF Frequency
|
315Mhz / 433Mhz /433.92Mhz
|
|
|
Range
|
0-50meters(open space)
|
|
|
Relay Board Size
|
67*49*16mm
|
|
|
Relay Plastic Box
|
75*54*25mm
|
|
|
Quiescent Current
|
<5MA
|
|
|
Receiving Sensitivity
|
>97dbm
|
|
|
Amount of storage remote controls
|
20pcs
|
|
|
Support encoding
|
1527 Learning code /2262 fixed code
|
|
|
RF Operating mode
|
ASK superheterodyne wireless reception
|
|
|
Working Mode
|
Momentary Mode,Toggle Mode,Latching Mode.
|
|
|
Remote Controls
|
|
|
|
Remote Control size
|
58*35*10mm
|
|
|
Remote Control Weight
|
25g
|
|
|
Remote Control Launching distance
|
50-100 meters
|
|
|
Certification
|
CE/FCC/RoHS/UKCA
|
|
Operation Mode
●Momentary Mode:
1. Press and hold one button, relay "1" will turn on;
2. Release the button, this relay "1" will turn off.
● Toggle Mode:
1. Press "A" key, relay "1" will turn on;
2. Press "A" key again, this relay "1" will turn off.
● Latched mode (This mode requires a remote control with at least 3 buttons or more):
1.Press "A" key, relay "1" will turn on;
2.Press "B" key, relay "2" will turn on, at the same time relay "1" will turn off.
3.Press "C" key, Both relays "1" and "2" will turn off.
How to set up
1.Memontary Mode: Press learning button on the switch 1 time,press any remote button 1 time,succeed
2.Toggle Mode: Press learning button on the switch 2 times,press any remote button 1 time,succeed
3.Latched mode: Press learning button on the switch 3 times,press A button 1 time,press B button 1 time,succeed
Reset
1.Press learning button 8 times to clean data,then all remotes can not control this receiver
●Momentary Mode:
1. Press and hold one button, relay "1" will turn on;
2. Release the button, this relay "1" will turn off.
● Toggle Mode:
1. Press "A" key, relay "1" will turn on;
2. Press "A" key again, this relay "1" will turn off.
● Latched mode (This mode requires a remote control with at least 3 buttons or more):
1.Press "A" key, relay "1" will turn on;
2.Press "B" key, relay "2" will turn on, at the same time relay "1" will turn off.
3.Press "C" key, Both relays "1" and "2" will turn off.
How to set up
1.Memontary Mode: Press learning button on the switch 1 time,press any remote button 1 time,succeed
2.Toggle Mode: Press learning button on the switch 2 times,press any remote button 1 time,succeed
3.Latched mode: Press learning button on the switch 3 times,press A button 1 time,press B button 1 time,succeed
Reset
1.Press learning button 8 times to clean data,then all remotes can not control this receiver
